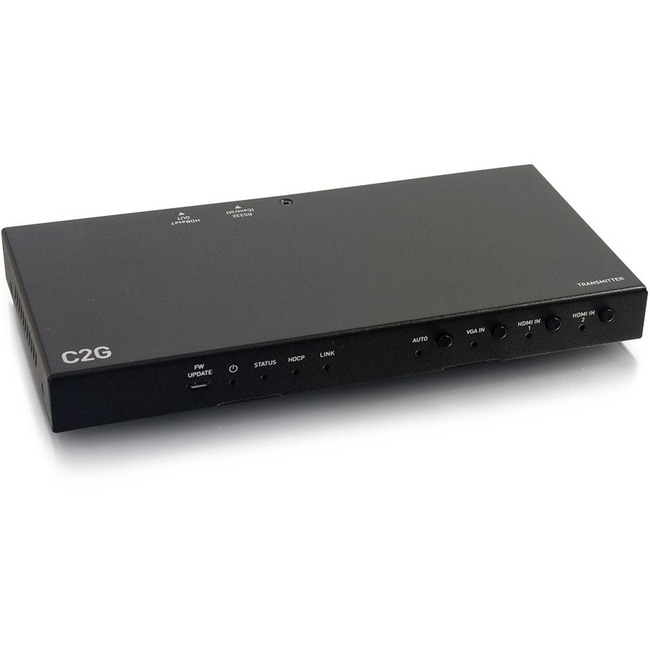

C2G Dual HDMI+VGA Switch Box TX
C2G Dual HDMI+VGA Switch Box TX - 3 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x USB - 2 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a
| $303.58 |
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- Supports VGA resolutions up to 1920x1200 at 60Hz
- Supports automatic switching between input sources
- HDCP 2.2 compliant, to create a secure connection between the source and display
- All input audio source EDIDs are fixed at PCM 2CH
- HDMI input EDIDs are copied from HDBaseT receiver (limited below 4K 30Hz)
- VGA input EDID is fixed at 1080p 60Hz
- All HDMI and VGA EDIDs can be configured by API CMD
- Automatic CEC command to Power on/off display device, by detecting input signal status
Manufacturer:
C2G
Product ID:
100006
Item:
C2G30018
UPC Code:
757120300182
Our Part #
9FZ139
Condition
New
$303.58EA
Availability
Only 295 Left In Stock
You may be also interested
Product description
C2G Dual HDMI+VGA Switch Box TX - 3 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x USB - 2 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a
3 Input Device - 230 ft Range - 1 x Network (RJ-45) - 1 x USB - 2 x HDMI In - 1 x VGA In - 4K UHD - Twisted Pair - Category 6a
Specifications
Number of Input Devices Supported
3
Transmitter Depth
3.70"
Transmitter Height
0.79"
Transmitter Width
7.67"
UPC Alternates
757120300182
Connectivity technology
Wired
Country of origin
China
Graphics Modes
4K UHD
Limited Warranty
5 Year
Manufacturer
C2G
Manufacturer Part Number
C2G30018
Manufacturer Website Address
http://www.cablestogo.com
Marketing Information
The Dual 4K HDMI HDBaseT + VGA 3.5mm and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard cabling.
This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant making sure that the connection from the source is secure. With bi-directional PoC support one power adapter at either transmitter or receiver side can power both units so no additional power adapter is required allowing for greater flexibility in installations. The USB Micro-B input supports necessary firmware updates. Advanced users can control one-way IR pass through from the transmitter to the connected receiver and also control and configure both local and remote devices via RS232.
Marketing Information
The Dual 4K HDMI HDBaseT + VGA 3.5mm and RS232 over Cat Switching Extender Box Transmitter - 4K 60Hz allows 4K HDMI or VGA sources to be extended using a single Cat6a Ethernet cable. This is an ideal solution where video and audio needs to be extended to displays in conference rooms classrooms lecture halls and many other installation needs that are far beyond the length limitations of standard cabling.
This transmitter extends HDMI and VGA signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p VGA up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant making sure that the connection from the source is secure. With bi-directional PoC support one power adapter at either transmitter or receiver side can power both units so no additional power adapter is required allowing for greater flexibility in installations. The USB Micro-B input supports necessary firmware updates. Advanced users can control one-way IR pass through from the transmitter to the connected receiver and also control and configure both local and remote devices via RS232.
Note:Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled is run near other high-frequency signaling cables or in high EMI/RFI environments
Maximum Operating Distance
230 ft
Media Type Supported
Twisted Pair
Number of HDMI Inputs
2
Number of Network (RJ-45) Ports
1
Product color
Black
Product Name
Dual HDMI HDBaseT + VGA RS232 Over Cat Switching Extender Transmitter
Product Name
Dual HDMI+VGA Switch Box TX
Product Type
Video Extender Transmitter
Twisted Pair Cable Standard
Category 6a
USB
Yes
