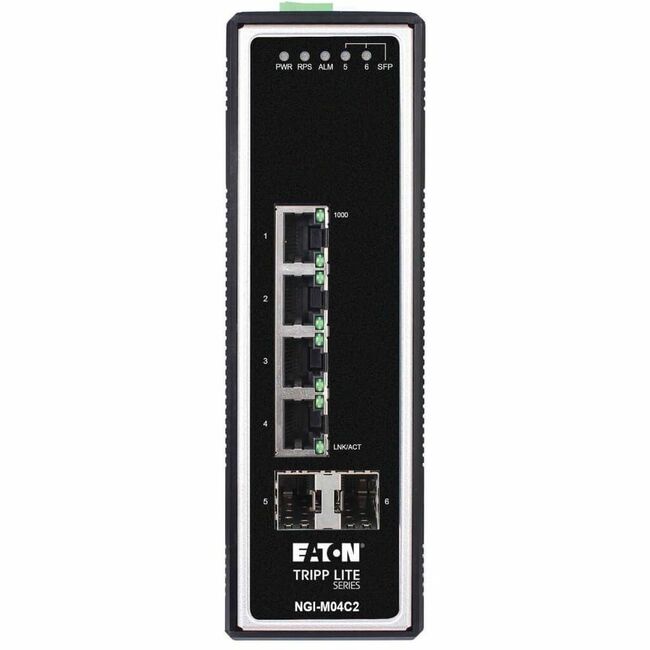

Tripp Lite NGI-M04C2 Ethernet Switch
Tripp Lite NGI-M04C2 Ethernet Switch - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - 10 W Power Consumption - Optical Fiber, Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty
| $311.42 | Retail $432.00 |
- 4 auto-negotiable RJ45 and 2 GbE SFP ports connect devices over a LAN
- Industrial-grade switch supports operating temperature range of -40° to 75°C
- Easy-to-read LEDs indicate connection and activity status for each port
- CLI or web management allows monitoring and control of each connected device
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 3-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
100307
Item:
NGI-M04C2
UPC Code:
037332266590
Our Part #
9UZ630
Condition
New
$311.42EA
$432.00
$432.00
Availability
Only 120 Left In Stock
Product description
Tripp Lite NGI-M04C2 Ethernet Switch - 4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - 10 W Power Consumption - Optical Fiber, Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty
4 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 100Base-FX, 1000Base-X, 1000Base-SX/LX - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - 10 W Power Consumption - Optical Fiber, Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty
Specifications
Product Material
Aluminum
Shared SFP Slot
No
Total Number of Network Ports
4
UPC Alternates
037332266590
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
4.7"
Environmental Certification
REACH
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP (mini-GBIC)
Form factor
DIN Rail Mountable
Height
6.3"
Input voltage
57 V DC
Input voltage
20 V DC
Layer Supported
2
Limited Warranty
3 Year
Manageable
Yes
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
NGI-M04C2
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
4-Port Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Four auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to the devices designated to receive it which improves the efficiency and potential throughput of the network. The NGI-M04C2 also features two GbE SFP slots for uplinking data to other switches via optical fiber or copper. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity.
Protective Metal Housing Built to Last in Harsh Environments
The compact NGI-M04C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to industrial automation government military oil and gas mining and outdoor applications as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Monitors and Controls Devices via CLI and Web Configuration
The NGI-M04C2 supports MAC address auto-learning and auto-aging for efficient routing as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports QoS IGMP snooping SFP DDMI and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control allows smooth transmission of large files.
Works with the Most Popular Web Browsers
The NGI-M04C2 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards rather than system software dependencies the NGI-M04C2 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Pre-Installed DIN Rail Clip Allows for Convenient Installation
The device may be DIN mounted using the pre-installed rail clip which mounts firmly to any standard 35 mm DIN rail. Providing seamless operation in the event of power dips or failures the switch features redundant 6-pin 20-57VDC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
TAA-Compliant for GSA Schedule Purchases
The NGI-M04C2 is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
1000Base-X
Network Technology
100Base-FX
Network Technology
10/100/1000Base-T
Network Technology
1000Base-SX/LX
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3u
Networking standards
IEEE 802.3z
Networking standards
IEEE 802.3ab
Networking standards
IEEE 802.1p
Networking standards
IEEE 802.3
Package Contents
- NGI-M04C2 Ethernet Switch
- DIN Rail-mounting Clip (Pre-installed)
Plug/Connector Type
Terminal Block
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Port/Expansion Slot Details
2 x Gigabit Ethernet Uplink
Power consumption
10 W
Product Name
NGI-M04C2 Ethernet Switch
Product Type
Ethernet Switch
Weight (Approximate)
1.68 lb
Width
2"
