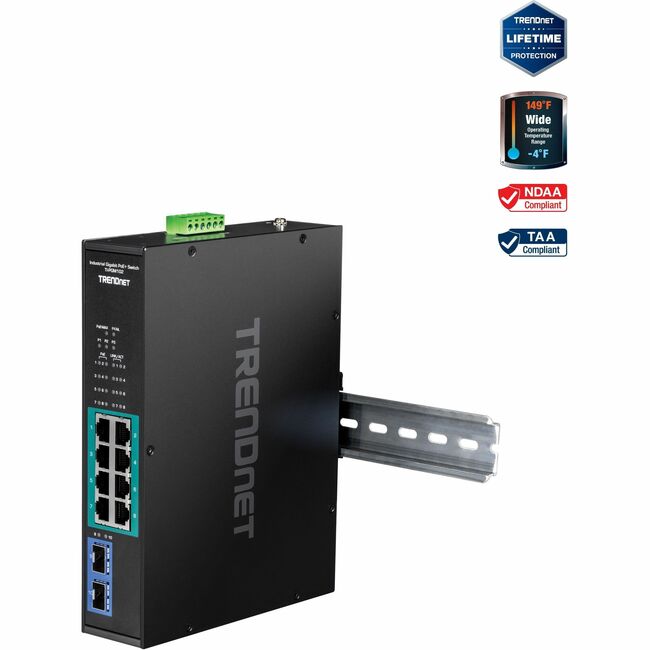

TRENDnet 10-Port Industrial Gigabit PoE+ Switch, Extreme Temperature Range -20° - 65°C (-4° - 149°F), DINRail Switch, 50-55V DC, 8 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, TI-PGM102, Black
TRENDnet 10-Port Industrial Gigabit PoE+ Switch, Extreme Temperature Range -20° - 65°C (-4° - 149°F), DINRail Switch, 50-55V DC, 8 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, TI-PGM102, Black - 8 Ports - Gigabit Ethernet - 1000Base-FX, 1000Base-T - 2 Layer Supported - 2 SFP Slots - AC/DC - 6.30 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
| $244.28 | Retail $249.99 |
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Manufacturer:
TRENDnet
Product ID:
100620
Item:
TI-PGM102
UPC Code:
710931162202
Our Part #
04VL88
Condition
New
$244.28EA
$249.99
$249.99
Availability
Currently out of stock
You may be also interested
Product description
TRENDnet 10-Port Industrial Gigabit PoE+ Switch, Extreme Temperature Range -20° - 65°C (-4° - 149°F), DINRail Switch, 50-55V DC, 8 x Gigabit PoE+ Ports, 2 x Gigabit SFP Slots, TI-PGM102, Black - 8 Ports - Gigabit Ethernet - 1000Base-FX, 1000Base-T - 2 Layer Supported - 2 SFP Slots - AC/DC - 6.30 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
8 Ports - Gigabit Ethernet - 1000Base-FX, 1000Base-T - 2 Layer Supported - 2 SFP Slots - AC/DC - 6.30 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable
Specifications
Network (RJ-45)
Yes
PoE Budget
240 W
Product Material
Metal
Total Number of Network Ports
8
UPC Alternates
710931162202
Country of origin
Taiwan
Depth
6.3"
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP (mini-GBIC)
Form factor
Wall Mountable
Form factor
DIN Rail Mountable
Frequency
50 Hz
Frequency
60 Hz
Height
1.8"
Input voltage
55 V DC
Input voltage
230 V AC
Input voltage
120 V AC
Input voltage
50 V DC
Layer Supported
2
Limited Warranty
Lifetime
Manufacturer
TRENDnet
Manufacturer Part Number
TIPGM102
Manufacturer Part Number
TI-PGM102
Manufacturer Website Address
http://www.trendnet.com
Marketing Information
DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (Power supply sold separately (models: TI-S24052 TI-S24048). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.
Marketing Information
- DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point
- POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power.
- DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets.
- EXTREME TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments.
- REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000).
- ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power
- TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.
TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F) model TI-PGM102 has eight gigabit PoE+ ports with a 240W PoE power budget plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh industrial environments.
PoE Power
A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault Tolerance
Features redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened Design
Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
NETWORKING SOLUTION | FEATURES | Full PoE+ Power Budget
Supplies up to 30W of PoE/PoE+ power per port with a 240W PoE power budget
Switching Capacity
20Gbps switching capacity
Jumbo Frame
Sends larger packets or Jumbo Frames (up to 9KB) for increased performance
Network Ports
8 x Gigabit PoE+ ports and 2 x Gigabit slots
Redundant Power
Redundant power inputs with overload current protection (power supply sold separately models: TI-S24048 48VDC3000)
Wide Operating Temperature
Rated for an operating temperature range of -20° - 65°C (-4° - 149°F)
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall-mount hardware
Alarm Relay
Alarm relay triggered by power failure of primary and/or redundant power
Grounding Point
Grounding point protects equipment from external electrical surges
Marketing Information
DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (Power supply sold separately (models: TI-S24052 TI-S24048). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY.
Marketing Information
DEVICE INTERFACE: 8 x Gigabit PoE+ Ports; 2 x Gigabit SFP Slots; 6-Pin Removable Terminal Block; DIN-Rail Mount; LED Indicators; Wall Mount; Grounding Point POE+ POWER & SWITCHING CAPACITY: The industrial PoE+ switch is equipped with 20Gbps switching capacity and a 240W @56V DC PoE power budget supplies up to eight Power over Ethernet devices with PoE+ power. WIDE TEMPERATURE SWITCH: The metal hardened IP30 rated DIN-Rail Gigabit PoE+ switch is equipped with a rugged IP30 rated enclosure and designed to withstand a wide temperature range 20° - 65°C (-4° - 149°F) for harsh environments. DIN-RAIL & WALL MOUNT KIT: This 10-Port Gigabit PoE+ switch comes with an integrated DIN-Rail mount and mounting hardware brackets. REDUNDANT POWER: The 10-port network switch has dual redundant power inputs with overload current protection (power supply sold separately: models:TI-S12048 / 48VDC3000). ALARM RELAY: The DIN-Rail switch alarm output is triggered by power failure of primary and/or redundant power TRENDnet LIFETIME WARRANTY: The TI-PGM102 Industrial Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer WARRANTY. NDAA / TAA compliant (U.S. and Canada only)
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
1000Base-T
Network Technology
1000Base-FX
Networking standards
IEEE 802.3af
Networking standards
IEEE 802.3x
Networking standards
IEEE 802.3at
Networking standards
IEEE 802.3
Networking standards
IEEE 802.3z
Networking standards
IEEE 802.3u
Networking standards
IEEE 802.3ab
Package Contents
- 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
Plug/Connector Type
Terminal Block
Port/Expansion Slot Details
2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
8 x Gigabit Ethernet PoE+
Power consumption
6.30 W
Power source
AC/DC
Product Model
TI-PGM102
Product Name
10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
Product Type
Ethernet Switch
Weight (Approximate)
2.43 lb
Width
8.3"
