Black Box DIN Rail Repeater with Opto-Isolation, RS-232
Black Box DIN Rail Repeater with Opto-Isolation, RS-232
| $249.47 | Retail $269.95 |
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
102513
Item:
ICD103A
UPC Code:
700604200003
Our Part #
UP7695
Condition
New
$249.47EA
$269.95
$269.95
Availability
Only 3 Left In Stock
Product description

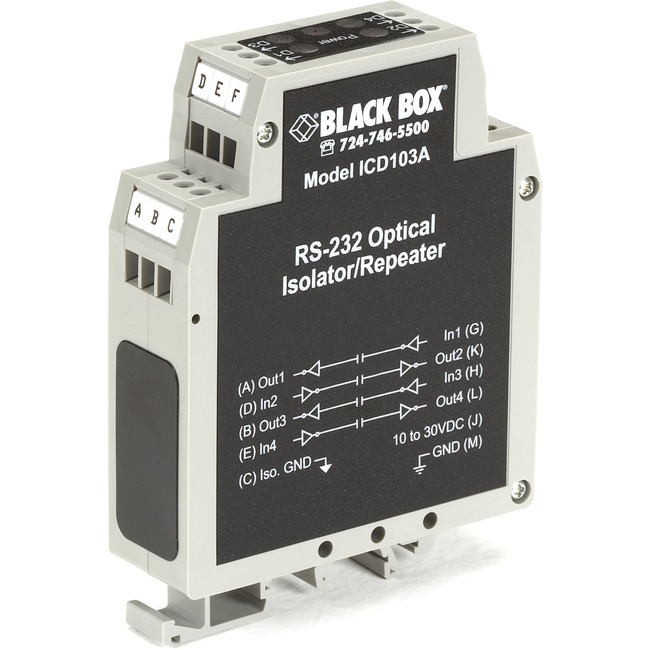

Black Box DIN Rail Repeater with Opto-Isolation, RS-232
Specifications
UPC Alternates
700604200003 822088100577 995477586686
Additional Information
- Isolation - 2000 VDC for 1 minute
- Operating Environment - Temperature: -40 to +176° F (-40 to +80°C);Humidity: Up to 95% noncondensing
- Operation - RS-232: Half- or full-duplex
- Speed - Up to 115.2 kbps
- CE Approval - Yes
- Connectors - (2) 6-position terminal blocks
- Indicators - (5) LEDs: (4) data flow direction (1) power
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
United States
Depth
3.9"
Height
1"
Input voltage
30 V DC
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
ICD103A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Quick Facts
- Acts as repeaters isolators and extenders.
- T Isolates the TD RD RTS and CTS channels supports 115.2-kbps speeds on all four channels and extends the RS-232 signal beyond 50 feet (15.2 m).
Protect equipment from ground loops and spikes while optically isolating it from the rest of a network and expanding a system beyond node or distance limits.
Product Name
DIN Rail Repeater with Opto-Isolation RS-232
Product Type
Signal Repeater
Width
2.9"
