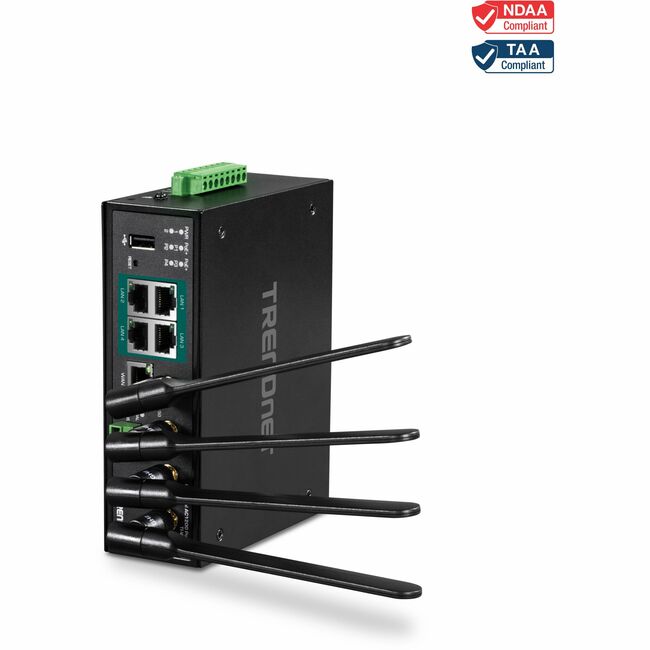

TRENDnet TI-WP100 Wi-Fi 5 IEEE 802.11ac Ethernet Wireless Router
TRENDnet TI-WP100 Wi-Fi 5 IEEE 802.11ac Ethernet Wireless Router - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 5 x Antenna(4 x External) - 145.88 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - USB - PoE Ports - Gigabit Ethernet - VPN Supported - DIN Rail Mountable
| $635.15 |
- Industrial AC1200 Dual-Band Wireless
- 4 x Gigabit PoE+ ports, 1 x Gigabit WAN port
- PoE power budget: 120W@48V DC input, 120W@24V DC input
- PoE alive check restarts unresponsive PoE powered devices
- PoE power scheduling, power limit, and port priority
- Hardened IP30 rated metal housing
- Operating temperature range of -30° - 70° C (-22° - 158° F)
- Up to 8 SSIDs per band
- SSID to VLAN mapping
- Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
Manufacturer:
TRENDnet
Product ID:
118094
Item:
TI-WP100
UPC Code:
710931161632
Our Part #
8TN633
Condition
New
$635.15EA
Availability
Only 10 Left In Stock
Product description
TRENDnet TI-WP100 Wi-Fi 5 IEEE 802.11ac Ethernet Wireless Router - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 5 x Antenna(4 x External) - 145.88 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - USB - PoE Ports - Gigabit Ethernet - VPN Supported - DIN Rail Mountable
Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 5 x Antenna(4 x External) - 145.88 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - USB - PoE Ports - Gigabit Ethernet - VPN Supported - DIN Rail Mountable
Specifications
Firewall Type
PAT
Firewall Type
NAT
Firewall Type
SPI
Network Band
Dual Band
Total Wireless Transmission Speed
145.88 MB/s
UPC Alternates
710931161632
Wi-Fi Generation
Wi-Fi 5
Wireless LAN Standard
IEEE 802.11ac
Broadband Transmission Technology
Ethernet
Country of origin
Taiwan
Depth
4.7"
Encryption Standard
RSA
Encryption Standard
SHA-256
Encryption Standard
SHA-1
Encryption Standard
WPA-PSK
Encryption Standard
AES (128-bit)
Encryption Standard
MD4
Encryption Standard
DES
Encryption Standard
MD5
Encryption Standard
AES (192-bit)
Encryption Standard
Blowfish
Encryption Standard
3DES
Encryption Standard
AES (256-bit)
Encryption Standard
WPA2-PSK
Encryption Standard
SHA-512
Ethernet Technology
Gigabit Ethernet
Form factor
DIN Rail Mountable
Height
2"
ISM Maximum Frequency
2.40 GHz
Limited Warranty
3 Year
Manufacturer
TRENDnet
Manufacturer Part Number
TI-WP100
Manufacturer Website Address
http://www.trendnet.com
Marketing Information
- Industrial AC1200 Dual-Band Wireless
- 4 x Gigabit PoE+ ports 1 x Gigabit WAN port
- PoE power budget: 120W@48V DC input 120W@24V DC input
- PoE alive check restarts unresponsive PoE powered devices
- PoE power scheduling power limit and port priority
- Hardened IP30 rated metal housing
- Operating temperature range of -30° - 70° C (-22° - 158° F)
- Up to 8 SSIDs per band
- SSID to VLAN mapping
- Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
- 802.1Q/Port-based VLAN support
- Inter-VLAN routing
- IPsec & SSL VPN (OpenVPN) support
- Redundant power inputs with overload current protection
- Digital input/output
- Modbus serial port and virtual COM support
- Power supply sold separately (models: TI-S12048 TI-S12024 TI-S24048)
- Optional Magnetic WiFi Antenna base model TEW-LB101 (sold separately)
TRENDnet's Industrial AC1200 Wireless Dual Band Gigabit PoE+ Router model TI-WP100 features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867Mbps Wireless AC network and a 300Mbps Wireless N network. It supports dual-WAN hybrid connections (Ethernet for load balancing or fail-over modes and encrypted Virtual Private Network (VPN) access for remote users. Four gigabit PoE+ ports enable users to power access points IP cameras and other PoE+ devices directly from the router. Supports both PoE (802.3af) and PoE+ (802.3at) devices with a 120W PoE power budget. The Industrial AC1200 gigabit router is equipped with an IP30 rated metal housing and designed to operate within a wide temperature range of -30° - 70° C (-22° - 158° F) for industrial environments.
Advanced traffic management controls troubleshooting and SNMP monitoring support make this a powerful solution for SMB networks. This wireless router features advanced management QoS VLAN VPN and other capabilities to ensure optimal performance scalability and protection of your network. Intelligently manage your offices' web access with our advanced contenting filtering tool increase employee productivity and finally take control of your internet.
Number of Broadband (RJ-45) Ports
1
Number of Network (RJ-45) Ports
4
Package Contents
- Industrial AC1200 Wireless Gigabit PoE+ Router
- Quick Installation Guide
- 4 x detachable dual-band antennas
- Network cable (1.5m / 5 ft.)
- 1 x 8-pin removable terminal block (Power & digital input/output)
- 1 x 4-pin removable terminal block (Serial)
- DIN-Rail mounting bracket
Product Name
Industrial AC1200 Wireless Gigabit PoE+ Router
Product Type
Wireless Router
Total Number of Antennas
5
UNII Maximum Frequency
5 GHz
VPN Supported
Yes
Weight (Approximate)
2.40 lb
Width
6.3"
