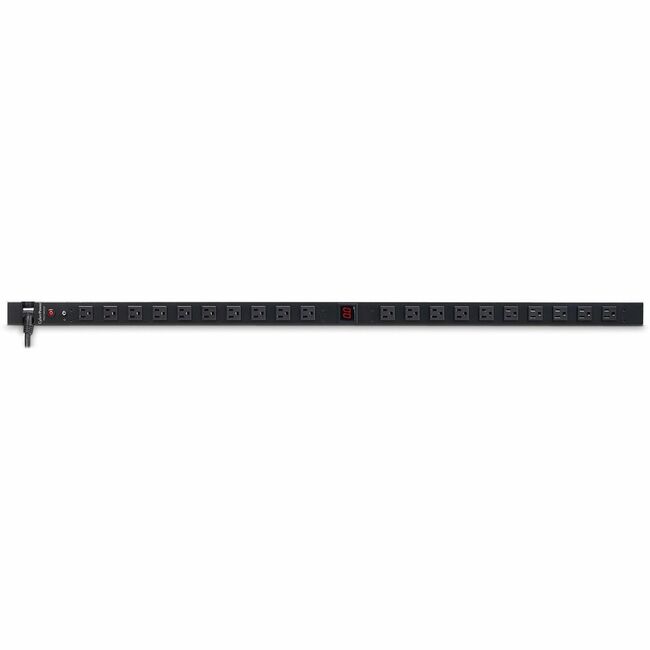

CyberPower PDU15MV20F 100 - 125 VAC 15A Metered PDU
CyberPower PDU15MV20F 100 - 125 VAC 15A Metered PDU - 20 Outlets, 10 ft, NEMA 5-15P, Vertical, 0U, Lifetime Warranty
| $196.26 |
- Metered PDU ; Enclosure Construction: Steel
- 20 NEMA 5-15R (20 Front) output receptacles
- 120V AC - 50/60Hz - 15-amp electrical capacity with circuit breaker
- 48 inch 0U Vertical Rack Mount - Rugged industrial metal housing
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
118554
Item:
PDU15MV20F
UPC Code:
115971193504
Our Part #
9GM138
Condition
New
$196.26EA
Availability
Currently out of stock
Product description
CyberPower PDU15MV20F 100 - 125 VAC 15A Metered PDU - 20 Outlets, 10 ft, NEMA 5-15P, Vertical, 0U, Lifetime Warranty
20 Outlets, 10 ft, NEMA 5-15P, Vertical, 0U, Lifetime Warranty
Specifications
Mounting Orientation
Vertical
PDU Type
Metered
Phase
Single Phase
Receptacle Detail
20 x NEMA 5-15R
UPC Alternates
115971193504 649532901081 818215021563 818242885220
Brand Name
CyberPower
Depth
2.3"
Energy Star
No
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
48"
Input current
15 A
Input voltage
120 V AC
Input Voltage Range
100 V AC - 125 V AC
Limited Warranty
Lifetime
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
PDU15MV20F
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
The CyberPower PDU15MV20F a 20-outlet (front) 0U vertical rackmount metered power distribution unit (PDU) provides 100 - 125 V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications the PDU15MV20F has rugged industrial-grade metal housing and a 10-foot AC power cord. It supports vertical horizontal and wall mount installation. The PDU15MV20F comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers equipment and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers equipment and connected devices.
Long Input Power Cord
Reaches distant power sources allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical under counter and wall mount) 1U (horizontal vertical under counter and wall mount) and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU Cord Retention Tray User Manual Screw Kit Cord Clip Kit Horizontal Mounting Brackets Vertical Mounting Brackets Product Registration Card
Mount Type
Rack-mountable
Package Contents
- PDU15MV20F 20-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Plug/Connector Type
NEMA 5-15P
Product Name
PDU15MV20F 20-Outlets PDU
Product Series
Metered PDU
Product Type
PDU
Protection Type
Overload Protection
Receptacle Type
NEMA 5-15R
Weight (Approximate)
8 lb
Width
17.5"
