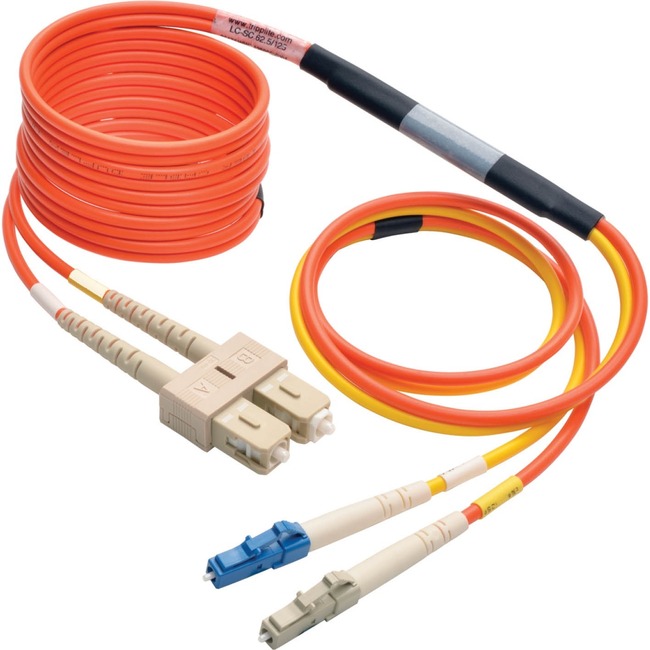

Tripp Lite 3M Fiber Optic Mode Conditioning Patch Cable LC/SC 10' 10ft 3 Meter
Tripp Lite 3M Fiber Optic Mode Conditioning Patch Cable LC/SC 10' 10ft 3 Meter - 10 ft Fiber Optic Network Cable for Network Device, Router, Switch - First End: 2 x LC Male Network - Second End: 2 x SC Male Network - Patch Cable - 62.5/125 µm, 8.3/125 µm - Orange
| $50.47 | Retail $72.00 |
- Converts Singelemode LC GBIC to Multimode SC Patch Panel
- 62.5/125 and 8.3/125
- Run 1000Base-LX Gigabit Ethernet over MMF by offsetting signal loss
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
121094
Item:
N425-03M
UPC Code:
037332167798
Our Part #
1E5324
Condition
New
$50.47EA
$72.00
$72.00
Availability
Only 28 Left In Stock
Product description
Tripp Lite 3M Fiber Optic Mode Conditioning Patch Cable LC/SC 10' 10ft 3 Meter - 10 ft Fiber Optic Network Cable for Network Device, Router, Switch - First End: 2 x LC Male Network - Second End: 2 x SC Male Network - Patch Cable - 62.5/125 µm, 8.3/125 µm - Orange
10 ft Fiber Optic Network Cable for Network Device, Router, Switch - First End: 2 x LC Male Network - Second End: 2 x SC Male Network - Patch Cable - 62.5/125 µm, 8.3/125 µm - Orange
Specifications
Connector on First End Details
2 x LC Network - Male
Connector on Second End Details
2 x SC Network - Male
Connector Type on First End
LC Network - Male
Connector Type on Second End
SC Network - Male
UPC Alternates
037332167798
Brand Name
Tripp Lite
Cable Characteristic
Patch Cable
Cable length
10 ft
Cable type
Fiber Optic
Color
Orange
Connector on First End
2 x LC Male Network
Connector on First End
LC Male Network
Connector on Second End
SC Male Network
Connector on Second End
2 x SC Male Network
Core/Cladding Diameter
8.3/125 µm
Core/Cladding Diameter
62.5/125 µm
Country of origin
China
Device Supported
Switch
Device Supported
Router
Device Supported
Network Device
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Fiber Optic Mode
Single-mode
Fiber Optic Mode
Multi-mode
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N425-03M
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lites Mode Conditioning Cables are designed for use in Gigabit Ethernet 1000BASE-LX applications. N425-Series cables convert a Singlemode LC GBIC to an SC Multimode patch bay. They are fully compliant with IEEE 802.3z application standards. Mode Conditioning Cables are needed in applications where high-speed Gigabit 1000BASE-LX routers and switches are being deployed into existing Multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals caused by Differential Mode Delay (DMD) effects severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.
Product color
Orange
Product Name
3M/10ft Fiber Optic SMF-MMF LC
Product Type
Network Cable
