Black Box Ethernet Switch

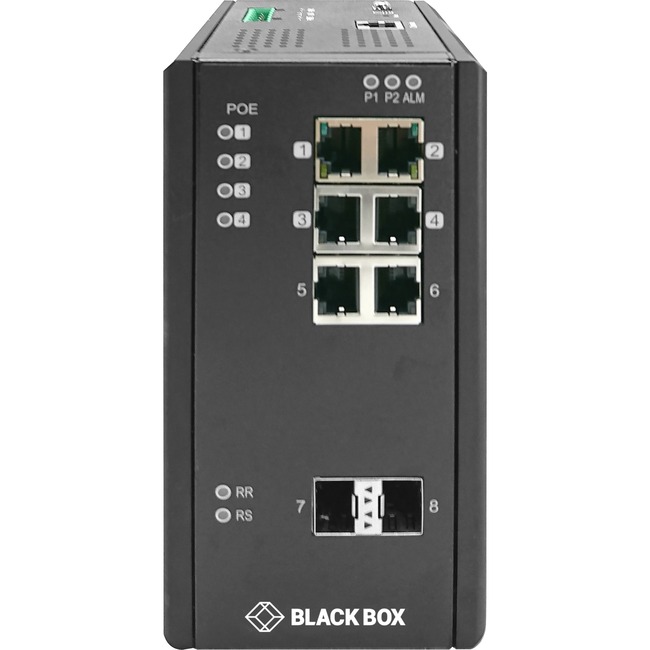

Black Box Ethernet Switch - 6 Ports - Manageable - Gigabit Ethernet - 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 1 Year Limited Warranty
| $882.06 | Retail $999.88 |
- Provides (4) 10/100/1000-Mbps RJ-45 Power over Ethernet ports, two 10/100/1000-Mbps copper ports and two multispeed SFP slots.
- PoE 802.3af and PoE+ 802.3at compatible. Delivers up to 30W per port. Dependent on the power supply used.
- Use to connect and power security cameras and access points.
- Rated for extreme temperatures of -40 to +75° C.
- Managed switch supports LACP, Spanning Tree, and ring fail-over for redundancy and resiliency.
- Dual DC power inputs for redundancy.
- IP30-rated housing is also rated for shock and vibration protection.
- Manage through a Web interface, SNMP or command-line interface (CLI).
- DIN rail or wall mount.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
123231
Item:
LIE1082A
UPC Code:
822088131977
Our Part #
43222612
Condition
New
$882.06EA
$999.88
$999.88
Availability
Only 72 Left In Stock
Product description
Black Box Ethernet Switch - 6 Ports - Manageable - Gigabit Ethernet - 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 1 Year Limited Warranty
6 Ports - Manageable - Gigabit Ethernet - 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 2 SFP Slots - Power Supply - Twisted Pair, Optical Fiber - Wall Mountable, DIN Rail Mountable - 1 Year Limited Warranty
Specifications
Shared SFP Slot
No
Total Number of Network Ports
6
UPC Alternates
822088131977
Brand Name
Black Box
Country of origin
Taiwan
Depth
2.3"
Environmental Certification
WEEE
Environmental Certification
RoHS
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP (mini-GBIC)
Form factor
DIN Rail Mountable
Form factor
Wall Mountable
Height
6"
Layer Supported
2
Limited Warranty
1 Year
Manageable
Yes
Manufacturer
Black Box Corporation
Manufacturer Part Number
LIE1082A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
PoE+ for convenience.
This switch has four 10/10/1000-Mbps RJ-45 PoE/PoE+ copper ports and 2 10/100/1000-Mbps copper ports. This way you can power distant access points security cameras building access devices and industrial equipment in harsh environments where it's impractical to run electrical wires. The switch features full wire-speed forwarding rates auto-negotiates for network speeds and Auto-MDI/MDI-X eliminating the need for crossover cables.
The switch also has two 100/1000 Ethernet SFP slots for network flexibility and scalability. You can extend your network over multimode or single-0mode fiber at distances up to 80 km depending on the SFP you choose.
Extreme applications.
Encased in an IP30-rated metal case this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:- Security and surveillance particularly to backhaul IP security camera data.
- Military applications especially in ships and other vehicles.
- Factory automation for controlling machinery PLCs motor drives sensors counters inspection cameras and packaging equipment.
- Oil and gas fields or remote equipment monitoring and control.
- Building automation for controlling HVAC and lighting systems.
Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. You'll also eliminate the need to send IT technicians on site-thus lowering costs.
The switch is fully manageable through SNMP a Web browser Telnet or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.
The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging MAC-based trunking IP-multicast IGMP snooping rapid spanning tree for redundancy. Plus it has 802.1x port-based authentication for security.
Fast failovers.
For redundancy the switch has two DC power inputs. If one power source fails the switch automatically falls over to the second power source. It offers a 20 millisecond or less failover. In addition an alarm will alert you in case of a power failure. The switch also gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP) Link Aggregation Control Protocol and a ring protocol.
Installation options.
The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-12 MDR-40-24 MDR-40-48 and SDR-120-48) are sold separately and will determine the amount of watts available for PoE operation. The switch also includes a serial cable (RJ-45/DB9) for the console connection.
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X
Package Contents
Port/Expansion Slot Details
2 x Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details
6 x Gigabit Ethernet Network
Power source
Power Supply
Product Type
Ethernet Switch
Weight (Approximate)
2.30 lb
Width
4.3"
