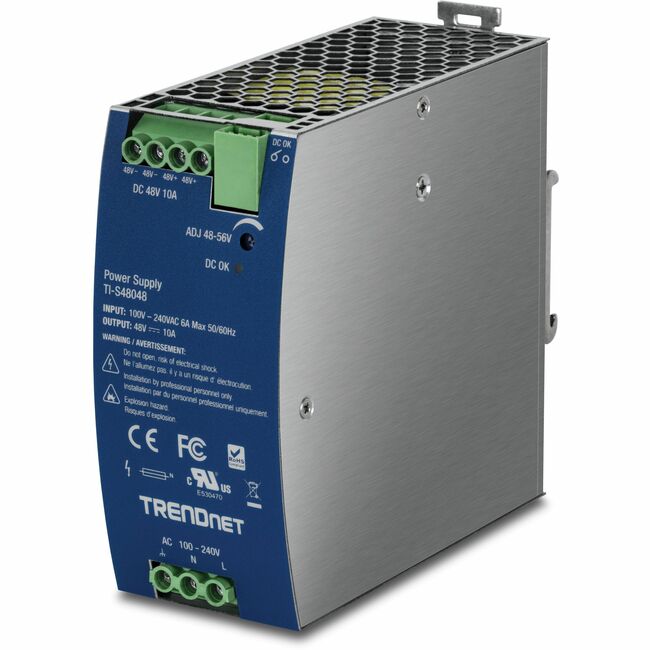

TRENDnet 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function, TI-S48048
TRENDnet 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function, TI-S48048 - 48V 480W Output Industrial
| $345.64 |
- Industrial power supply with integrated DIN-rail mount
- Provides up to 480W of power (48V DC, 10A)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.94)
- Cooling by free air convection
- Protections: Short circuit, overload, over voltage, over temperature
- UL 508 approved
- Built-in DC OK relay contact
- 100% full load burn-in test
Manufacturer:
TRENDnet
Product ID:
123777
Item:
TI-S48048
UPC Code:
710931161441
Our Part #
3DZ274
Condition
New
$345.64EA
Availability
Only 3 Left In Stock
You may be also interested
Product description
TRENDnet 480W, 48V DC, 10A AC to DC DIN-Rail Power Supply with PFC Function, TI-S48048 - 48V 480W Output Industrial
48V 480W Output Industrial
Specifications
UPC Alternates
710931161441
Additional Information
Certifications:
- CE
- UL 508CB 60950-1
- TUV EN60950-2
Country of origin
China
Efficiency
94%
Environmental Certification
China RoHS
Environmentally Friendly
Yes
Form factor
DIN Rail
Height
3"
Input voltage
230 V AC
Input voltage
120 V AC
Length
10"
Limited Warranty
3 Year
Manufacturer
TRENDnet
Manufacturer Part Number
TI-S48048
Manufacturer Website Address
http://www.trendnet.com
Marketing Information
- Industrial power supply with integrated DIN-rail mount
- Provides up to 480W of power (48V DC 10A)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.94)
- Cooling by free air convection
- Protections: Short circuit overload over voltage over temperature
- UL 508 approved
- Built-in DC OK relay contact
- 100% full load burn-in test
- -25° - 70° C (-13° - 158° F) operating temperature range
TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function model TI-S48048 supplies up to 480W (48V DC 10A) of power to industrial equipment such as PoE switches network cameras and WiFi access points. This DIN-Rail power supply comes with active PFC an integrated DIN-rail mount and overload current protection.
Industrial Applications
Power network devices for manufacturing general industrial warehousing surveillance and corporate applications.
480W Power
Provides up to 480W (48V DC 10A) of power for PoE devices such as switches network cameras and access points.
Operating Temperature
Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F).
PACKAGE CONTENTS
- TI-S48048 (Mean Well SDR-480-48)
Marketing Information
- Industrial power supply with integrated DIN-rail mount
- Provides up to 480W of power (48V DC 10A)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active Power Factor Controller (PF > 0.94)
- Cooling by free air convection
- Protections: Short circuit overload over voltage over temperature
- UL 508 approved
- Built-in DC OK relay contact
- 100% full load burn-in test
- -25° - 70° C (-13° - 158° F) operating temperature range
TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function model TI-S48048 supplies up to 480W (48V DC 10A) of power to industrial equipment such as PoE switches network cameras and WiFi access points. This DIN-Rail power supply comes with active PFC an integrated DIN-rail mount and overload current protection.
Industrial Applications
Power network devices for manufacturing general industrial warehousing surveillance and corporate applications.
480W Power
Provides up to 480W (48V DC 10A) of power for PoE devices such as switches network cameras and access points.
Operating Temperature
Designed for industrial environments with an operating temperature range of -25° - 70° C (-13° - 158° F).
PACKAGE CONTENTS
- TI-S48048 (Mean Well SDR-480-48)
Output power
480 W
Output voltage
48 V DC @ 10 A
Product Condition
New
Product Name
48V 480W Output Industrial
Product Type
Power Supply
Weight (Approximate)
3.53 lb
Width
8"
