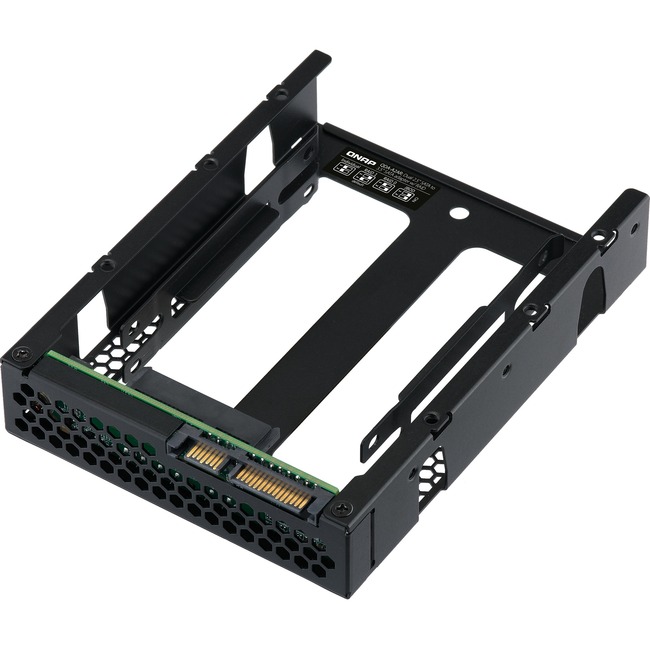

QNAP QDA-A2AR DAS Storage System

Use two 2.5-inch SATA drives in a single 3.5-inch SATA drive bay with RAID support for PC and NAS

The QDA-A2AR can accommodate two 2.5-inch SATA drives within a single 3.5-inch SATA drive bay. No software driver is required for the QDA-A2AR and it can be installed in a PC/workstation (Windows® Linux®) or QNAP NAS to flexibly add additional hard drives or SSDs to meet various storage needs.

Use two 2.5-inch SATA HDDs/SSDs (7mm to 9.5mm high) in a single 3.5-inch drive bay. (HDD/SSD sold separately)

Up to 6 Gb/s file transfer speeds. Can be the primary bootable device for PCs.

Choose a hardware RAID group with the disk mode switch.

Supports various RAID levels

The QDA-A2AR supports a variety of RAID configurations. Depending on your requirements you can use the bundled metal pin as disk mode switch tool to select your ideal RAID mode: Individual JBOD RAID 0 or RAID 1. Windows® users can use the QNAP External RAID Manager utility to view the RAID group status and disk health information.

A PC that supports SATA port multipliers can connect two SATA drives to a single SATA port allowing you to independently access each disk as separate storage space.

Half of the total storage capacity is used to store data and the other half keeps a copy of this data. This provides high data protection at the cost of only being able to use half the installed storage space.

Data is split amongst the drives. RAID 0 provides the fastest performance but does not protect data from drive failure.

All the drives are recognized as a single drive. This allows maximal storage utilization but provides no data protection.

Install in a PC/workstation for higher performance or data protection

When using two 2.5-inch drives instead of a single 3.5-inch drive in a PC/workstation (Windows® or Linux®) you can create a RAID 0 for enhanced performance or RAID 1 to add data redundancy for greater data protection. To deal with tasks that require intensive fast data transmission you can install high-speed SATA SSDs to achieve maximized performance and lower latency ideal for on-the-fly video editing and server-grade applications.

External RAID Manager for Windows users

The QNAP External RAID Manager utility allows Windows® users to view the drive status and RAID information of the QDA-A2AR. Firmware updates for the QDA-A2AR can also be managed with the External RAID Manager utility.

Install in QNAP NAS for efficient storage or SSD caching

The QDA-A2AR supports hardware RAID that will not consume CPU resources to help sustain optimal NAS performance. You can install one or more QDA-A2AR in a NAS to maximize the storage utilization of 3.5-inch drive bays. The QDA-A2AR can accommodate two SSDs to create an SSD volume for performance-demanding workflows or work in an efficient tiered-storage environment with Qtier. It can also boost IOPS performance when configuring SSD caching. RAID information and drive health of the QDA-A2AR can be monitored through the QTS Storage & Snapshots Manager.
