Tripp Lite N390-03M-4S-AP Fiber Optic Network Cable
Tripp Lite N390-03M-4S-AP Fiber Optic Network Cable - 9.84 ft Fiber Optic Network Cable for Network Device, Patch Panel, Switch, Transceiver - First End: 1 x MTP/MPO APC Female Network - Second End: 8 x SN/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Black, Blue, White, Green
| $222.64 | Retail $302.40 |
- Duplex SN connector optimized for the latest 400 Gb OSFP/QSFP-DD transceivers
- Space-saving SN plug is 4x smaller than duplex LC for easier cable management
- MTP/MPO APC connector minimizes back reflection with low insertion loss
- Backward compatible with 40/100 Gb networks to facilitate future-proofing
- Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
126532
Item:
N390-03M-4S-AP
UPC Code:
037332274519
Our Part #
01JA48
Condition
New
$222.64EA
$302.40
$302.40
Availability
Only 55 Left In Stock
Product description
Tripp Lite N390-03M-4S-AP Fiber Optic Network Cable - 9.84 ft Fiber Optic Network Cable for Network Device, Patch Panel, Switch, Transceiver - First End: 1 x MTP/MPO APC Female Network - Second End: 8 x SN/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Black, Blue, White, Green
9.84 ft Fiber Optic Network Cable for Network Device, Patch Panel, Switch, Transceiver - First End: 1 x MTP/MPO APC Female Network - Second End: 8 x SN/UPC Male Network - 400 Gbit/s - LSZH, OFNR - 9/125 µm - Yellow, Black, Blue, White, Green
Specifications
UPC Alternates
037332274519
Brand Name
Tripp Lite
Cable length
9.84 ft
Cable type
Fiber Optic
Color
Black Connector
Color
Blue
Color
Yellow Jacket
Color
Green
Color
Green Connector
Color
Yellow
Color
Blue Connector
Color
White Connector
Color
White
Color
Black
Connector on First End
1 x MTP/MPO APC Female Network
Connector on First End
MTP/MPO APC Female Network
Connector on Second End
8 x SN/UPC Male Network
Connector on Second End
SN/UPC Male Network
Core/Cladding Diameter
9/125 µm
Country of origin
China
Data transfer rate
400 Gbit/s
Device Supported
Patch Panel
Device Supported
Switch
Device Supported
Transceiver
Device Supported
Network Device
Environmental Certification
RoHS
Environmental Certification
REACH
Environmentally Friendly
Yes
Features
Push-Pull Boot
Features
Angled Physical Contact (APC)
Features
Bendable
Features
UPC Polished Connector
Fiber Optic Mode
Single-mode
Jacket Type
OFNR
Jacket Type
LSZH
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N390-03M-4S-AP
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
40/100/400 GbE Cable Supports High Bandwidths for High-Density Data Networking
The N390-03M-4S-AP is a premium singlemode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. As the amount of traffic in data networks grows so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services hyperscale data centers telecom applications and equipment OEM companies. This OS2 breakout cable is an ideal choice for 400 Gb Ethernet applications. It is also backward compatible with 40 Gb and 100 Gb networks so you can future-proof your current application for an eventual upgrade to 400 Gb.

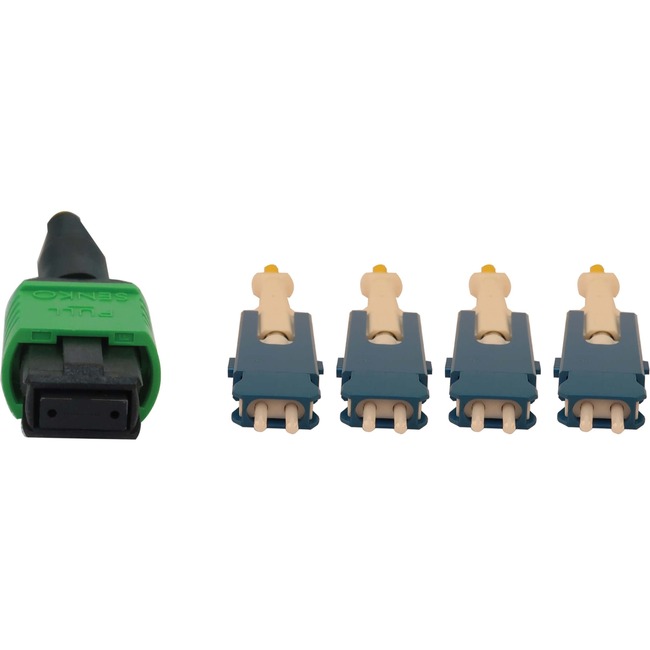

Compact SN Connector Designed for the Latest OSFP/QSFP-DD Transceivers
One cable end features SN connectors which are four times smaller than a standard duplex LC connector and provide individual and independent duplex fiber breakout at a quad-style OSFP/QSFP-DD transceiver. Its push/pull boot encourages dense vertical stacking within a crowded patch panel or switch and makes the cable easy to install or remove with just one hand. Switchable SN/UPC duplex ends let you make quick polarity changes in the field without tools or the need to re-terminate the connectors.
100% Tested for Low Insertion Loss and Back Reflection
The 12-fiber MTP/MPO APC connector with a green housing helps minimize back reflection with low insertion loss. The connector's slim boot is designed for easy cable management.
Yellow-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion making it suitable for poorly ventilated areas.
Product Name
N390-03M-4S-AP Fiber Optic Network Cable
Product Type
Network Cable
