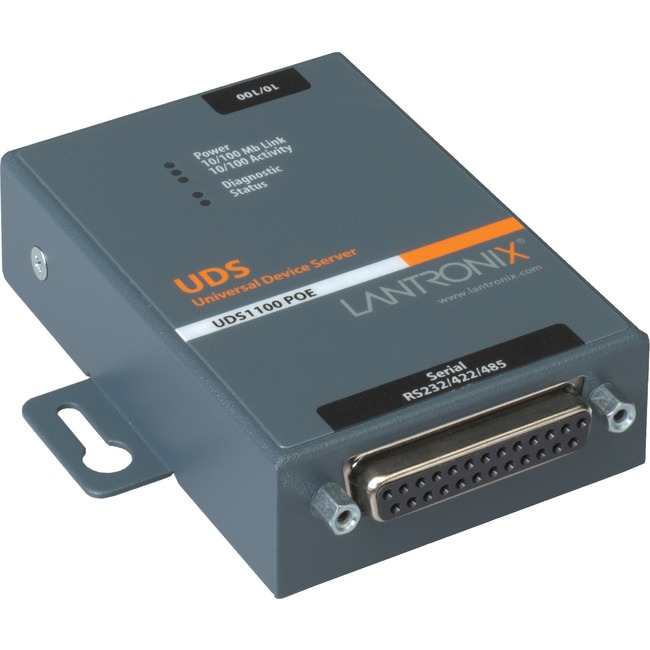

Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE)
Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE) - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rail Mountable; One DB-25 Serial Port; One 10/100 Mbps Fast Ethernet RJ-45 Port
| $229.66 | Retail $234.26 |
By:
Lantronix
Manufacturer:
Lantronix, Inc
Product ID:
126768
Item:
UD11000P0-01
UPC Code:
002107877998
Our Part #
M88501
Condition
New
$229.66EA
$234.26
$234.26
Availability
Only 10 Left In Stock
Product description
Lantronix One Port Serial (RS232/ RS422/ RS485) to IP Ethernet Device Server with Power Over Ethernet (PoE) - Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rail Mountable; One DB-25 Serial Port; One 10/100 Mbps Fast Ethernet RJ-45 Port
Convert from RS-232; RS-485 to Ethernet using Serial over IP technology; Power Over Ethernet (PoE 802.3 AF); UL864 Compliant; Wall Mountable; Rail Mountable; One DB-25 Serial Port; One 10/100 Mbps Fast Ethernet RJ-45 Port
Specifications
Network (RJ-45)
Yes
UPC Alternates
002107877998 783384232358
Additional Information
Software-selectable RS232 RS422 or RS485
Brand Name
Lantronix
Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3af
- UL
- CSA
- FCC
- CE
- TUV
- C-Tick
- VCCI
Depth
0.9"
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Height
3.5"
Input voltage
30 V DC
Limited Warranty
2 Year
Manufacturer
Lantronix Inc
Manufacturer Part Number
UD11000P0-01
Manufacturer Website Address
http://www.lantronix.com
Marketing Information
The UDS1100 Device Server with PoE enables users to connect manage and control just about any piece of equipment with a serial port from virtually anywhere over Ethernet or the Internet.With the UDS1100 virtually any piece of equipment can be added to an Ethernet network in a matter of minutes! This single-port device server is a quick simple and inexpensive way to bring the advantages of remote management to equipment not currently connected to a network.
Memory Technology
SRAM
Number of Network (RJ-45) Ports
1
Power consumption
1.50 W
Processor Speed
48 MHz
Product Model
UDS1100
Product Name
UDS1100 Device Server with PoE
Product Series
UDS
Product Type
Device Server
Standard Memory
256 KB
Weight (Approximate)
7.05 oz
Width
2.5"
