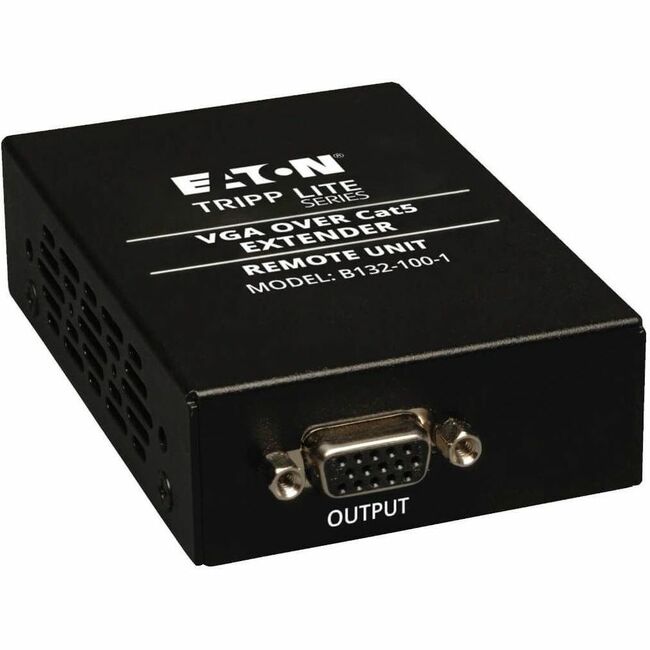

Tripp Lite VGA over Cat5/Cat6 Video Extender Receiver 1920 x 1440 1000'
Tripp Lite VGA over Cat5/Cat6 Video Extender Receiver 1920 x 1440 1000' - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1920 x 1440 - Twisted Pair - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
| $74.42 | Retail $108.80 |
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
127130
Item:
B132-100-1
UPC Code:
000799423929
Our Part #
KA1912
Condition
New
$74.42EA
$108.80
$108.80
Availability
Only 331 Left In Stock
Product description
Tripp Lite VGA over Cat5/Cat6 Video Extender Receiver 1920 x 1440 1000' - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1920 x 1440 - Twisted Pair - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1920 x 1440 - Twisted Pair - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
Specifications
Receiver Depth
3.60"
Receiver Height
1"
Receiver Weight (Approximate)
7.20 oz
Receiver Width
2.50"
UPC Alternates
000799423929 037332160126 818256471433 818273546022
Brand Name
Tripp Lite
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Form factor
Rack-mountable
Form factor
Pole-mountable
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B132-100-1
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's B132-100-1 works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft. or a 1024 x 768 (60Hz) video signal up to 1000 ft.. 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft. or a 1024 x 768 (60Hz) video signal up to 1000 ft.
- 24Awg Solid Wire Cat5e/6 cable such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K
- Features built-in Equalization and Gain controls to adjust the video image
- Includes mounting hardware that allows unit to be wallmounted rackmounted or pole mounted
- Ideal for digital signage situations such as retail schools churches etc..
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 1 year limited waranty.
Maximum Operating Distance
1000 ft
Maximum Video Resolution
1920 x 1440
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
1
Package Contents
- B132-100-1 TAA/GSA Compliant Video Console
- Mini-Screwdriver
- Mounting Hardware
- External Power
- Owner's Manual
Product color
Black
Product Name
Extender Remote (Receiver) Unit
Product Type
Video Extender Receiver
Twisted Pair Cable Standard
Category 6
