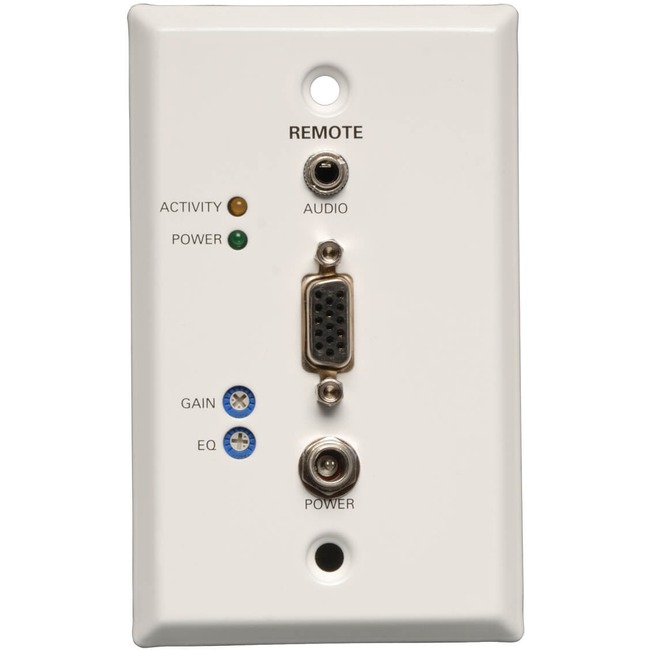

Tripp Lite VGA + Audio over Cat5/Cat6 Video Receiver RJ45 type Wallplate TAA / GSA
Tripp Lite VGA + Audio over Cat5/Cat6 Video Receiver RJ45 type Wallplate TAA / GSA - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable - TAA Compliant
| $52.24 | Retail $129.60 |
- Works with a local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
- RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
127131
Item:
B132-100A-WP-1
UPC Code:
012300208147
Our Part #
KA1913
Condition
New
$52.24EA
$129.60
$129.60
Availability
Only 15 Left In Stock
Product description
Tripp Lite VGA + Audio over Cat5/Cat6 Video Receiver RJ45 type Wallplate TAA / GSA - 1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable - TAA Compliant
1 Input Device - 1 Output Device - 1000 ft Range - 1 x Network (RJ-45) - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable - TAA Compliant
Specifications
Receiver Depth
1"
Receiver Height
4.50"
Receiver Weight (Approximate)
8 oz
Receiver Width
2.75"
UPC Alternates
012300208147 037332160096
Brand Name
Tripp Lite
Certifications & Standards
TAA/GSA
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Wall Mountable
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B132-100A-WP-1
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's B132-100A-WP-1 works with a B132-002A or B132-004A local unit to extend a 1920 x 1440 (60Hz) Video and Stereo Audio signal up to 500 ft. or a 1024 x 768 (60Hz) Video and Stereo Audio signal up to 1000 ft. when using 24Awg Solid Wire Cat5e/6 cable. For optimal video image quality between 500 and 1000 ft. use Zero-Skew cable such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable eliminating the need for a 110 punchdown connection. Ideal for digital signage situations such as retail schools churches etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. 1 year limited warranty.
Maximum Operating Distance
1000 ft
Maximum Video Resolution
1920 x 1440
Media Type Supported
Twisted Pair
Number of Network (RJ-45) Ports
1
Package Contents
- B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console
- Mini-Screwdriver
- Wallplate Screws
- External Power Supply
- Owner's Manual
Product color
White
Product Name
B132-100A-WP-1 TAA/GSA Compliant Wallplate Video Console
Product Type
Video Extender Receiver
Twisted Pair Cable Standard
Category 6
