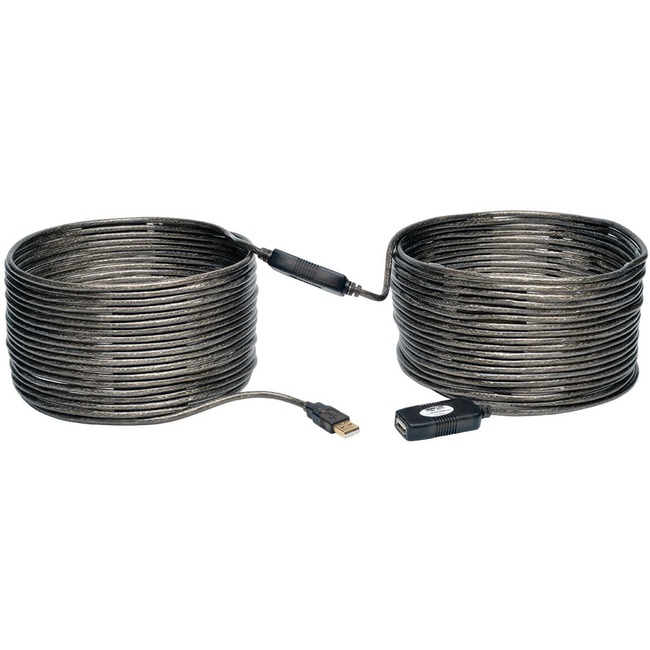

Tripp Lite 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter
Tripp Lite 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter - 65.62 ft Maximum Operating Distance - Network (RJ-45)
| $50.66 | Retail $115.86 |
- Extends and boosts the signal to any USB device cable without signal loss
- Built-in repeater maintains USB signal quality
- Ideal for connecting USB devices beyond the 16-ft. USB specification
- Full 480Mbps Transfer rate and backward compatible to USB 1.1
- Plug and Play. Compatible with all major operating systems
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
127217
Item:
U026-20M
UPC Code:
037332167668
Our Part #
LL8252
Condition
New
$50.66EA
$115.86
$115.86
Availability
Only 467 Left In Stock
Product description
Tripp Lite 20M USB 2.0 Hi-Speed Active Extension Repeater Cable USB-A M/F 65ft 20 Meter - 65.62 ft Maximum Operating Distance - Network (RJ-45)
65.62 ft Maximum Operating Distance - Network (RJ-45)
Specifications
UPC Alternates
037332167668 088021518995 817217526786 818280219858 881000013227 993246243747 999555060440
Additional Information
- 20 m. (65 ft.) USB2.0 Active Extension Cable USB-A Male to USB-A Female
- Full 480Mbps Transfer rate as well as backward compatible to USB 1.1 ( 12Mbps )
- Daisy Chain two cables for a total of 40 Meters ( 131ft )
- Compatible with all major operating systems....Plug-and-Play; no software to load
- The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA of power it will either need to have its own power supply; or to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-20M.
Brand Name
Tripp Lite
Cable Characteristic
Extension Cable
Cable length
65.60 ft
Cable type
USB
Color
Black
Connector on First End
1 x Type A Male USB 2.0 USB
Connector on First End
Type A Male USB
Connector on Second End
1 x Type A Female USB 2.0 USB
Connector on Second End
Type A Female USB
Connector Plating
Gold
Country of origin
China
Data transfer rate
480 Mbit/s
Device Supported
USB Hub
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Strain Relief
Features
Active
Limited Warranty
3 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
U026-20M
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131ft by daisy chaining up to 2 of active cables. Standard 6' 10' or 15' USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required it will either (i) need to have its own power supply or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).
Features
- Maximum Extension Distance: Daisy-chain up to two 20m cables for a complete distance extension of up to 40m (131 ft.)
- Error-Free Signal Transfer: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
- Universal Compatibility: The cable is compatible with all computers devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
- Power Capacity: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA it will either (i) need its own power supply or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
- Premium Cabling: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality
- Gold-Plated Connectors: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
- Signal Booster: The built-in signal booster regenerates a USB signal for high quality and long extension distances
- RoHS Compliance: The U026-20M is compliant with RoHS standards reflecting Tripp Lite's commitment to environmental responsibility
- Plug and Play Convenience: no software to load
Product Name
USB 2.0 Active Extension Repeater Cable (A-A M/F) 20M (65-ft.)
Product Type
Data Transfer Cable
