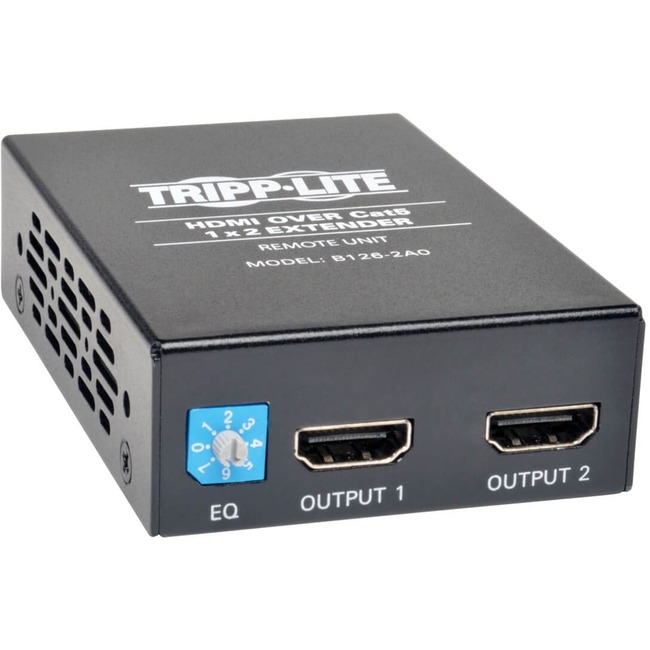

Tripp Lite 2-Port HDMI Over Cat5 Cat6 Audio Video Extender Remote Unit
Tripp Lite 2-Port HDMI Over Cat5 Cat6 Audio Video Extender Remote Unit - 2 Output Device - 200 ft Range - 1 x Network (RJ-45) - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
| $163.22 | Retail $275.20 |
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play-no software or drivers to install
- Built-in equalization control lets you adjust monitor image
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
136577
Item:
B126-2A0
UPC Code:
012302583990
Our Part #
VR5796
Condition
New
$163.22EA
$275.20
$275.20
Availability
Only 5 Left In Stock
Product description
Tripp Lite 2-Port HDMI Over Cat5 Cat6 Audio Video Extender Remote Unit - 2 Output Device - 200 ft Range - 1 x Network (RJ-45) - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
2 Output Device - 200 ft Range - 1 x Network (RJ-45) - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
Specifications
For Country/Region
Europe
For Country/Region
United Kingdom
Receiver Depth
3.60"
Receiver Height
1"
Receiver Width
2.50"
UPC Alternates
012302583990 037332180728
Brand Name
Tripp Lite
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Form factor
Pole-mountable
Form factor
Wall Mountable
Graphics Modes
Full HD
Limited Warranty
1 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B126-2A0
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
The B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI signal and split it to two projectors monitors or televisions. It's ideal for digital signs trade shows presentations classrooms churches retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.
The receiver uses HDMI cable (see Tripp Lite's P568-Series) to connect to the monitors and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series).
The B126-2A0 can extend a 1080i (60 Hz) signal up to 200 feet a 1080p (60 Hz) signal up to 150 feet and a 3D signal up to 125 feet. You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700 feet (1080i) 500 feet (1080p) or 400 feet (3D).
In addition to crystal-clear video the B126-2A0 delivers full rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall rack or pole using the included hardware.
The receiver uses HDMI cable (see Tripp Lite's P568-Series) to connect to the monitors and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series).
The B126-2A0 can extend a 1080i (60 Hz) signal up to 200 feet a 1080p (60 Hz) signal up to 150 feet and a 3D signal up to 125 feet. You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 700 feet (1080i) 500 feet (1080p) or 400 feet (3D).
In addition to crystal-clear video the B126-2A0 delivers full rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall rack or pole using the included hardware.
Features
Extends High-Definition Signals
- Works in tandem with Tripp Lite's B126-002 or B126-004 transmitter unit
- Extends a 1080i (60 Hz) signal up to 200 ft. a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft.
- Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 700 feet (1080i) 500 feet (1080p) and 400 feet (3D)
- Connects to previous link in the chain with one Cat5e/6 cable (for best results use 24 AWG solid-wire Cat5e/6 cable such as Tripp Lite's N202-Series)
Supports the Latest Video and Audio Resolutions
- Works with all operating systems and HDMI video sources
- Supports HD resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor
Easy to Set Up and Use
- Plug-and-play engineering-no software or drivers to download and install
- Connects quickly to monitors with HDMI cable such as Tripp Lite's P568-Series
- LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain
- Included mounting hardware lets you install the unit on a wall rack or pole
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Maximum Operating Distance
200 ft
Maximum Video Resolution
1920 x 1080
Media Type Supported
Twisted Pair
Number of HDMI Outputs
2
Number of Network (RJ-45) Ports
1
Package Contents
- HDMI Over Cat5 Active Extender 2-Port Remote Unit
- Screwdriver For Adjustment Of Equalization
- Mounting Hardware
- External Power Supply (Input: 100-240V)
Product color
Black
Product Name
B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver
Product Type
Video Extender Receiver
Twisted Pair Cable Standard
Category 6
