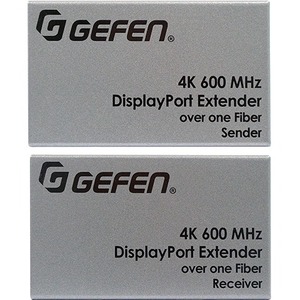

Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable

Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable - 1 Input Device - 1 Output Device - 656.17 ft Range - 2 x SC Ports - DisplayPort - 4K - 4096 x 2160 - Optical Fiber
$2,250.35Retail $2,961.00
  • Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)
  • Fully compliant with DisplayPort 1.2 standard
  • Supports WQUXGA (4K; 3840x2400), 4K Ultra HD (3840 x 2160), and 4K Cinema - DCI (4096 x 2160) at 60Hz, 4:4:4
  • Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode OM3 or better (50/125um) fiber-optic cable
  • HDCP 2.2, HDCP 1.4, and DPCP compliant
  • Supports DisplayPort Auxiliary/l²C channel
  • Supports DisplayPort Multi-stream technology
  • Compact enclosures are easy to install and can be hidden away
  • Sturdy metal construction of the enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI)
  • Plug & Play - no configuration or set-up required for most applications
By:
Gefen
Manufacturer:
Gefen, Inc
Product ID:
139136
Item:
EXT-DP-4K600-1SC
Our Part #
45111815
Condition
New
$2,250.35EA
$2,961.00
Availability Only 4 Left In Stock
Great Deals Everyday

You may be also interested

Product description

Gefen Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable - 1 Input Device - 1 Output Device - 656.17 ft Range - 2 x SC Ports - DisplayPort - 4K - 4096 x 2160 - Optical Fiber
1 Input Device - 1 Output Device - 656.17 ft Range - 2 x SC Ports - DisplayPort - 4K - 4096 x 2160 - Optical Fiber

Specifications

DisplayPort
Yes
Number of Output Devices Supported
1
Number of SC Ports
2
Transmitter Depth
3.11"
Transmitter Height
0.87"
Transmitter Weight (Approximate)
9.52 oz
Transmitter Width
1.77"
Brand Name
Gefen
Connectivity technology
Wired
Graphics Modes
4K
Limited Warranty
2 Year
Manufacturer
Gefen Inc
Manufacturer Part Number
EXT-DP-4K600-1SC
Manufacturer Website Address
http://www.gefen.com
Marketing Information
Gefen's DisplayPort 1.2-compliant extender is a compact and high performance solution for extending HDCP 2.2 HDCP 1.4 and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. WQUXGA (3840 x 2400) 4K Ultra HD (3840 x 2160) and 4K Cinema - DCI (4096 x 2160) up to 60 Hz frame rate and 4:4:4 Chroma sub-sampling are supported. The AV signal can be extended up to 200m (660ft) over a single strand of SC-terminated 50/125 µm OM3 or better multi-mode fiber-optic cable. There is full electrical isolation between the Sender and the Receiver meeting the stringent safety and EMC requirements for critical applications. When used with the Gefen EXT-PS52AU-M-1.3-6-AL power supply (available separately) this extender is compliant with medical safety and EMC standards EN 60601-1 and EN 60601-1-2. The EXT-DP-4K600-1SC can be powered from sources and displays featuring powered USB ports or by using external power supplies. For most applications the Sender and Receiver are plug-and-play and will work without any set-up. In cases where signal optimization becomes necessary due to special requirements of a source and/or a display both units feature easy-to-use EQ switches. The EXT-DP-4K600-1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal). Compact enclosures are easy to install and can be hidden away. Their sturdy metal enclosures help provide further immunity against Electro-Magnetic Interference (EMI) and radiated noise (RFI). Applications include medical imaging military and industrial command and control rooms flight simulators digital signage gaming and wherever 4K full-bandwidth uncompressed video or end-to-end electrical isolation are essential.
Maximum Operating Distance
656.17 ft
Maximum Video Resolution
4096 x 2160
Media Type Supported
Optical Fiber
Package Contents
  • 1 x EXT-DP-4K600-1SC-TX - Sender unit
  • 1 x EXT-DP-4K600-1SC-RX - Receiver unit
  • 2 x DisplayPort Male-to-Male cables 6 feet
  • 2 x USB-to-DC cables 2.3 feet
  • 2 x EXT-PS52AIP-1.3-6-AL power supplies and 2 sets of regional AC plugs (US UK EU and AU)
  • 1 x Quick Start Guide
Product Name
Ultra HD 600MHz DisplayPort 1.2 Extender over one SC-Terminated FiberOptic Cable
Product Type
Video Extender Transmitter/Receiver
