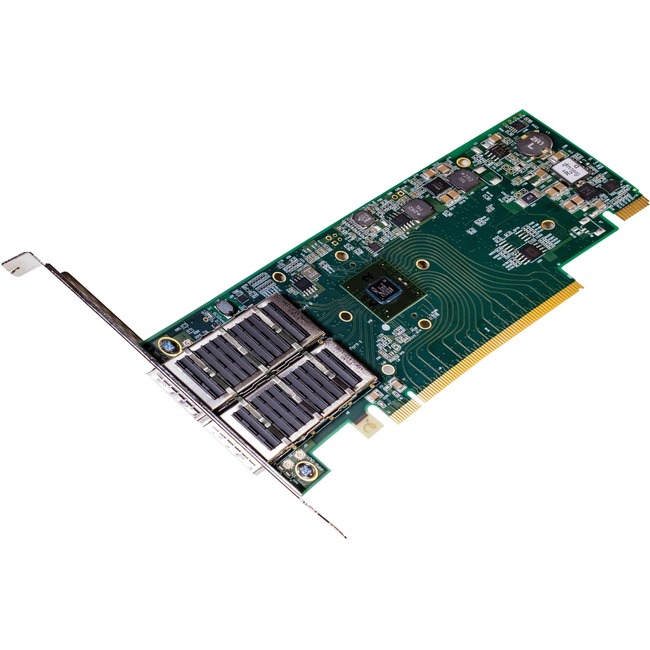

Solarflare XtremeScale SFN8542 Dual-Port 40GbE QSFP+ PCIe Server Adapter
Solarflare XtremeScale SFN8542 Dual-Port 40GbE QSFP+ PCIe Server Adapter - PCI Express 3.1 x16 - 2 Port(s) - Optical Fiber - 40GBase-CR4, 40GBAse-LR4, 40GBase-SR4, 10GBase-CR, 10GBase-LR, 10GBase-SR, 1000Base-X, 40GBase-X - Plug-in Module
| $3,828.17 |
- Bandwidth up to 40Gbps
- Latencies below 1µsec
- XtremePacket Engine provides 1000s of flows/virtual NICs per adapter
- APIs to software defined the adapter enabling a wide range of capabilities
- UKB enables extreme application acceleration
- Telemetry for packet capture, monitoring and analysis
- NIC-level security through packet filtering and secure server lockdown
By:
Solarflare
Manufacturer:
Xilinx Inc.
Product ID:
141858
Item:
SFN8542
UPC Code:
816191010533
Our Part #
4G2777
Condition
New
$3,828.17EA
Availability
Only 9999 Left In Stock
Product description
Solarflare XtremeScale SFN8542 Dual-Port 40GbE QSFP+ PCIe Server Adapter - PCI Express 3.1 x16 - 2 Port(s) - Optical Fiber - 40GBase-CR4, 40GBAse-LR4, 40GBase-SR4, 10GBase-CR, 10GBase-LR, 10GBase-SR, 1000Base-X, 40GBase-X - Plug-in Module
PCI Express 3.1 x16 - 2 Port(s) - Optical Fiber - 40GBase-CR4, 40GBAse-LR4, 40GBase-SR4, 10GBase-CR, 10GBase-LR, 10GBase-SR, 1000Base-X, 40GBase-X - Plug-in Module
Specifications
UPC Alternates
816191010533
Brand Name
Solarflare
Country of origin
China
Depth
6.6"
Device Supported
Server
Environmental Certification
RoHS
Environmentally Friendly
Yes
Expansion Slot Type
QSFP+
Form factor
Plug-in Module
Height
3.1"
Host interface
PCI Express 3.1 x16
Manufacturer
Xilinx Inc.
Manufacturer Part Number
SFN8542
Manufacturer Website Address
www.xilinx.com/
Marketing Information
The new XtremeScale™ SFN8000 adapter family provides Solarflare's best performance yet with higher bandwidth lower latency and higher packet rate. The SFN8000 family adapters are based on a common hardware platform enabling customers to configure the features and performance they want to meet the particular needs of each application. Capabilities such as ultra-low latency Onload® kernel bypass class leading clock synchronization accuracy providing MIFID II readiness ServerLock® Filter Engine SolarCapture® Pro and more can be enabled to run on any SFN8000 adapter on the network making this the one Ethernet adapter to deploy across your data center or cloud infrastructure.
CPU-Efficient Networking
The XtremeScale SFN8542 dual-port 40G Ethernet QSFP+ server adapter delivers faster more efficient processing of network traffic to accelerate a wide range of applications. The SFN8542 has 16 lanes of PCIe 3.1 making it an ideal workhorse for 40GbE data center and cloud workloads providing high-bandwidth high packet rate and CPU-efficient processing of network traffic. The SFN8542 can be configured as a dual-port 40GbE or a quad-port 10GbE adapter as one QSFP+ port can also operate as four 10GbE SFP+ ports.
Configurable Software
When configured with Solarflare software licenses the SFN8542 can address ultra-low latency applications highly accurate clock synchronization and hardware time stamping packet filtering packet capture and more. Adapters can be purchased pre-configured with popular software bundles or configured on-site with software options.
Ultra-Low Latency
The platform's hardware optimizes packet flow to and from the user application. When licensed for ultra-low latency it delivers unrivaled sub-microsecond TCP and UDP latency. With Onload the industry's best application-to-application performance is enabled via Solarflare's unique and patented kernel bypass techniques.
Accelerating Applications
The SFN8542 is ideal for scale-out cloud web and CDN application environments. Solarflare adapters are used in a wide range of use cases including Software-defined networking (SDN) Network functions virtualization (NFV) web content optimization DNS acceleration web firewalls load balancing NOSQL databases caching tiers (Memcached) web proxies video streaming and storage networks. The SFN8542 also provides the ideal link between fast NVMe storage and the network. In addition when used with Onload the SFN8542 further reduces host processing overhead and accelerates web and cloud traffic. When used with ServerLock Filter Engine the SFN8542 provides an additional layer of defense against DDoS attacks at the network ingress point to the server. Attacks can be absorbed without degradation of "good" traffic enabling a 3 to 4x improvement in packet-level filtering server headroom.
Scalable High-Performance Virtualization
Solarflare is the proven leader in VM density and performance and the SFN8542 raises the bar with 2048 vNICs SR-IOV overlay network acceleration e.g. VXLAN NVGRE. In addition the SFN8542 supports kernel bypass running in a guest VM so users can run ultra-low latency Onload or SolarCapture Pro in a virtualized or cloud environment.
The SFN8542 is also fully flow-aware providing flexible layer 2-4 flow processing and flow steering natively. The benefits are efficient flow acceleration in almost every environment from the data center to the stock exchange.
CPU-Efficient Networking
The XtremeScale SFN8542 dual-port 40G Ethernet QSFP+ server adapter delivers faster more efficient processing of network traffic to accelerate a wide range of applications. The SFN8542 has 16 lanes of PCIe 3.1 making it an ideal workhorse for 40GbE data center and cloud workloads providing high-bandwidth high packet rate and CPU-efficient processing of network traffic. The SFN8542 can be configured as a dual-port 40GbE or a quad-port 10GbE adapter as one QSFP+ port can also operate as four 10GbE SFP+ ports.
Configurable Software
When configured with Solarflare software licenses the SFN8542 can address ultra-low latency applications highly accurate clock synchronization and hardware time stamping packet filtering packet capture and more. Adapters can be purchased pre-configured with popular software bundles or configured on-site with software options.
Ultra-Low Latency
The platform's hardware optimizes packet flow to and from the user application. When licensed for ultra-low latency it delivers unrivaled sub-microsecond TCP and UDP latency. With Onload the industry's best application-to-application performance is enabled via Solarflare's unique and patented kernel bypass techniques.
Accelerating Applications
The SFN8542 is ideal for scale-out cloud web and CDN application environments. Solarflare adapters are used in a wide range of use cases including Software-defined networking (SDN) Network functions virtualization (NFV) web content optimization DNS acceleration web firewalls load balancing NOSQL databases caching tiers (Memcached) web proxies video streaming and storage networks. The SFN8542 also provides the ideal link between fast NVMe storage and the network. In addition when used with Onload the SFN8542 further reduces host processing overhead and accelerates web and cloud traffic. When used with ServerLock Filter Engine the SFN8542 provides an additional layer of defense against DDoS attacks at the network ingress point to the server. Attacks can be absorbed without degradation of "good" traffic enabling a 3 to 4x improvement in packet-level filtering server headroom.
Scalable High-Performance Virtualization
Solarflare is the proven leader in VM density and performance and the SFN8542 raises the bar with 2048 vNICs SR-IOV overlay network acceleration e.g. VXLAN NVGRE. In addition the SFN8542 supports kernel bypass running in a guest VM so users can run ultra-low latency Onload or SolarCapture Pro in a virtualized or cloud environment.
The SFN8542 is also fully flow-aware providing flexible layer 2-4 flow processing and flow steering natively. The benefits are efficient flow acceleration in almost every environment from the data center to the stock exchange.
Media Type Supported
Optical Fiber
Network Technology
40GBase-CR4
Network Technology
10GBase-LR
Network Technology
1000Base-X
Network Technology
10GBase-CR
Network Technology
40GBase-X
Network Technology
40GBase-SR4
Network Technology
10GBase-SR
Network Technology
40GBAse-LR4
Product Family
XtremeScale SFN8000
Product Line
XtremeScale
Product Name
XtremeScale SFN8542 Dual-Port 40GbE QSFP+ PCIe Server Adapter
Product Series
SFN8000
Product Type
40Gigabit Ethernet Card
Total Number of Ports
2
Width
2.7"
