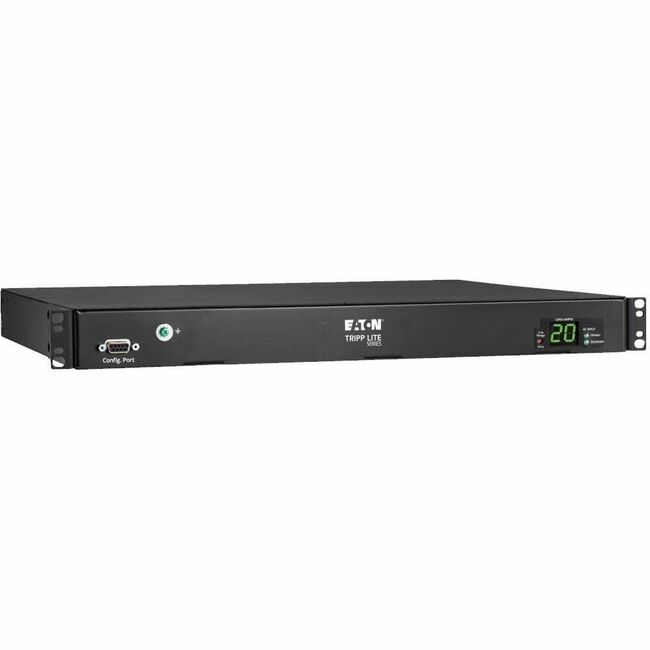

Tripp Lite PDU ATS/Metered 200-240V 8 C13 2 C19 Dual C20 12ft Cords 1URM
Tripp Lite PDU ATS/Metered 200-240V 8 C13 2 C19 Dual C20 12ft Cords 1URM - Metered Auto Transfer Switch - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal - Rack-mountable - TAA Compliant
| $723.08 |
- 8 C13 and 2 C19 200-240V outlets distribute AC power to connected equipment
- Switches from primary to secondary power source in <5 ms for constant operation
- Digital ammeter for on-site real-time load monitoring helps prevent power overloads
- Dual 12 ft. power cables connect to separate primary and secondary power sources
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
144479
Item:
PDUMH20HVATS
UPC Code:
037332261380
Our Part #
9HC998
Condition
New
$723.08EA
Availability
Only 55 Left In Stock
You may be also interested
Product description
Tripp Lite PDU ATS/Metered 200-240V 8 C13 2 C19 Dual C20 12ft Cords 1URM - Metered Auto Transfer Switch - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal - Rack-mountable - TAA Compliant
Metered Auto Transfer Switch - IEC 60320 C20 - 8 x IEC 60320 C13, 2 x IEC 60320 C19 - 230 V AC - 1U - Horizontal - Rack-mountable - TAA Compliant
Specifications
Mounting Orientation
Horizontal
PDU Type
Metered Auto Transfer Switch
Phase
Single Phase
Plug/Connector Detail
2 x IEC 60320 C20
Power Rating (Watt)
3800 W
Receptacle Detail
8 x IEC 60320 C13
Receptacle Detail
2 x IEC 60320 C19
UPC Alternates
037332261380
Brand Name
Tripp Lite
Country of origin
Taiwan
Depth
14.8"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.7"
Input current
20 A
Input voltage
230 V AC
Limited Warranty
2 Year
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
PDUMH20HVATS
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current meter. Ideal for network IT applications small computer rooms and other equipment rack applications the PDUMH20HVATS features eight C13 and two C19 200-240V outlets for connecting equipment. Outlets are factory-programmed for sequential turn-on at 250-millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction at startup.
Switches from Primary to Secondary Power Source in Milliseconds
Dual 12-foot (3.7-meter) power cables with C20 inputs connect to separate primary and secondary mains circuits backup generators UPS systems or utility power grids including out-of-phase sources. Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels even while adding new equipment can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack.
TAA-Compliant for GSA Schedule Purchases
The PDUMH20HVATS is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Mount Type
Rack-mountable
Output voltage
208 V AC
Output voltage
240 V AC
Output voltage
200 V AC
Output voltage
220 V AC
Package Contents
- PDUMH20HVATS 10-Outlets PDU
- 2 x Detachable C19 to C20 Input Cords 12 ft. (3.7 m)
- 10 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Owner's Manual
Plug/Connector Type
IEC 60320 C20
Product Name
PDUMH20HVATS 10-Outlets PDU
Product Type
PDU
Protection Type
Overload Protection
Protection Type
Circuit Protection
Rack Height
1U
Receptacle Type
IEC 60320 C13
Receptacle Type
IEC 60320 C19
Weight (Approximate)
10.30 lb
Width
17.3"
