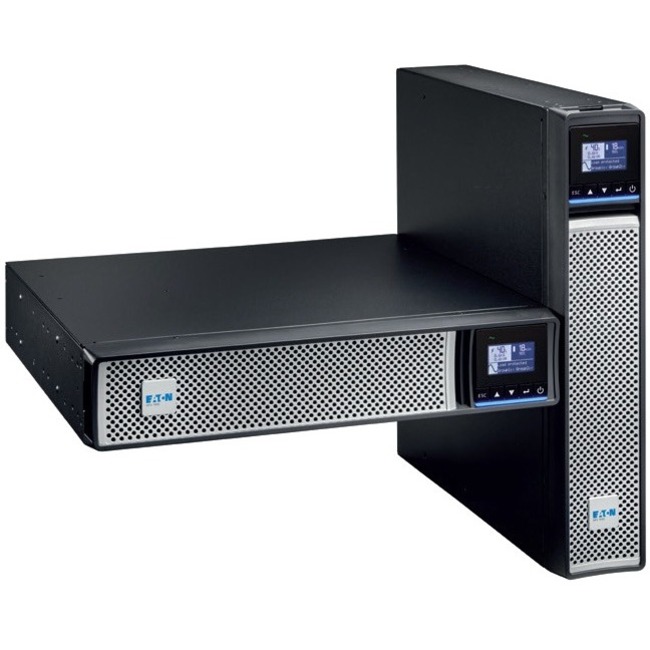

Eaton 5PX Gen2 UPS
Eaton 5PX Gen2 UPS - 2U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Serial Port - 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A)
| $1,186.27 | Retail $2,351.00 |
- Works adequately in situations where the supply is prone to sags and surges
- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- IEC 60320 C13 (10A) receptacle type offers ease of operation with maximum efficiency
- Single Phase phase for better reliability and ensure maximum productivity
- Line-interactive UPS with network application/usage to ensure maximum productivity with added feasibility
- 230 V AC input voltage for maximum feasibility and added productivity
- 200 V AC output voltage for better reliance and maximum usability
- Rack/Tower form factor for added reliability and dependability
By:
Eaton
Manufacturer:
Eaton Corporation
Product ID:
158226
Item:
5PX3000IRT2UG2
UPC Code:
743172104809
Our Part #
39121011
Condition
New
$1,186.27EA
$2,351.00
$2,351.00
Availability
Only 27 Left In Stock
You may be also interested
Product description
Eaton 5PX Gen2 UPS - 2U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Serial Port - 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A)
2U Rack/Tower - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Serial Port - 8 x IEC 60320 C13 (10A), 2 x IEC 60320 C19 (16A)
Specifications
Load Capacity (VA)
3000 VA
Load Capacity (W)
3000 W
Output Frequency
60 Hz
Phase
Single Phase
Receptacle Detail
8 x IEC 60320 C13 (10A)
Receptacle Detail
2 x IEC 60320 C19 (16A)
UPC Alternates
743172104809
Waveform Type
Pure Sine Wave
Application/Usage
Router
Application/Usage
Storage Device
Application/Usage
Cloud Orchestration Tool
Application/Usage
Switch
Application/Usage
Server
Application/Usage
Virtual Platform
Application/Usage
IT System
Application/Usage
Network
Brand Name
Eaton
Depth
23.7"
Form factor
Rack/Tower
Height
3.4"
Hot Swappable
Yes
Input frequency
70 Hz
Input voltage
230 V AC
Input Voltage Range
160 V - 294 V
Load Capacity
3000 VA/3000 W
Manufacturer
Eaton Corporation
Manufacturer Part Number
5PX3000IRT2UG2
Manufacturer Website Address
http://www.eaton.com
Marketing Information
Exceptional efficiency manageability and energy metering capabilities for IT managers | Performance and efficiency
- Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified 5PX Gen2 offers best-in-class efficiency performance to reduce energy consumption and cooling costs.
- When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size/runtime ratio.
Management and Cybersecurity
- Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2 Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
- 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.
- Eaton's Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.
Availability and flexibility
- 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
- Eaton ABM® battery management technology uses a three- stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
Maximum Operating Temperature
104°F (40°C)
Output voltage
240 V AC
Output voltage
208 V AC
Output voltage
220 V AC
Output voltage
200 V AC
Product Name
5PX Gen2 UPS
Product Series
5PX
Product Type
Line-interactive UPS
Rack Height
2U
Receptacle Type
IEC 60320 C13 (10A)
Receptacle Type
IEC 60320 C19 (16A)
Weight (Approximate)
69.89 lb
Width
17.2"
