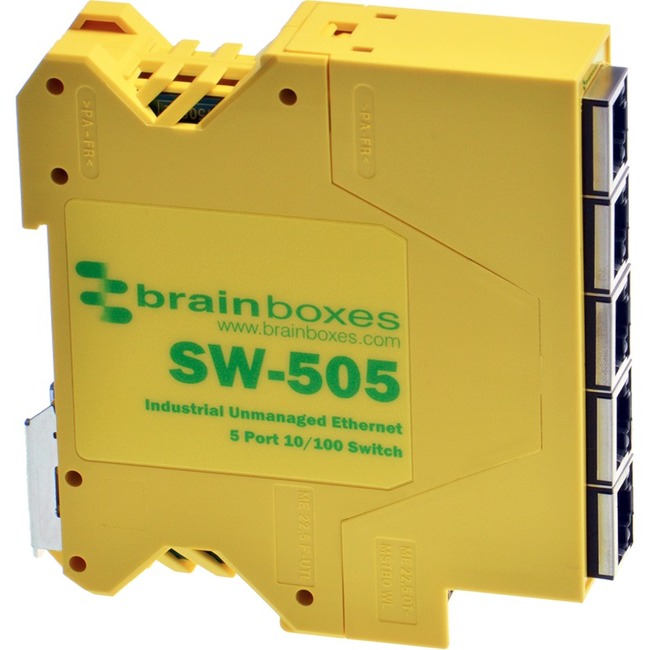

Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - Fast Ethernet - 10/100Base-TX - TAA Compliant - 2 Layer Supported - Twisted Pair - Rail-mountable - Lifetime Limited Warranty
| $87.88 |
- 5 Port Compact Ethernet Switch
- Integrated DIN Rail Mount with grounding
- Redundant dual power inputs: +5V to +30V DC
- Industrial operating temp range -40°C to +80°C / -40°F to +176°F
- Small Footprint Case, only 22.5mm wide, 94mm deep
By:
Brainboxes
Manufacturer:
Brainboxes Limited
Product ID:
170433
Item:
SW-505
UPC Code:
818214955142
Our Part #
3N0577
Condition
New
$87.88EA
Availability
Only 50 Left In Stock
Product description
Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable - 5 Ports - Fast Ethernet - 10/100Base-TX - TAA Compliant - 2 Layer Supported - Twisted Pair - Rail-mountable - Lifetime Limited Warranty
5 Ports - Fast Ethernet - 10/100Base-TX - TAA Compliant - 2 Layer Supported - Twisted Pair - Rail-mountable - Lifetime Limited Warranty
Specifications
Total Number of Network Ports
5
UPC Alternates
818214955142 837324003895
Brand Name
Brainboxes
Country of origin
United Kingdom
Depth
3.9"
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
Rail-mountable
Height
0.9"
Layer Supported
2
Limited Warranty
Lifetime
Manageable
No
Manufacturer
Brainboxes Limited
Manufacturer Part Number
SW-505
Manufacturer Website Address
http://www.brainboxes.com
Marketing Information
Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor in vehicle and marine applications.
Media Type Supported
Twisted Pair
Network Technology
10/100Base-TX
Package Contents
- Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
- Quick Start Guide
Port/Expansion Slot Details
5 x Fast Ethernet Network
Power source
AC Adapter
Power source
USB
Product Name
Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
Product Type
Ethernet Switch
Weight (Approximate)
4.06 oz
Width
3.7"
