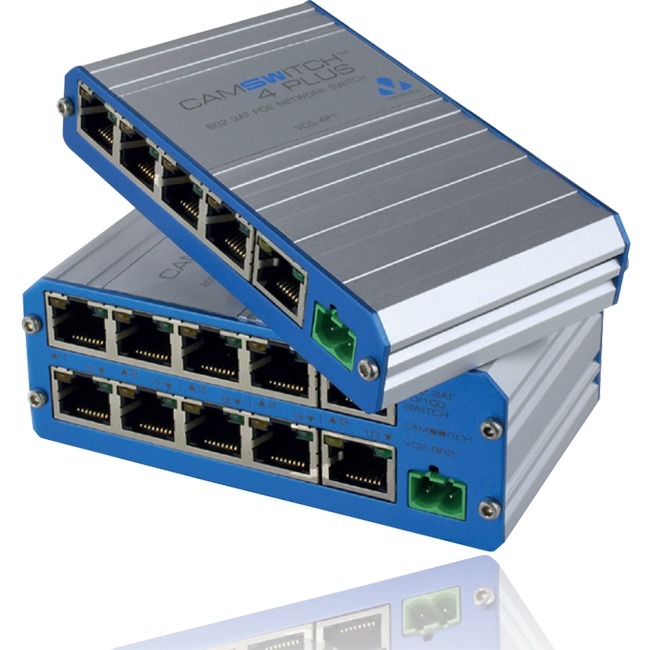

Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch
Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - PoE, Power Supply - Twisted Pair
| $222.72 | Retail $252.25 |
- Quickly and easily set up a wired network with 5 networking ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
By:
Veracity
Manufacturer:
Veracity USA, Inc
Product ID:
170925
Item:
VCS-4P1
UPC Code:
892314002173
Our Part #
43222612
Condition
New
$222.72EA
$252.25
$252.25
Availability
Only 4 Left In Stock
Product description
Veracity CAMSWITCH Plus VCS-4P1 Ethernet Switch - 5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - PoE, Power Supply - Twisted Pair
5 Ports - Fast Ethernet - 10/100Base-T - 2 Layer Supported - PoE, Power Supply - Twisted Pair
Specifications
Total Number of Network Ports
5
UPC Alternates
017519207134 818275734199 892314002173
Brand Name
Veracity
Depth
2.5"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Height
0.9"
Layer Supported
2
Manageable
No
Manufacturer
Veracity USA Inc
Manufacturer Part Number
VCS-4P1
Manufacturer Website Address
http://www.veracityusa.com
Marketing Information
Compact and versatile 802.3at POE switches
CAMSWITCH 4 PLUS REPLACES CAMSWITCH QUAD.
CAMSWITCH Plus network switches are 803.af/at Power over Ethernet (POE) 10/100 switches designed especially to meet the challenges of IP video installation. An optional POE input enables remote positioning and range extension or a local power supply can be specified for maximum power budget.
CAMSWITCH 4 Plus features 4 802.3at POE ports and a 5th port for downlink.
CAMSWITCH 8 Plus features 8 802.3at POE ports as well as 2 further network ports and is compatible with Veracity's rack-mounting system.
802.3at POE Power
CAMSWITCH Plus can deliver up to the full 25.5 watts required by IEEE 802.3at POE Plus devices such as outdoor or PTZ cameras. A selection of power supply options are available to suit the total power requirements and placement considerations of the installation.
40 watt and 78 watt camera/device power budgets are available from standard power supplies or the full 200 watts for 8 POE Plus ports can be delivered using Veracity's forthcoming rackmount power solutions.
CAMSWITCH Plus can be powered by POE doubling the distance to connected devices or enabling network connections to be easily added to existing installations. Up to 25 watts budget at 200 metres is available using Veracity's OUTSOURCE Plus injector.
When a 57V power supply is used CAMSWITCH Plus can deliver enhanced POE to Veracity OUTREACH Max HIGHWIRE PowerStar and LONGSPAN products for maximum range.
Designed for installers
Camswitch Plus's network ports configure automatically for speed duplex and crossover and deliver 802.3af/at POE to compliant devices with no user setup required.
Snap-on clips are provided for secure wall mounting and up to 4 units can be mounted in an optional 1U rack bracket.
Media Type Supported
Twisted Pair
Network Technology
10/100Base-T
Port/Expansion Slot Details
5 x Fast Ethernet Network
Power source
Power Supply
Power source
PoE
Product Line
CAMSWITCH Plus
Product Name
CAMSWITCH Plus VCS-4P1 Ethernet Switch
Product Type
Ethernet Switch
Weight (Approximate)
4.76 oz
Width
4.3"
