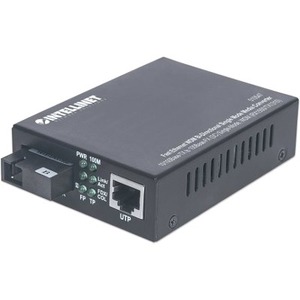

Intellinet Network Solutions Fast Ethernet WDM (RX1550/TX1310) Bi-Directional Single-Mode, RJ45 to SC, 12.4 miles (20 km) Media Converter
Intellinet Network Solutions Fast Ethernet WDM (RX1550/TX1310) Bi-Directional Single-Mode, RJ45 to SC, 12.4 miles (20 km) Media Converter - 10/100Base-TX to 100Base-FX
| $54.79 | Retail $102.99 |
- Expand your network capabilities with this 2 transceiver/media converter
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- Desktop installation makes it ideal for deployments outside the wiring closet
By:
Intellinet
Manufacturer:
Intellinet Network Solutions
Product ID:
173266
Item:
510547
UPC Code:
766623510547
Our Part #
43201553
Condition
New
$54.79EA
$102.99
$102.99
Availability
Only 89 Left In Stock
You may be also interested
Product description
Intellinet Network Solutions Fast Ethernet WDM (RX1550/TX1310) Bi-Directional Single-Mode, RJ45 to SC, 12.4 miles (20 km) Media Converter - 10/100Base-TX to 100Base-FX
10/100Base-TX to 100Base-FX
Specifications
Fiber Mode Supported
Single-mode
Fiber Optic Cable Standard
9/125 µm
Fiber Optic Wavelength
1550 nm
Fiber Optic Wavelength
1310 nm
Maximum Distance Supported
12.43 Mile
Network (RJ-45)
Yes
SC Port Type
Duplex
UPC Alternates
766623510547
Brand Name
Intellinet
Depth
4.1"
Ethernet Technology
Fast Ethernet
Form factor
Standalone
Form factor
Desktop
Form factor
Wall Mountable
Form factor
External
Form factor
Rack-mountable
Height
1"
Limited Warranty
3 Year
Manufacturer
Intellinet Network Solutions
Manufacturer Part Number
510547
Manufacturer Website Address
http://www.intellinet-network.com
Marketing Information
The Intellinet Fast Ethernet WDM (bi-directional wavelength division multiplexing) Media Converter utilizes a single strand of fiber to transmit network traffic on separate receive and transmit wavelengths (1550/1310 nm). This innovative technology allows you to effectively use the two strands for two independent connections or to double the capacity without digging in a second fiber cable. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fiber mediums.
Expands the Size of an Existing Network
This converter provides fiber connectivity to Ethernet segments allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
Expands the Size of an Existing Network
This converter provides fiber connectivity to Ethernet segments allowing for even further networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wallmount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
100Base-FX
Network Technology
10/100Base-TX
Number of Network (RJ-45) Ports
1
Power source
AC Adapter
Product Name
Fast Ethernet WDM Bi-Directional Single Mode Media Converter
Product Type
Transceiver/Media Converter
Total Number of Ports
2
USB
No
Weight (Approximate)
6.35 oz
Width
2.7"
