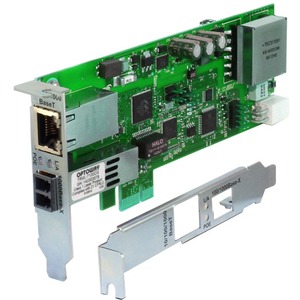

Transition Networks N-GXE-POE-LC-01 Gigabit Ethernet Card
Transition Networks N-GXE-POE-LC-01 Gigabit Ethernet Card - PCI Express 2.0 - 2 Port(s) - 1 - Optical Fiber, Twisted Pair - 1000Base-T, 1000Base-X - Plug-in Module
| $352.62 | Retail $450.50 |
- This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
- This 500 MB/s bandwidth PCI Express 2.0 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- This dual port gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
By:
Transition Networks
Manufacturer:
Transition Networks, Inc
Product ID:
173686
Item:
N-GXE-POE-LC-01
UPC Code:
648177039609
Our Part #
1F7728
Condition
New
$352.62EA
$450.50
$450.50
Availability
Only 5 Left In Stock
You may be also interested
Product description
Transition Networks N-GXE-POE-LC-01 Gigabit Ethernet Card - PCI Express 2.0 - 2 Port(s) - 1 - Optical Fiber, Twisted Pair - 1000Base-T, 1000Base-X - Plug-in Module
PCI Express 2.0 - 2 Port(s) - 1 - Optical Fiber, Twisted Pair - 1000Base-T, 1000Base-X - Plug-in Module
Specifications
UPC Alternates
648177039609
Brand Name
Transition Networks
Country of origin
Taiwan
Depth
6.5"
Device Supported
PC
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Plug-in Module
Height
0.9"
Host interface
PCI Express 2.0
Limited Warranty
Lifetime
Manufacturer
Transition Networks Inc
Manufacturer Part Number
N-GXE-POE-LC-01
Manufacturer Website Address
http://www.transition.com
Marketing Information
The N-GXE-POE-xx-01 Network Interface Card (NIC) provides connectivity to a secure fiber network while also delivering power to a PoE Powered Device (PD) such as a VoIP phone with a copper UTP interface. It fully complies with all IEEE 802.3z and 1000Base-X standards providing up to 2000 Mbps full-duplex bandwidth capacity.
Developed to support high-end users this two-port NIC has one 1000Base-X fiber network interface port and one switched 10/100/1000Base-T port supporting IEEE 802.3at PoE+ power. It is designed to allow a PC to power a VoIP phone or any other traditional copper Powered Device over a secure fiber network. Additionally the NIC also has the ability to provide traffic switching functions between the copper and fiber ports even when the PC is in a sleep mode.
Combining the functions of PC connectivity and VoIP phone connectivity into one device saves installation time expense and the space of having two devices at the desktop. When the VoIP traffic is filtered and prioritized by third-party devices like an Ethernet switch and the IP phone this PoE NIC will pass all tagged traffic ensuring users experience a high level of quality of service. VLANs and Prioritization can also be configured at the NIC via Transition's PoE NIC utility software.
Developed to support high-end users this two-port NIC has one 1000Base-X fiber network interface port and one switched 10/100/1000Base-T port supporting IEEE 802.3at PoE+ power. It is designed to allow a PC to power a VoIP phone or any other traditional copper Powered Device over a secure fiber network. Additionally the NIC also has the ability to provide traffic switching functions between the copper and fiber ports even when the PC is in a sleep mode.
Combining the functions of PC connectivity and VoIP phone connectivity into one device saves installation time expense and the space of having two devices at the desktop. When the VoIP traffic is filtered and prioritized by third-party devices like an Ethernet switch and the IP phone this PoE NIC will pass all tagged traffic ensuring users experience a high level of quality of service. VLANs and Prioritization can also be configured at the NIC via Transition's PoE NIC utility software.
Media Type Supported
Optical Fiber
Media Type Supported
Twisted Pair
Network Technology
1000Base-X
Network Technology
1000Base-T
Number of Network (RJ-45) Ports
1
Package Contents
- N-GXE-POE-LC-01 Gigabit Ethernet Card
- Low Profile Bracket
Product Name
N-GXE-POE-LC-01 Gigabit Ethernet Card
Product Type
Gigabit Ethernet Card
Total Number of Ports
2
Weight (Approximate)
2 lb
Width
4.8"
