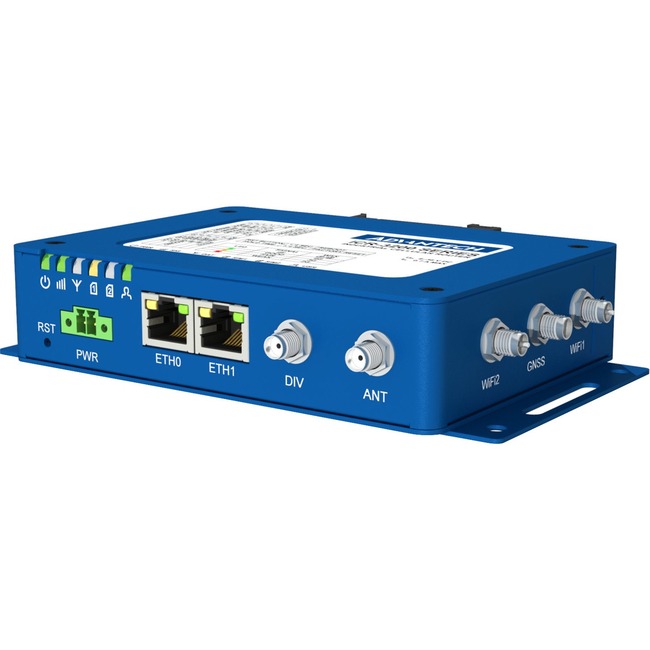

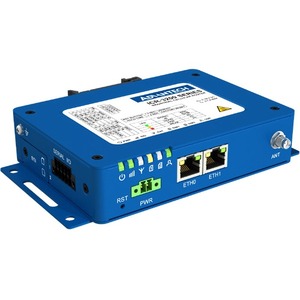

Advantech ICR-3241W Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular Wireless Router
Advantech ICR-3241W Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular Wireless Router - 4G - LTE 600, LTE 700, LTE 850, LTE 1700, LTE 1900, WCDMA 850, WCDMA 1700, WCDMA 1900 - LTE - 2.40 GHz ISM Band - 5 GHz UNII Band - 2 x Network Port - Fast Ethernet - VPN Supported - DIN Rail Mountable, Wall Mountable
| $790.70 | Retail $800.00 |
- 4G LTE Cat.4 VPN Gateway for Industrial IoT applications
- Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)
- Powerful CPU with 1.3 GB storage to host customer SW applications
- 2� SIM with cover, Dual SIM + eSIM
- 2� Ethernet 10/100, 1x RS232, 1x RS485 and I/O
- Optional Wi-Fi 802.11ac using MU-MIMO technology
- Optional GNSS receiver
- Robust metal cover with DIN and Wall mount options
- Operational temperature range from -40 °C to +75 °C
- Sleep mode & Power ignition & Backup real time clock
By:
Advantech
Manufacturer:
Advantech Co., Ltd
Product ID:
173753
Item:
ICR-3241W-1ND
Our Part #
8CK555
Condition
New
$790.70EA
$800.00
$800.00
Availability
Only 2 Left In Stock
Product description
Advantech ICR-3241W Wi-Fi 5 IEEE 802.11ac 2 SIM Cellular Wireless Router - 4G - LTE 600, LTE 700, LTE 850, LTE 1700, LTE 1900, WCDMA 850, WCDMA 1700, WCDMA 1900 - LTE - 2.40 GHz ISM Band - 5 GHz UNII Band - 2 x Network Port - Fast Ethernet - VPN Supported - DIN Rail Mountable, Wall Mountable
4G - LTE 600, LTE 700, LTE 850, LTE 1700, LTE 1900, WCDMA 850, WCDMA 1700, WCDMA 1900 - LTE - 2.40 GHz ISM Band - 5 GHz UNII Band - 2 x Network Port - Fast Ethernet - VPN Supported - DIN Rail Mountable, Wall Mountable
Specifications
Cellular Data Connectivity Technology
LTE
Cellular Generation
4G
Cellular Network Supported
LTE 700
Cellular Network Supported
WCDMA 1900
Cellular Network Supported
LTE 1700
Cellular Network Supported
WCDMA 1700
Cellular Network Supported
WCDMA 850
Cellular Network Supported
LTE 600
Cellular Network Supported
LTE 1900
Cellular Network Supported
LTE 850
SIM Size Supported
Mini/eSim
Wi-Fi Generation
Wi-Fi 5
Wireless LAN Standard
IEEE 802.11ac
Brand Name
Advantech
Broadband Transmission Technology
Cellular
Country of origin
Czech Republic
Depth
3.8"
Environmental Certification
WEEE
Environmental Certification
REACH
Environmental Certification
RoHS
Ethernet Technology
Fast Ethernet
Form factor
Wall Mountable
Form factor
DIN Rail Mountable
Height
2.2"
ISM Maximum Frequency
2.40 GHz
Limited Warranty
2 Year
Manufacturer
Advantech Co. Ltd
Manufacturer Part Number
ICR-3241W-1ND
Manufacturer Website Address
http://www.advantech.com
Marketing Information
The ICR-3200 LTE gateway is the perfect way to connect IP or serial devices to a cellular network. Industrial M2M and IoT applications include kiosks industrial PCs HMIs traffic controllers meters UPS systems and much more.
With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.
In addition to its two independent or switched Ethernet ports serial ports RS232 and RS485 ICR-3200 has built-in digital I/O connectivity backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM.
Optional built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi and Bluetooth v5.1 module (class 1) are also available. WiFi with 802.11abgnac modes and MU-MIMO support is appropriate for on-board Wi-Fi transport applications.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections automatic restart in case of connection losses and a hardware watchdog that monitors the router status.
With LTE Cat.4 upload speeds of up to 50 Mbps and download speeds of up to 150 Mbps the router provides ample bandwidth for high data demand applications such as CCTV or public Wi-Fi hotspots.
In addition to its two independent or switched Ethernet ports serial ports RS232 and RS485 ICR-3200 has built-in digital I/O connectivity backup real-time clock and sleep mode support. The device has two SIM readers protected by metallic cover for carrier failover redundancy. As an addition the router is ready to use internal eSIM.
Optional built-in GNSS chipset provides information about the accurate position of the router. An optional built-in Wi-Fi and Bluetooth v5.1 module (class 1) are also available. WiFi with 802.11abgnac modes and MU-MIMO support is appropriate for on-board Wi-Fi transport applications.
The router supports VPN tunnel creation using various protocols to ensure safe communications. The router provides diagnostic functions which include automatic monitoring of the wireless and wired connections automatic restart in case of connection losses and a hardware watchdog that monitors the router status.
Number of Network (RJ-45) Ports
2
Package Contents
- Industrial IoT 4G LTE Router & Gateway
- Wall Mount Kit
- DIN Clip
- Serial / IO Connector
- PWR Connector
- Quick Start Guide
Product Model
ICR-3241W
Product Name
Industrial IoT 4G LTE Router & Gateway
Product Series
ICR-3200
Product Type
Wireless Router
UNII Maximum Frequency
5 GHz
VPN Supported
Yes
Weight (Approximate)
1.10 lb
Width
4.9"
