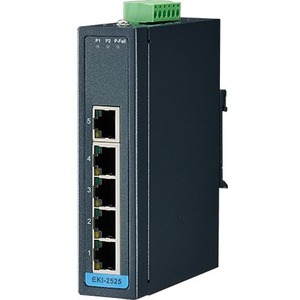

Advantech 5-Port Ethernet Switch
Advantech 5-Port Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
| $89.32 | Retail $94.09 |
- Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
- Supports 10/100 Mbps Auto-Negotiation
- Provides broadcast storm protection
- Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
- Supports redundant 12 ~ 48 VDC power input and P-Fail relay
- Supports wide operating temperatures from -40 to 75°C (EKI-2525I/EKI-2528I)
By:
Advantech
Manufacturer:
Advantech Co., Ltd
Product ID:
173774
Item:
EKI-2525-BE
Our Part #
9U9011
Condition
New
$89.32EA
$94.09
$94.09
Availability
Only 29 Left In Stock
Product description
Advantech 5-Port Ethernet Switch - 5 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
5 Ports - 2 Layer Supported - Twisted Pair - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty
Specifications
Total Number of Network Ports
5
Brand Name
Advantech
Country of origin
China
Depth
3.7"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Fast Ethernet
Form factor
DIN Rail Mountable
Form factor
Wall Mountable
Height
4.7"
Layer Supported
2
Limited Warranty
5 Year
Manageable
No
Manufacturer
Advantech Co. Ltd
Manufacturer Part Number
EKI-2525-BE
Manufacturer Website Address
http://www.advantech.com
Marketing Information
The EKI-2525/2528 supports a Fast Ethernet solution. The power is a +12 ~ 48 VDC redundant input design and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED's to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.
Media Type Supported
Twisted Pair
Network Technology
10/100Base-TX
Port/Expansion Slot Details
5 x Fast Ethernet Network
Product Model
EKI-2525
Product Name
5-Port Ethernet Switch
Product Series
EKI-2000
Product Type
Ethernet Switch
Width
1.2"
