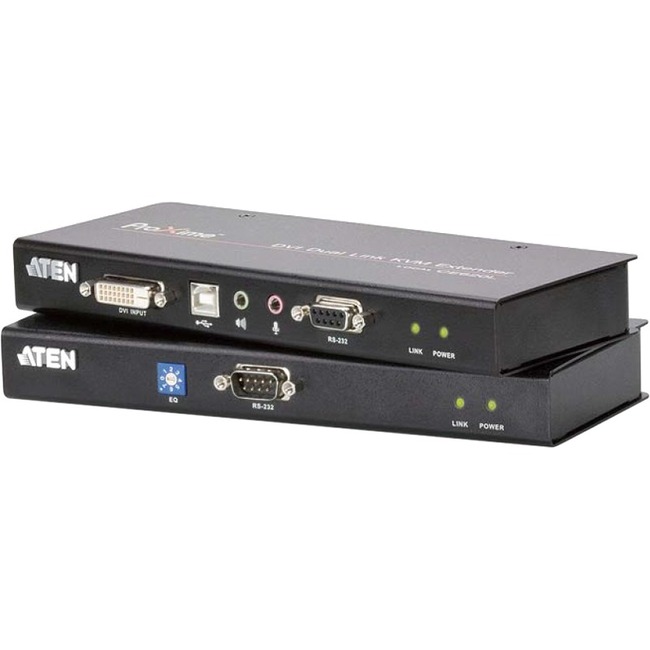

ATEN CE600 KVM Console/Extender-TAA Compliant
ATEN CE600 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 196.85 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI - 5.3 V DC Input Voltage - Rack-mountable
| $498.32 | Retail $654.00 |
- Local and Remote Units connect at distances up to 60 m using Cat 5e cable
- Allows access to a computer or KVM installation from a remote console (up to 60 m)
- Features ATEN technology that allows A/V transmission over one cat 5e cable
- The 2nd Cat 5e cable is used for HDCP, RS-232, and microphone signals
- Manual compensation control to adjust signal strength in order to compensate for distance
- RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)
- Audio Enabled - supports stereo speakers and microphone
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- Supports Wide Screen formats
- Superior video quality of up to 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m - get an excellent, crisp image on your screen over long distance transmissions
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
174365
Item:
CE600
UPC Code:
191120107172
Our Part #
LC6232
Condition
New
$498.32EA
$654.00
$654.00
Availability
Only 1 Left In Stock
Product description
ATEN CE600 KVM Console/Extender-TAA Compliant - 1 Computer(s) - 196.85 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI - 5.3 V DC Input Voltage - Rack-mountable
1 Computer(s) - 196.85 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 3 x USB - 2 x DVI - 5.3 V DC Input Voltage - Rack-mountable
Specifications
KVM Technology
Analog
Receiver Width
2.18"
Transmitter Depth
7.95"
Transmitter Height
0.98"
Transmitter Width
3.43"
UPC Alternates
191120107172 672792002991 803982790149 882652716436
Brand Name
ATEN
Connectivity technology
Wired
Country of origin
Taiwan
Environmental Certification
WEEE
Environmental Certification
RoHS
Form factor
Rack-mountable
Graphic Mode
WUXGA
Input voltage
5.3 V DC
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
CE600
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The CE600 is a DVI and USB based KVM Extender with RS-232 serial functionality. It allows access to a computer system from a remote console (USB keyboard monitor and mouse). Because it allows access to a computer system from a remote console the CE600 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor or the harsh environmental influence of a construction site for example. This allows users to deploy system equipment over large distances.
Maximum Operating Distance
196.85 ft
Maximum Video Resolution
1920 x 1200
Microphone
Yes
Number of Computers Supported
1
Number of Network (RJ-45) Ports
2
Number of USB Ports
3
Package Contents
- CE600 KVM Console/Extender
- 1 x KVM Cable
- 2 x Power Adapter
- 1 x Rack Mount Kit
- 1 x User Manual
- 1 x Quick Start Guide
Product Name
CE600 KVM Console/Extender
Product Type
KVM Console/Extender
