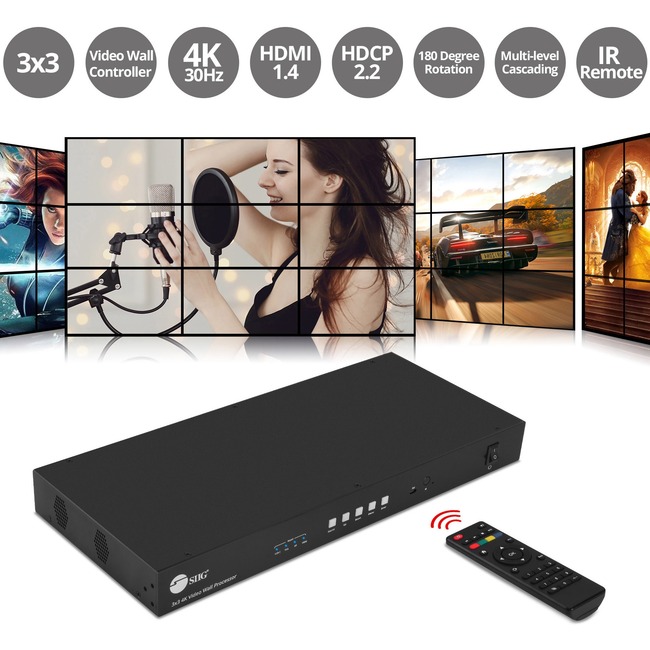

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management - Multi-level Cascading - Supports 180° HDMI image rotation
$1,704.90
  • Allows you to select and switch between 4 source devices (1 HDMI, 1 DisplayPort, 1 USB-C, and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
  • Create a 3x3 Video Wall using any source device to 9 displays
  • Supports multi-level cascading to create 3x4, 4x5, 5x6, and 10x10 (max) video walls
  • Compliant with HDCP 2.2/1.4 specification
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p
  • Supports resolution up to 4K@30Hz for USB-C, DisplayPort and HDMI inputs, 1080p for the VGA input
  • OSD allows more than 10 splicing modes, video wall setup by single click
  • Supports monitor edge adjustment
  • Supports source device switching via front panel button, remote control, RS232 command, and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AVRs
  • Moun
By:
SIIG
Manufacturer:
SIIG, Inc
Product ID:
174377
Item:
CE-H26F11-S1
UPC Code:
662774044170
Our Part #
8PW608
Condition
New
$1,704.90EA
Availability Only 10 Left In Stock
Great Deals Everyday

You may be also interested

Product description

SIIG 3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input with EDID Management - Multi-level Cascading - Supports 180° HDMI image rotation
Multi-level Cascading - Supports 180° HDMI image rotation

Specifications

UPC Alternates
662774044170
Brand Name
SIIG
Country of origin
China
Depth
10.8"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
1.7"
Input voltage
12 V DC
Input voltage
230 V AC
Input voltage
120 V AC
Limited Warranty
2 Year
Manufacturer
SIIG Inc
Manufacturer Part Number
CE-H26F11-S1
Manufacturer Website Address
http://www.siig.com
Marketing Information
3x3 4K Video Wall Processor with USB-C / DP / VGA / HDMI Input
  • Allows you to select and switch between 4 source devices (1 HDMI 1 DisplayPort 1 USB-C and 1 VGA) to display on 9 HDMI displays + 1 local HDMI out
  • Create a 3x3 Video Wall using any source device to 9 displays
  • Supports multi-level cascading to create 3x4 4x5 5x6 and 10x10 (max) video walls
  • Compliant with HDCP 2.2/1.4 specification
  • Supports 180° HDMI image rotation
  • Supports EDID management: Two default EDID: 4K30Hz & 1080p
  • Supports resolution up to 4K@30Hz for USB-C DisplayPort and HDMI inputs 1080p for the VGA input
  • OSD allows more than 10 splicing modes video wall setup by single click
  • Supports monitor edge adjustment
  • Supports source device switching via front panel button remote control RS232 command and TCP/IP control
  • USB port allows firmware upgrades when needed
  • Supports SPDIF and analog audio extraction to connect external speakers or AVRs
  • Mounting brackets included for various installation options
Number of HDMI Inputs
1
Number of HDMI Outputs
10
Package Contents
  • 3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In
  • DC 24V/2A output power adapter
  • Remote control
  • Mount bracket kit (6x screws 2x mounting ears)
  • Driver CD
  • USB cable
  • User manual
          Product color
          Black
          Product Name
          3x3 4K Video Wall Processor with USB-C/DP/VGA/HDMI In
          Product Type
          Video Wall Controller
          Weight (Approximate)
          8.16 lb
          Width
          17.2"
