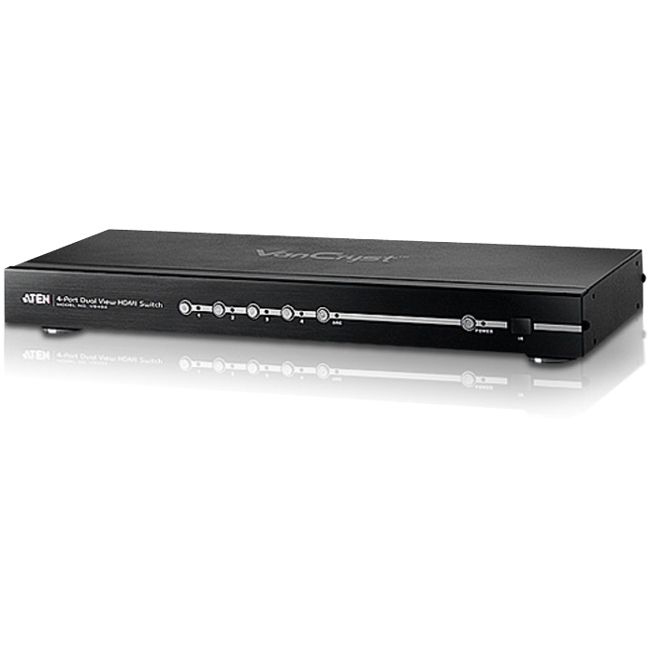

ATEN 4-Port Dual View HD Video Switch-TAA Compliant
ATEN 4-Port Dual View HD Video Switch-TAA Compliant - 1920 x 1200 - WUXGA - 1080p4 x 2
| $252.49 | Retail $376.00 |
- Allows up to four HDMI A/V sources to be connected to two HDMI displays
- HDCP 1.4 compatible, HDMI (3D, Audio Return Channel and Deep Color)
- Supports Dolby True HD and DTS HD Master Audio
- Audio Return Channel (ARC) function - connect an HDMI cable to the ARC port to send audio from your source device to your audio/video receiver
- OSD for system configuration setting and information display
- Instant switching between HDMI input sources via front panel pushbuttons or through the RS-232 serial control port
- Feature EDID Expert technology to set up different configurations via different EDID mode
- Allows users to view the HDMI input source port / device for easy selection
- Supports superior video quality - HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x 1200)
- Built-in bi-directional RS-232 serial control port for high-end system control
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
174517
Item:
VS482
UPC Code:
657248683412
Our Part #
NW5317
Condition
New
$252.49EA
$376.00
$376.00
Availability
Only 4 Left In Stock
Product description
ATEN 4-Port Dual View HD Video Switch-TAA Compliant - 1920 x 1200 - WUXGA - 1080p4 x 2
1920 x 1200 - WUXGA - 1080p4 x 2
Specifications
UPC Alternates
657248683412 672792003189 818242225330 818242590544
Brand Name
ATEN
Device Supported
Computer
Environmental Certification
WEEE
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphics Modes
WUXGA
Height
2.2"
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
VS482
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
With more and more HDMI devices entering the Home Theater market the need for simultaneous access to different HDMI A/V sources is becoming increasingly important. Now the VS482 4- Port Dual View HD Video Switch offers an easy and affordable way to add HDMI capabilities to your home theater system by allowing you to switch easily between up to four HDMI A/V sources that are connected to up to two HDMI displays.
The VS482 supports four HDMI video input sources and two HDMI output displays. It is designed for two HDTV or audio/video receiver (AVR) applications. The VS482 complies with HDMI standards and is designed to support 3D content as well as Audio Return Channel (ARC) function. The VS482 also offers instant switching and has OSD display controls for video audio system configuration and information.
Maximum Video Resolution
1920 x 1200
Number of Displays Supported
2
Number of HDMI Inputs
4
Package Contents
- 4-Port Dual View HD Video Switch
- 1x IR Remote Control Unit
- 1x Power Adapter
- 1x User Instructions
- 1x Mounting Kit
Product Name
4-Port Dual View HD Video Switch
Product Type
Video Switchbox
Scan Format
1080p
Weight (Approximate)
4.76 lb
Width
6.2"
