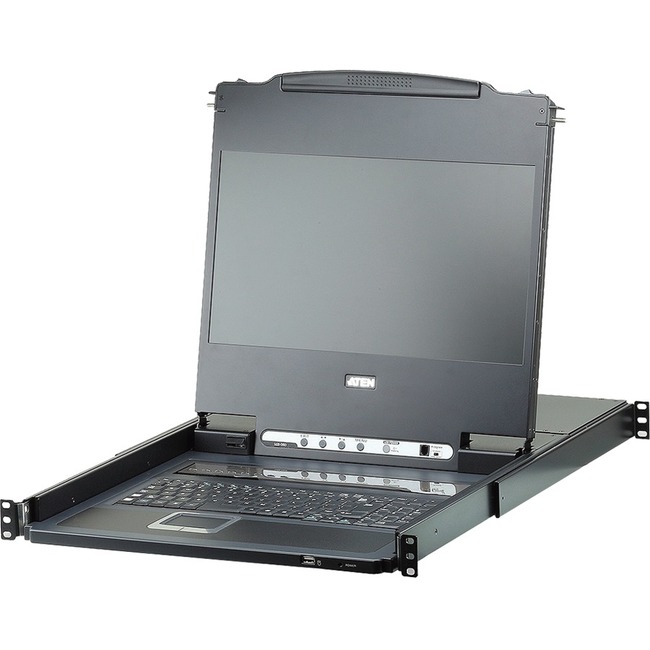

ATEN CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit-TAA Compliant
ATEN CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit-TAA Compliant - 8 Computer(s) - 17.3" LED - Full HD - 1920 x 1080 - 11 x USB - 9 x DVI - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - PC, Linux, Sun - Metal, Plastic
| $1,989.70 | Retail $2,962.00 |
- Integrated KVM with a 17.3" Widescreen DVI Full HD LCD monitor
- Single rail, sliding housing with top and bottom clearance for smooth operation in a 1U rack
- Controls eight Single Link DVI computers
- Supports an external console with DVI video port
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- KVM port extendable via one-level cascade (up to 8 additional CS1768 8-port KVM switches)
- Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
- Broadcast mode - allows you to send commands from the console to all computers to perform operations simultaneously
- Firmware upgradable
- Supports YUV video format for greater compatibility
By:
ATEN
Manufacturer:
ATEN Technology, Inc
Product ID:
174701
Item:
CL6708MW
UPC Code:
672792006845
Our Part #
4N3207
Condition
New
$1,989.70EA
$2,962.00
$2,962.00
Availability
Only 41 Left In Stock
You may be also interested
Product description
ATEN CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit-TAA Compliant - 8 Computer(s) - 17.3" LED - Full HD - 1920 x 1080 - 11 x USB - 9 x DVI - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - PC, Linux, Sun - Metal, Plastic
8 Computer(s) - 17.3" LED - Full HD - 1920 x 1080 - 11 x USB - 9 x DVI - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - 1U High - PC, Linux, Sun - Metal, Plastic
Specifications
Number of DVI Ports
9
Product Material
Plastic
Product Material
Metal
UPC Alternates
672792006845
Brand Name
ATEN
Country of origin
Taiwan
Depth
27.1"
Display Screen Type
LED
Environmental Certification
China RoHS
Environmental Certification
RoHS
Height
1.7"
Input voltage
230 V AC
Input voltage
120 V AC
Input Voltage Range
100V AC to 240V AC
Keyboard
Yes
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
CL6708MW
Manufacturer Website Address
http://www.aten.com/us/en/
Marketing Information
The CL6708MW brings additional versatility to ATEN's line of LCD KVM Switches with its native DVI compatibility. Building on ATEN's renowned space-saving approach to KVM switches - which integrates an LCD panel full keyboard and touchpad into a streamlined 1U housing - the CL6708MW is a highly-scalable LCD KVM switch which features the ability to control up to 64 computers by cascading 8 additional CS1768 8-port KVM switches.
Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video - greater clarity than typical analog interfaces - the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible making it well-suited for use with content-protected media in corporate educational and commercial settings.
To further enhance usability ATEN's LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.
Number of Computers Supported
8
Number of USB Ports
11
Package Contents
- CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
- 2 x KVM Cable (DVI-D USB Audio; 1.8m/6ft)
- 1 x Power Cord
- 1 x Firmware Upgrade Cable
- 1 x User Instructions
Platform Supported
PC
Platform Supported
Sun
Platform Supported
Linux
Pointing Device Type
TouchPad
Power consumption
29.26 W
Product Name
CL6708MW Single Rail 8-Port DVI FHD LCD KVM Switch with Standard Rack Mount Kit
Product Type
LCD Rack Console
Rack Height
1U
Screen Mode
Full HD
Screen Resolution
1920 x 1080
Screen Size
17.3"
Weight (Approximate)
28 lb
Width
18.9"
