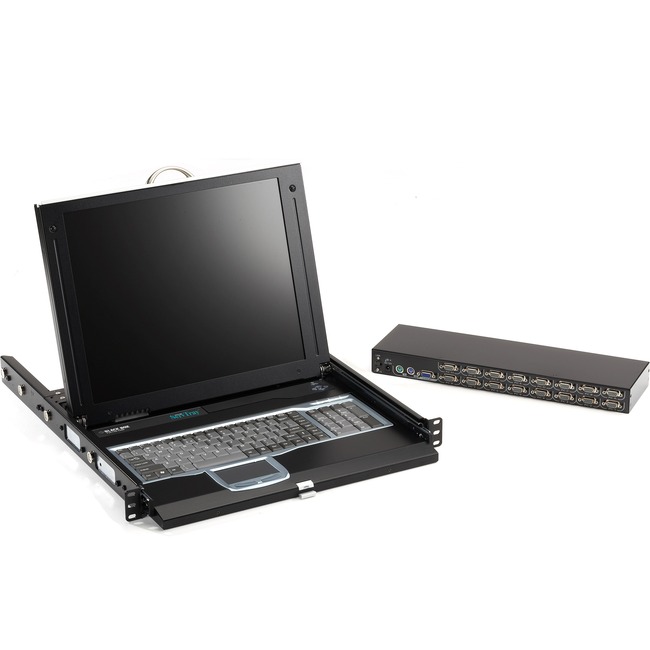

Black Box ServTray Complete, 17" , 16-Port KVM Switch Module, USB and PS/2
Black Box ServTray Complete, 17" , 16-Port KVM Switch Module, USB and PS/2 - 16 Computer(s) - 17" LCD - 1280 x 1024PS/2 PortUSB - 1 - Keyboard - 1U High - TAA Compliant
| $1,740.67 | Retail $1,893.68 |
- 1U 17" LCD Console Unit
- Built-in 16-Port VGA KVM Switch
- Support for VGA and DisplayPort Video, with either USB or PS/2 Keyboard & Mouse
- Supports video resolutions up to 1280x1024 at 60 Hz
- Pull-out tray with an attractive front panel to conceal the unit when not in use
- 22.75" long Universal Rear Rail
- Autosensing 100- to a 240-VAC power supply
- Kit does not include CPU Cables
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
175587
Item:
KVT417A-16UV-R2
UPC Code:
822088077862
Our Part #
8RK534
Condition
New
$1,740.67EA
$1,893.68
$1,893.68
Availability
Only 4 Left In Stock
You may be also interested
Product description
Black Box ServTray Complete, 17" , 16-Port KVM Switch Module, USB and PS/2 - 16 Computer(s) - 17" LCD - 1280 x 1024PS/2 PortUSB - 1 - Keyboard - 1U High - TAA Compliant
16 Computer(s) - 17" LCD - 1280 x 1024PS/2 PortUSB - 1 - Keyboard - 1U High - TAA Compliant
Specifications
Number of Proprietary Ports
1
UPC Alternates
822088077862
Brand Name
Black Box
Certifications & Standards
- CE
- FCC
- UL
- TUV
- TAA
Country of origin
Taiwan
Depth
39.5"
Display Screen Type
LCD
Environmental Certification
RoHS
Environmental Certification
WEEE
Height
1.8"
Input voltage
12 V DC
Keyboard
Yes
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
KVT417A-16UV-R2
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
The ServTray Complete adds an integral KVM switch to its keyboard monitor and mouse and packs it all into only 1U of rack space. It mounts on standard 19" rails in any standard server cabinets and enables you to manage VGA ports PS/2 or USB servers or a combination of the two. If you are looking for a way to make your server room even more functional without sacrificing valuable space you've found it.
Save space increase efficiency
Designed for heavy-duty use the ServTray Complete can replace that bulky local workstation you've been using. Just slide out the drawer and open the flat-screen monitor.
The ServTray Complete features a full-sized 105-key keyboard - no trying to type on tiny keys too small for your fingertips. The touchpad mouse includes an ergonomic hand rest.
When you're done simply slide it back in place. The front panel conceals the unit when not in use.
Choose the size that's right for you.
This ServTray Complete model comes with a 17" screen and a 16-port KVM switch module.
Models with 15" or 19" monitors and single- or 8-port KVM switching modules are also available.
Easy mounting
The ServTray Complete includes a universal rear rail kit which mounts the ServTray on the front and rear rails with a depth of 23.7" to 45.3". That's rail depth not total cabinet depth so if you have extra deep cabinets the ServTray will still fit as long as the rail depth is within limits.
Both ServTray and its switch module are powered through an autosensing 100- to 240-VAC power supply that plugs right into the nearest power strip or PDU.
Number of Computers Supported
16
Package Contents
- ServTray Complete 17" 16-Port KVM Switch Module USB and PS/2
- KVM Module with Power Supply
- Universal Rear Rail Kit
- 2 x Brackets
- 2 x Extenders
- 8 x Screws
- 10 x 0.19" x 0.43" (0.5 cm x 1.1 cm) Screws
- 10 x 0.12" x 0.24" (0.3 cm x 0.6 cm) Screws
- User's Guide
Platform Supported
PC
Pointing Device Type
TouchPad
Product Line
ServTray
Product Name
ServTray Complete 17" 16-Port KVM Switch Module USB and PS/2
Product Type
LCD Rack Console
Rack Height
1U
Screen Resolution
1280 x 1024
Screen Size
17"
Weight (Approximate)
22.93 lb
