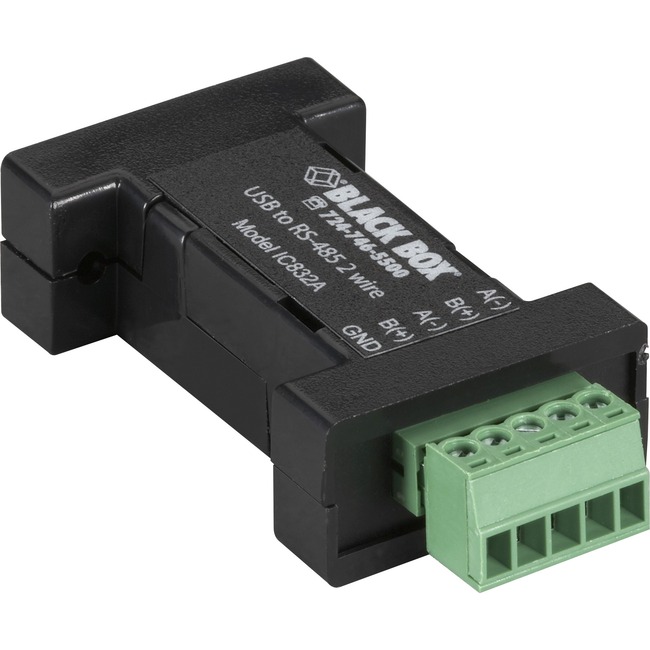

Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, Terminal Block)
Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, Terminal Block) - 1 x Type B USB 2.0 USB Female - 1 x Terminal Block - TAA Compliant
| $127.00 | Retail $129.95 |
- Use legacy serial devices with PC and laptop USB ports.
- Add a COM port to your PC or laptop.
- Supports USB 1.0, 1.1, and 2.0 (12 Mbps).
- Powered from the USB interface
- RS485 baud rates up to 921 Kbps.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
176615
Item:
IC832A
UPC Code:
007540365682
Our Part #
UP7692
Condition
New
$127.00EA
$129.95
$129.95
Availability
Only 1 Left In Stock
Product description
Black Box DB9 Mini Converter (USB to Serial), USB/RS-485 (2-wire, Terminal Block) - 1 x Type B USB 2.0 USB Female - 1 x Terminal Block - TAA Compliant
1 x Type B USB 2.0 USB Female - 1 x Terminal Block - TAA Compliant
Specifications
Connector on First End Details
1 x Type B USB 2.0 USB Female
Connector on Second End Details
1 x Terminal Block
Connector Type on First End
USB 2.0 Type B - Female
Connector Type on Second End
Terminal Block
UPC Alternates
007540365682 700604198287 818289542582 818290007636 822088067085 993245706373 997248975606
Adapter Type
Terminal Block/USB
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
United States
Depth
1.3"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Height
0.6"
Limited Warranty
5 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
IC832A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
- Powered from the USB interface.
- Includes 3-ft. (0.9-m) USB cable.
USB is the connectivity standard for today's PCs replacing familiar serial ports. However many commercial and industrial devices still use RS-232 RS-422 or RS-485 interfaces. To connect these devices to modern PCs you need simple and reliable converters.
The Black Box Mini USB-to-Serial Converter offers USB-to-serial conversion in a space saving package. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The serial device will show up as an additional COM port in the Windows Device Manager.
RS-485 (two- and four-wire)
- Support TDA TDB RDA RDB and GND.
- Baud rates up to 921 Kbps.
- Use on RS-485 2-wire or RS-422/485 4-wire networks.
- Support Send Data Control (SDC).
RS-232
- Full handshake support (TD RD RTS CTS DTR DSR DCD RI GND).
- Baud rates up to 460 Kbps.
Package Contents
- DB9 Mini Converter (USB to Serial) USB/RS-485 (2-wire Terminal Block)
- 1m USB Cable
Product Name
DB9 Mini Converter (USB to Serial) USB/RS-485 (2-wire Terminal Block)
Product Type
Data Transfer Adapter
Width
2.3"
