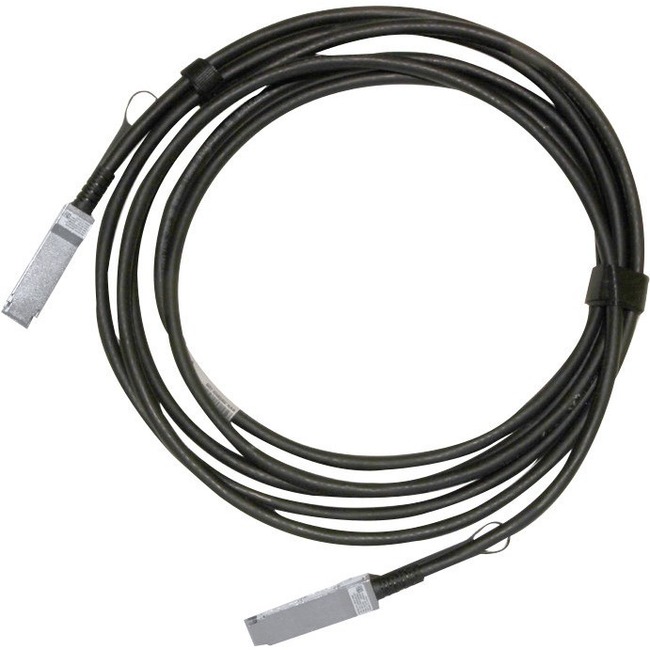

Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable
Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable - 16.40 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
| $377.81 | Retail $383.00 |
- Up to 100Gb/s data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2 C management interface
By:
Mellanox
Manufacturer:
NVIDIA Corporation
Product ID:
177805
Item:
MCP1600-E005E26
Our Part #
3AP913
Condition
New
$377.81EA
$383.00
$383.00
Availability
Only 20 Left In Stock
You may be also interested
Product description
Mellanox 100Gb/s QSFP28 Direct Attach Copper Cable - 16.40 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
16.40 ft QSFP28 Network Cable for Network Device - First End: 1 x QSFP28 Network - Second End: 1 x QSFP28 Network - 100 Gbit/s - LSZH - 26 AWG - Black
Specifications
Connector on First End Details
1 x QSFP28 Network
Connector Type on First End
QSFP28 Network
Jacket Material
Low Smoke Zero Halogen
Product Material
Copper
American Wire Gauge
26 AWG
Brand Name
Mellanox
Cable length
16.40 ft
Cable type
QSFP28
Data transfer rate
100 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Halogen Free
Features
Bendable
Features
Passive
Features
Lead-free
Jacket Type
LSZH
Limited Warranty
1 Year
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MCP1600-E005E26
Manufacturer Website Address
http://www.nvidia.com
Marketing Information
Mellanox® MCP1600-E0xxEy DAC cables are high speed cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Product color
Black
Product Line
LinkX
Product Name
100Gb/s QSFP28 Direct Attach Copper Cable
Product Type
Network Cable
