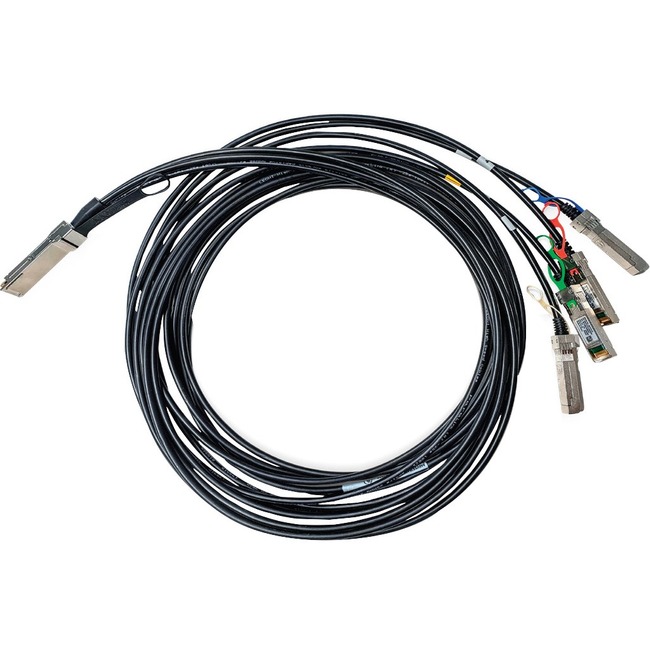

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable - 6.56 ft QSFP56/SFP56 Network Cable for Network Device - Second End: 4 x SFP56 Network - 200 Gbit/s - Splitter Cable - LSZH - 26 AWG - Black
| $243.13 | Retail $338.00 |
- 200GbE to 4x50GbE data rate
- IEEE 802.3cd PAM4 200GAUI-4,100GAUI-2 and 50GAUI-1 compliant
- SFF-8636 compliant C management interface
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- BER (Bit Error Rate) better than 1E-15 with Mellanox end-to-end interconnect
- Hot pluggable
- RoHS compliant
- Low Smoke Zero Halogen (LSZH) jacket
- LF (Lead Free) HF (Halogen Free) PCB
By:
Mellanox
Manufacturer:
NVIDIA Corporation
Product ID:
59572
Item:
MCP7H70-V002R26
Our Part #
07HX62
Condition
New
$243.13EA
$338.00
$338.00
Availability
Only 4 Left In Stock
Product description
Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable - 6.56 ft QSFP56/SFP56 Network Cable for Network Device - Second End: 4 x SFP56 Network - 200 Gbit/s - Splitter Cable - LSZH - 26 AWG - Black
6.56 ft QSFP56/SFP56 Network Cable for Network Device - Second End: 4 x SFP56 Network - 200 Gbit/s - Splitter Cable - LSZH - 26 AWG - Black
Specifications
Color Details
Black - Cable
Connector on First End Details
1 x QSFP56 Network
Connector on Second End Details
4 x SFP56 Network
Connector Type on First End
QSFP56 Network
Connector Type on Second End
SFP56 Network
Material Details
Copper - Cable
Number of Pairs
4
Product Material
Copper
American Wire Gauge
26 AWG
Brand Name
Mellanox
Cable Characteristic
Splitter Cable
Cable length
6.56 ft
Cable type
QSFP56/SFP56
Data transfer rate
200 Gbit/s
Device Supported
Network Device
Environmental Certification
RoHS
Environmentally Friendly
Yes
Features
Bendable
Features
Passive
Features
Lead-free
Features
Halogen Free
Jacket Type
LSZH
Limited Warranty
1 Year
Manufacturer
NVIDIA Corporation
Manufacturer Part Number
MCP7H70-V002R26
Manufacturer Website Address
http://www.nvidia.com
Marketing Information
Mellanox® MCP7H70-V0xxRyy DAC splitter cables are a high speed cost-effective 200GbE to 4x50GbE Ethernet connectivity solution designed to meet the growing needs for higher bandwidth in data centers.
MCP7H70-V0xxRyy cables provide connectivity between systems with a QSFP56 port on one side and up to four different SFP56 ports on the other side. The cable connects data signals from each of the four copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
MCP7H70-V0xxRyy cables provide connectivity between systems with a QSFP56 port on one side and up to four different SFP56 ports on the other side. The cable connects data signals from each of the four copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience performance and durability.
Product color
Black
Product Line
LinkX
Product Name
200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
Product Type
Network Cable
