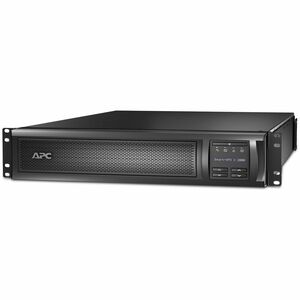

APC by Schneider Electric Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
APC by Schneider Electric Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R
| $1,992.41 | Retail $2,790.00 |
- Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms - Provides notification of changing utility power and UPS power conditions
- Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Boost and Trim Automatic Voltage Regul
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
62102
Item:
SMX2000RMLV2U
UPC Code:
088021234833
Our Part #
2P9891
Condition
New
$1,992.41EA
$2,790.00
$2,790.00
Availability
Only 167 Left In Stock
Product description
APC by Schneider Electric Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS - 2U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R
2U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 1 x NEMA L5-20R, 3 x NEMA 5-15R, 3 x NEMA 5-20R
Specifications
Load Capacity (VA)
1920 VA
Load Capacity (W)
1800 W
Number of Battery & Surge Outlets
7
Receptacle Detail
3 x NEMA 5-20R
Receptacle Detail
3 x NEMA 5-15R
Receptacle Detail
1 x NEMA L5-20R
UPC Alternates
643749352117 731304268536 777786275228 818214614681
UPC Alternates
088021234833 643749352117 731304268536 777786275228 818214614681 818216962896
Waveform Type
Sine Wave
Backup/Run Time (Full Load)
11 Minute
Backup/Run Time (Half Load)
28 Minute
Battery Characteristics
Maintenance-free Sealed Spill-proof
Battery Chemistry
Lead Acid
Brand Name
APC by Schneider Electric
Certifications & Standards
- BSMI
- CSA
- EN 50091-2
- EN 55022 Class A
- FCC Part 15 Class A
- NOM
- TUV
- UL 1778
- VCCI Class A
- UL 1449
Depth
26.3"
Environmental Certification
RoHS
Environmental Certification
REACH
Form factor
Rack-mountable
Height
3.3"
Hot Swappable
Yes
Input voltage
110 V AC
Limited Warranty
3 Year
Load Capacity
1920 VA/1800 W
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX2000RMLV2U
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
Output voltage
120 V AC
Package Contents
Plug/Connector Type
NEMA 5-20P
Product color
Black
Product Family
Smart-UPS X
Product Line
Smart-UPS
Product Name
Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
Product Series
X
Product Type
Line-interactive UPS
Rack Height
2U
Receptacle Type
NEMA 5-15R
Receptacle Type
NEMA 5-20R
Receptacle Type
NEMA L5-20R
Total Number of Expansion Slots
1
Transfer Time
4 ms
Typical Battery Recharge Time
3 Hour
Weight (Approximate)
84.77 lb
Width
17"
