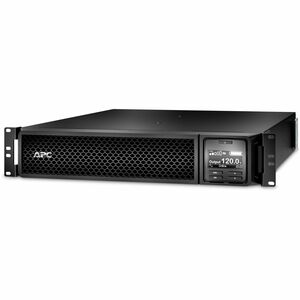

APC by Schneider Electric Smart-UPS SRT 10000VA 208V TAA
APC by Schneider Electric Smart-UPS SRT 10000VA 208V TAA - Rack-mountable - 1.50 Hour Recharge - 3.70 Minute Stand-by - 230 V AC Input - 208 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-30R, 4 x NEMA L6-20R - TAA Compliant
| $11,032.63 | Retail $14,795.00 |
- Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
- Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
By:
APC by Schneider Electric
Manufacturer:
Schneider Electric Sa
Product ID:
62312
Item:
SRT10KXLTUS
UPC Code:
731304340454
Our Part #
5HM216
Condition
New
$11,032.63EA
$14,795.00
$14,795.00
Availability
Currently out of stock
You may be also interested
Product description
APC by Schneider Electric Smart-UPS SRT 10000VA 208V TAA - Rack-mountable - 1.50 Hour Recharge - 3.70 Minute Stand-by - 230 V AC Input - 208 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-30R, 4 x NEMA L6-20R - TAA Compliant
Rack-mountable - 1.50 Hour Recharge - 3.70 Minute Stand-by - 230 V AC Input - 208 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-30R, 4 x NEMA L6-20R - TAA Compliant
Specifications
Number of Battery & Surge Outlets
6
Receptacle Detail
4 x NEMA L6-20R
Receptacle Detail
1 x Hard Wire 3-wire (2PH + G)
Receptacle Detail
2 x NEMA L6-30R
UPC Alternates
731304340454
Waveform Type
Sine Wave
Application/Usage
Industrial
Application/Usage
Server
Application/Usage
Voice/Data Network
Application/Usage
Medical Equipment
Backup/Run Time (Full Load)
3.70 Minute
Backup/Run Time (Half Load)
11.40 Minute
Battery Chemistry
Lead Acid
Brand Name
APC by Schneider Electric
Depth
28.2"
Environmental Certification
REACH
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Height
17"
Input voltage
230 V AC
Input Voltage Range
160 V AC - 275 V AC
Limited Warranty
3 Year
Load Capacity
10000 VA
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SRT10KXLTUS
Manufacturer Website Address
http://www.schneider-electric.com
Marketing Information
High density double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density true double-conversion on-line power protection for servers voice / data networks medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours not minutes Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments including very wide input voltage window extremely tight output voltage regulation frequency regulation internal bypass and input power factor correction.
Network Management
SNMP Manageable
Output voltage
208 V AC
Package Contents
Plug/Connector Type
Hard Wire 3-wire (2PH + G)
Product color
Black
Product Line
Smart-UPS
Product Name
Smart-UPS SRT 10000VA 208V TAA
Product Type
Double Conversion Online UPS
Product Type
Dual Conversion Online UPS
Receptacle Type
NEMA L6-30R
Receptacle Type
NEMA L6-20R
Typical Battery Recharge Time
1.50 Hour
Weight (Approximate)
246 lb
Width
10.4"
