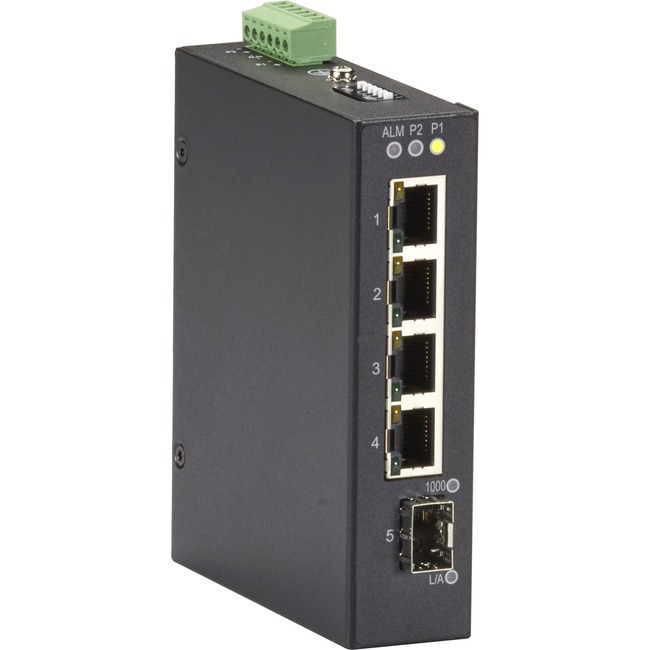

Black Box Industrial Gigabit Ethernet Switch - Extreme Temperature, 5-Port
Black Box Industrial Gigabit Ethernet Switch - Extreme Temperature, 5-Port - 4 Ports - Gigabit Ethernet - 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 1 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 1 Year Limited Warranty
| $174.16 | Retail $209.88 |
- One SFP port and 4 10-/100-/1000-Mbps RJ45 switch ports.
- Suitable for dusty or dirty environments with a temperature range between -40 and +167� F (-40 to +75� C).
- 12-58VDC power input.
- Includes DIN rail mount kit.
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
63855
Item:
LIG401A
UPC Code:
818275209291
Our Part #
4AV391
Condition
New
$174.16EA
$209.88
$209.88
Availability
Only 26 Left In Stock
Product description
Black Box Industrial Gigabit Ethernet Switch - Extreme Temperature, 5-Port - 4 Ports - Gigabit Ethernet - 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 1 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 1 Year Limited Warranty
4 Ports - Gigabit Ethernet - 1000Base-X - TAA Compliant - 2 Layer Supported - Modular - 1 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable, Wall Mountable - 1 Year Limited Warranty
Specifications
Number of Total Expansion Slots
1
Total Number of Network Ports
4
UPC Alternates
818275209291 822088079552
Additional Information
This industrial switch does not include a power supply. Use it with the MDR-40-12 MDR-40-24 SDR-120-48 or the SDR-240-48.
Brand Name
Black Box
Country of origin
Taiwan
Depth
3.5"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
Expansion Slot Type
SFP
Form factor
DIN Rail Mountable
Form factor
Wall Mountable
Height
4.4"
Layer Supported
2
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
LIG401A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Reliable and scalable.
The very reliable LIG401A Industrial Ethernet Switch (4) 10/100/1000-Mbps (1) GE SFP is designed for the far edges of your network. Use it in harsh indoor environments with temperature extremes of -40° to +75°C such as loading docks or monitoring stations. This rugged switch comes in an IP31-rated enclosure that can be DIN-rail or wall mounted.
The Gigabit Ethernet SFP port gives you networking flexibility and scalability. You can extend your network over multimode or single-mode fiber at distances up to 80 kilometers depending on the SFP you choose. Black Box SFPs are recommended.
For redundancy the switch has two DC power inputs. If one power source fails the switch automatically falls over to the second power source. In addition an alarm will alert you in case of a power failure.
For easy plug-and-play setup the 10/100/1000-Mbps Ethernet ports are autosensing with Auto MDI/MDI-X.
A multitude of applications.
This switch can be used in a wide variety of applications such as: >
Media Type Supported
Twisted Pair
Media Type Supported
Optical Fiber
Network Technology
10/100/1000Base-T
Network Technology
1000Base-X
Package Contents
- Industrial Gigabit Ethernet Switch - Extreme Temperature 5-Port
- DIN Rail Mount Kit
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Port/Expansion Slot Details
1 x Gigabit Ethernet Expansion Slot
Product Name
Industrial Gigabit Ethernet Switch - Extreme Temperature 5-Port
Product Type
Ethernet Switch
Weight (Approximate)
11.20 oz
Width
1.1"
