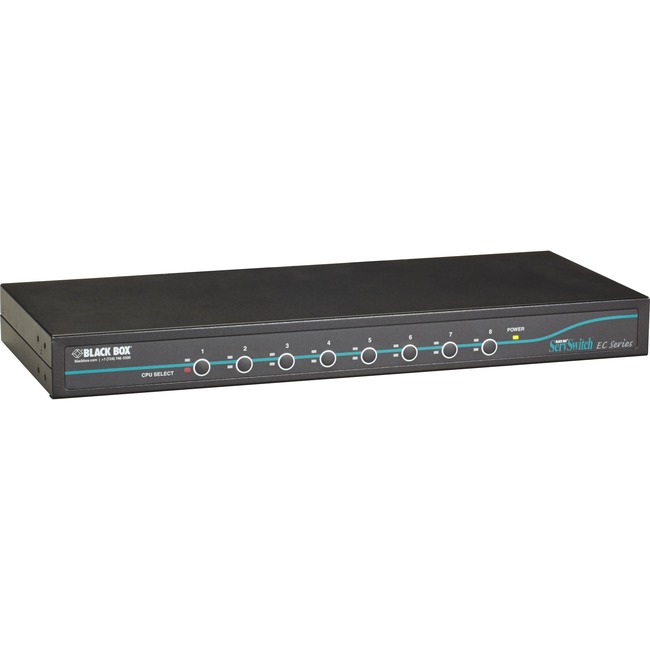

Black Box ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port
Black Box ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 10 x USB - 9 x DVI - Rack-mountable - 1U
| $867.79 | Retail $939.00 |
- Switch between sources by using this KVM Switchbox without degradation of performance and eliminate the manual work
- Quickly route data between 8 computers and 1 local users
- 1920 x 1200 resolution for high-quality video delivery
- Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
- The rack-mountable form factor provides convenient installation
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
64027
Item:
KV9508A
UPC Code:
822088072157
Our Part #
XR7417
Condition
New
$867.79EA
$939.00
$939.00
Availability
Currently out of stock
Product description
Black Box ServSwitch EC for DVI + USB Servers and DVI + USB Console, 8-Port - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 10 x USB - 9 x DVI - Rack-mountable - 1U
8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 10 x USB - 9 x DVI - Rack-mountable - 1U
Specifications
Number of DVI Ports
9
UPC Alternates
822088072157 822088072164
Brand Name
Black Box
Country of origin
Taiwan
Depth
7"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphic Mode
WUXGA
Height
1.8"
Input voltage
9 V DC
Input voltage
230 V AC
Input voltage
120 V AC
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
KV9508A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Quick Facts
Further Details
- Manage up to eight servers with this simple plug-and-play KVM switch.
- Resolutions up to 1920 x 1200.
- Perfect for small server rooms.
- 8-port DVI (single link) and USB KVM switch with USB/DVI console.
Further Details
- Choose the console mode by sliding a switch on the back panel.
- Save rack space-only 1U high!
- Supports Microsoft® IntelliMouse® (Pro).
- Operating system independent and transparent to all applications.
- Switch manually or use autoscan which selects servers sequentially.
- Save and store keyboard settings while switching.
- Hot-pluggable keyboard/mouse ports.
- Plug-and-play configuration.
- DDC2B compatible.
Tight quarters.
Ideal for applications where you have a limited amount of space the 1U-high 8-port DVI switch can be used on the desktop or mounted in a rack or cabinet.
Very switchable.
Switch between servers using front-panel buttons or hotkeys. Or you select the Autoscan function for automatic switching the ServSwitch EC will scan and switch between servers one by one at an interval that you determine. When Autoscan detects any keyboard or mouse activity it suspends the scanning until activity stops and then resumes with the next computer in sequence.
Set it and forget it.
System settings are stored in nonvolatile memory so you don't have to worry about a power outage wiping out your information. The ServSwitch EC also saves your keyboard settings for each server and restores them when you come back to that machine.
Maximum Operating Distance
15 ft
Maximum Video Resolution
1920 x 1200
Minimum Scan Interval
3 Second
Number of Computers Supported
8
Number of USB Ports
10
Package Contents
- ServSwitch EC for DVI + USB Servers and DVI + USB Console 8-Port
- 1 x AC Power Adapter
- 1 x 6-ft. Power Cable
- Set of (4) Foot Pads
- 2 X Mounting Brackets
- Assortment Of Screws
- User's Manual
Packaged Quantity
1
Platform Supported
Mac
Platform Supported
PC
Product Line
ServSwitch
Product Name
ServSwitch EC for DVI + USB Servers and DVI + USB Console 8-Port
Product Type
KVM Switchbox
Rack Height
1U
Weight (Approximate)
5 lb
Width
17.3"
