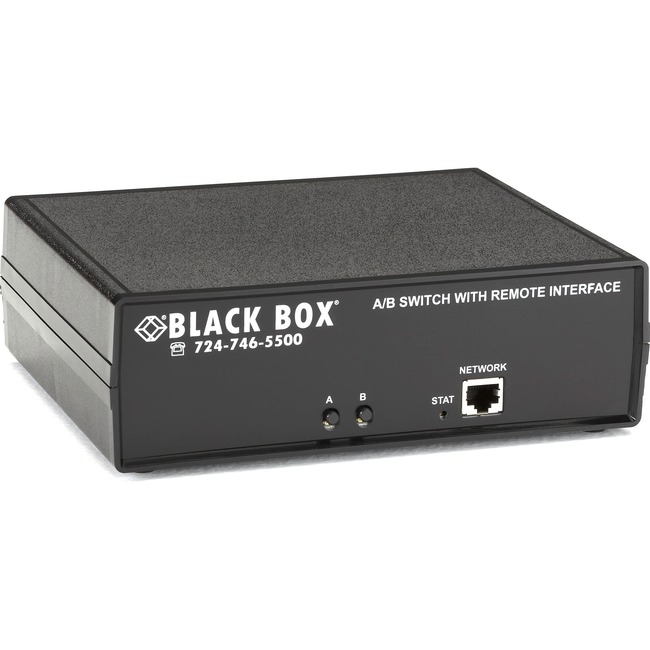

Black Box CAT6 Remotely Controlled Layer 1 A/B Switch, Latching, Ethernet, RS-232
Black Box CAT6 Remotely Controlled Layer 1 A/B Switch, Latching, Ethernet, RS-232 - 1 x Serial Port
| $584.78 | Retail $669.99 |
- Switch ports are transparent to data rates, formats, and protocols and can handle speeds up to 10 Gbps.
- Supports serial remote control and can be switched using commands over a serial RS-232 communications line.
- supports Ethernet remote control and can be switched using commands sent over an Ethernet network.
- Manual control of the switch port connection state is supported through pushbutton switches on the front of the unit.
- The connection state will be maintained if power fails or is removed.
- Once the Ethernet remote control port has been configured, the A/B Switch can be switched using SNMP commands
- supports remote telnet access, and can be controlled via a telnet session using the same commands as supported by the RS-232 serial interface
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
64041
Item:
SW1041A
UPC Code:
093007154548
Our Part #
43211601
Condition
New
$584.78EA
$669.99
$669.99
Availability
Only 25 Left In Stock
Product description
Black Box CAT6 Remotely Controlled Layer 1 A/B Switch, Latching, Ethernet, RS-232 - 1 x Serial Port
1 x Serial Port
Specifications
Input Connector Type
Serial
Number of Serial Ports
1
UPC Alternates
093007154548 822088118183
Additional Information
- Data Rate: 10/100/1000 and 10G Ethernet
- Power Input: 100-240 VAC 50-60 Hz autosensing; Output: 12 VDC
- Switching Speed Typical: 5 msec; Maximum: 10 msec
- A/B switch ports: (3) RJ-45
- Ethernet control port: (1) RJ-45 10BASE-T port for remote control interface
- Serial control port: DB9 F
- Remote control/status port: (1) 6-position terminal block
- Power: (1) 2.1 x 5.5-mm power input
Brand Name
Black Box
Certifications & Standards
- CE
- FCC
Country of origin
United States
Depth
8.1"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
2.5"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
SW1041A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Product Condition
New
Product Name
CAT6 Remotely Controlled Layer 1 A/B Switch Latching Ethernet RS-232
Product Type
Serial Switchbox
Weight (Approximate)
4 lb
Width
6.3"
