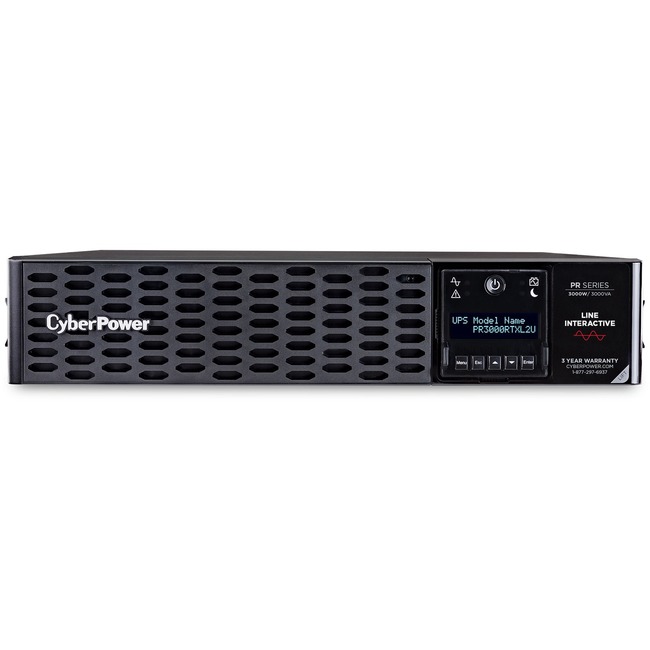

CyberPower PR3000RTXL2U New Smart App Sinewave UPS Systems
CyberPower PR3000RTXL2U New Smart App Sinewave UPS Systems - 3000VA/3000W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
| $1,551.05 | Retail $1,809.95 |
- Capacity: 3000 VA / 3000 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%
- Plug type & cord: NEMA L5-30P, 10 ft. cord
- Outlet types: 8 � NEMA 5-20R; 1 x NEMA L5-30R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
By:
CyberPower
Manufacturer:
CyberPower Systems, Inc
Product ID:
64719
Item:
PR3000RTXL2U
UPC Code:
649532620661
Our Part #
9GM187
Condition
New
$1,551.05EA
$1,809.95
$1,809.95
Availability
Only 20 Left In Stock
Product description
CyberPower PR3000RTXL2U New Smart App Sinewave UPS Systems - 3000VA/3000W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
3000VA/3000W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
Specifications
DC System Voltage
12 V DC
Directly Connected Equipment Guarantee
$400000Lifetime
Energy Saving
GreenPower UPS™ Bypass Technology
Maximum Operating Elevation
10000 ft
Maximum Storage Elevation
50000 ft
Number of Battery & Surge Outlets
9
Output Frequency
60 Hz
Overload Protection
Yes
Receptacle Detail
1 x NEMA L5-30R
Receptacle Detail
8 x NEMA 5-20R
Storage Relative Humidity
0% - 95%
Storage Temperature
5°F (-15°C) - 113°F (45°C)
UPC Alternates
649532620661
Waveform Type
Sine Wave
Additional Information
- Active PFC Compatible: Yes
- Replacement Battery Cartridge Quantity: 1
- Adjustable Voltage Range: 70 - 155 VAC
- Circuit Breaker: 30A
- Input Frequency Range: 47 Hz - 63 Hz
- Plug Style: Straight (Twist Lock)
- Automatic Voltage Regulation: Double Boost
- On Battery Frequency: 50/60 Hz ± 1%
- Output Power Factor: 1
- Overload Protection: Internal Circuitry Limiting
- Network Protection RJ45: 1 in / 1 out
- LCD: Multifunction LCD
- Management Cable: USB Cable
- SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
- Material of Construction: Metal
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Operating Temperature: 32 - 104 °F (0 - 40 °C)
Alarm
Overheat
Alarm
Battery Mode
Alarm
Low Battery
Alarm
Over Charge
Alarm
Overload
Application/Usage
Telecommunication
Application/Usage
VoIP
Application/Usage
Server
Application/Usage
Network Device
Application/Usage
Workstation
Backup/Run Time (Full Load)
1.70 Minute
Backup/Run Time (Half Load)
7 Minute
Battery capacity
9000 mAh
Battery Characteristics
Sealed
Battery Chemistry
Lead Acid
Battery Size
12V
Brand Name
CyberPower
Certifications & Standards
- UL1778
- VCCI
- FCC Class A
Country of origin
Philippines
Dataline Protection
RJ-45
Depth
19.7"
Environmental Certification
RoHS
Form factor
Rack/Tower
Height
3.4"
Input frequency
63 Hz
Input voltage
120 V AC
Input Voltage Range
75 V AC - 149 V AC
Limited Warranty
3 Year
Load Capacity
3000 VA
Manufacturer
CyberPower Systems Inc
Manufacturer Part Number
PR3000RTXL2U
Manufacturer Website Address
http://www.cyberpowersystems.com
Marketing Information
The PR3000RTXL2U is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology surge protection and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR3000RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR) which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel captive screws for battery panel access and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2U also has an innovative LCD panel that rotates 90° tilts for a better viewing angle and provides information on 47 different settings including UPS stats UPS setup and control management and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400000 connected equipment guarantee and a three-year warranty you can trust CyberPower's commitment to the quality of the PR3000RTXL2U.
Maximum Operating Temperature
104°F (40°C)
Network Management
SNMP/HTTP Remote Monitoring
Number of Batteries
4
Output voltage
110 V AC
Output voltage
100 V AC
Plug/Connector Type
NEMA L5-30P
Product color
Black
Product Name
Smart App Sinewave 3KVA Tower/Rack Convertible UPS
Product Type
Line-interactive UPS
Rack Height
2U
Receptacle Type
NEMA L5-30R
Receptacle Type
NEMA 5-20R
Software Included
PowerPanel® Business
Sound Emission
57.5 dB(A)
Status Indicators
- LCD Display
- Power on
- Line mode
- Battery mode
- Fault
- Night mode
- Wiring Fault
Surge energy rating
2430 J
Thermal Dissipation
35.40 W
Transfer Time
4 ms
Typical Battery Recharge Time
3 Hour
Weight (Approximate)
75.40 lb
Width
17.1"
