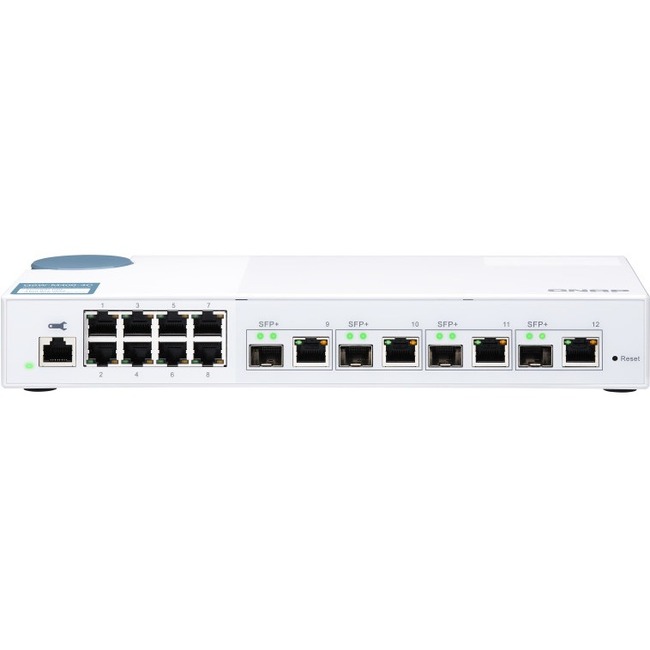

QNAP QSW-M408-4C Ethernet Switch

Entry-level 10GbE Layer 2 Web Managed Switch for SMB Network Deployment

The QSW-M408-4C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports. Supporting Layer 2 switching and network management via a user-friendly web user interface the QSW-M408-4C offers flexible deployment in hybrid high-speed network environments and provides an entry-level network management solution that is usable even by non-IT professionals. The QSW-M408-4C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with existing Cat 5e and 6a cables. With its high performance user-friendly management features and desktop size the QSW-M408-4C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price while optimizing network bandwidth and ensuring network maintenance security.

• The QSW-M408-4C is equipped with four 10GbE SFP+/ RJ45 combo ports and eight Gigabit ports. Compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M) the QSW-M408-4C offers higher transmission speeds when used with existing cables.
• Featuring a user-friendly web UI the QNAP Switch System (QSS) provides an overview dashboard port management and setting guide making central network management intuitive and easy.
• The QSW-M408-4C provides Layer 2 management features such as LACP VLAN ACL and LLDP for IT administrators to efficiently control the network bandwidth and enhance security.
• The QSW-M408-4C is one the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). You can easily and efficiently deploy small/medium-scale networks that support expansion redundancy and loop prevention.
• Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode the QSW-M408-4C avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.
• QSS (QNAP Switch System) helps administrators update firmware with just one click ensuring network security.

Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports

The QSW-M408-4C provides four 10GbE SFP+/RJ45 combo ports and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 5 or 5e cabling. The switching capacity of QSW-M408-4C is 96Gbps guaranteeing the full potential of each port.

QSS: Intuitive Network Management Software with Web GUI

The QSW-M408-4C uses the QNAP Switch System (QSS) which features an easy-to-use Web GUI with value-added functions to simplify network set up and management.

Use the at-a-glance major functions flat control layers and one-click login to simplify set up and management.

The visual illustration matches physical ports for greater usability.

With the setting guide status chart reference online firmware update the learning and management costs are greatly reduced.

• QSW-M408-4C Ethernet Switch
• Power Cord
• Power Adapter
• Quick Installation Guide (QIG)
