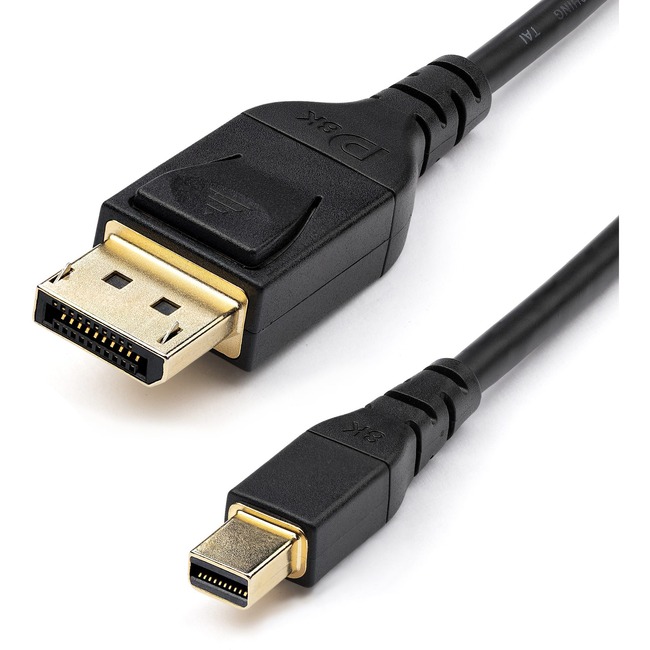

StarTech.com 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord
StarTech.com 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord - 3.3ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio - Strain relief absorbs bend stress | Slim 34 AWG cable - Works w/ mDP 1.2/Thunderbolt 2 hosts - Nvidia/AMD video cards
| $26.17 |
- mDP to DisplayPort 1.4 CABLE: 3.3ft (1m) VESA Certified with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) w/ DSC, 4K 120Hz (3840x2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified Monitors
- RELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnection
- DURABLE: PVC jacket of this slim (outer diameter: 4.5mm) video cable (34 AWG) absorbs stress of frequent bends with strain relief protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish
- BROAD COMPATIBILITY: Works with Nvidia Quadro: P620, P600, P400, and AMD Radeon Pro: VII, SSG, WX9100/4100/3200/3100/2100, W5700/5500 & FirePro: W9100/900/600/4100; Works with mDP 1.2 and Thunderbolt 2 host device (1080p/4K)
- SPECS: 3.3ft (1m) | Black |
Manufacturer:
StarTech.com
Product ID:
66402
Item:
DP14MDPMM1MB
UPC Code:
065030891899
Our Part #
9CY471
Condition
New
$26.17EA
Availability
Only 99 Left In Stock
Product description
StarTech.com 3ft 1m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord - 3.3ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio - Strain relief absorbs bend stress | Slim 34 AWG cable - Works w/ mDP 1.2/Thunderbolt 2 hosts - Nvidia/AMD video cards
3.3ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio - Strain relief absorbs bend stress | Slim 34 AWG cable - Works w/ mDP 1.2/Thunderbolt 2 hosts - Nvidia/AMD video cards
Specifications
Jacket Material
Polyvinyl Chloride (PVC)
UPC Alternates
065030891899
American Wire Gauge
34 AWG
Cable length
3.28 ft
Cable type
DisplayPort/Mini DisplayPort
Color
Black
Compatibility
Nvidia Quadro Graphic Cards:
- P620
- P600
- P400
AMD Graphic Cards:
- Radeon Pro VII
- Radeon Pro SSG
- Radeon Pro WX9100
- Radeon Pro WX4100
- Radeon Pro WX3200
- Radeon Pro WX3100
- Radeon Pro WX2100
- Radeon Pro W5700
- Radeon Pro W5500
- FirePro W9100
- FirePro 900
- FirePro 600
- FirePro 4100
Connector on First End
1 x 20-pin DisplayPort Male DisplayPort 1.4 Digital Audio/Video
Connector on First End
DisplayPort Male Digital Audio/Video
Connector on Second End
1 x 20-pin Mini DisplayPort Male Mini DisplayPort 1.2 Digital Audio/Video
Connector on Second End
Mini DisplayPort Male Digital Audio/Video
Connector Plating
Gold
Country of origin
China
Data transfer rate
32.4 Gbit/s
Device Supported
Graphics Card
Device Supported
Audio/Video Device
Device Supported
Monitor
Device Supported
Workstation
Device Supported
Projector
Device Supported
TV
Device Supported
PC
Device Supported
MAC
Device Supported
Computer
Device Supported
Notebook
Features
Stress Resistant
Features
Strain Relief
Features
DPCP
Features
Display Stream Compression (DSC) 1.2
Features
Tarnish Resistant
Features
Latching Connector
Features
Multi-Stream Transport (MST) Support
Features
HDCP 2.2
Features
Bend Resistant
Features
Forward Error Correction (FEC) Support
Features
EMI Protection
Limited Warranty
Lifetime
Manufacturer
StarTech.com
Manufacturer Part Number
DP14MDPMM1MB
Manufacturer Website Address
http://www.startech.com
Marketing Information
This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end and a DP male latching connector on the other allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV monitor or projector that uses a standard DisplayPort connection.
Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly with both HDCP 2.2 and DPCP capability. The adapter cable also supports:
- Multi-Stream Transport (MST) for daisy chaining multiple monitors.
- Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
- HDR meta transport which offers a flexible metadata packet transport to support future dynamic HDR standards.
- Expanded audio transport which covers capabilities such as 32 uncompressed audio channels 1536kHz sample rate.
- Forward Error Correction (FEC) which overlays the DSC 1.2 transport addresses the transport error resiliency needed for compressed video transport to external displays.
Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems including your PC Mac and Microsoft Surface devices with mDP. For ultimate convenience this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports enabling you to connect your DP compatible displays to your mDP source. In addition this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:
- Radeon™ VII SSG WX x100 Pro and FirePro™ series.
- Nvidia Quadro P series.
Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection making it a great accessory for office or boardroom applications.
Having 34 AWG conductors and 4.5mm outer diameter this slim cable offers both flexibility and ease of connection.
The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Product Name
Mini Displayport to Displayport Cable
Product Type
A/V Cable
Shielding
Yes
Supported Resolution
7680 x 4320
