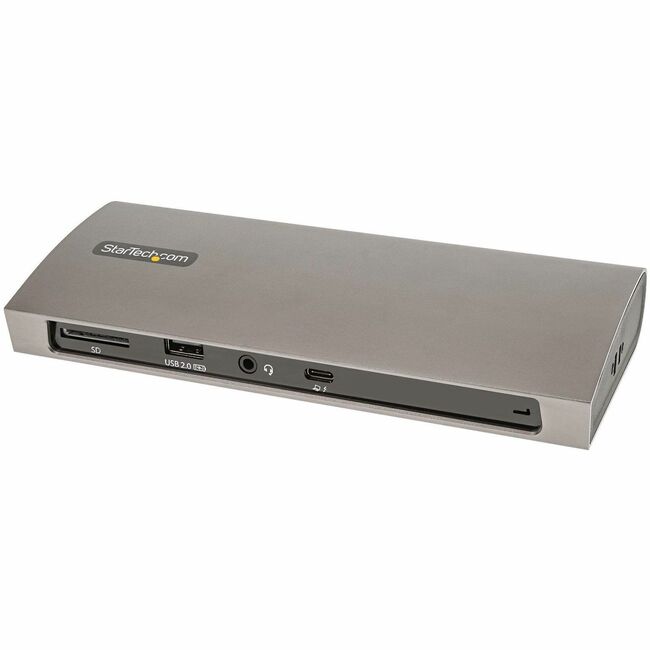

StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K / Dual Monitor 4K 60Hz, 3x TB4/USB4 ports, 4x USB-A, SD, GbE, 0.8m cable

• Intel Evo Tiger Lake (11th gen)
• Lenovo X1 Carbon 9th Gen
• Apple M1 & TB3 MacBooks (11.0 & up)

• Precision 5560
• Precision 5760
• XPS 13 9310

• EliteBook 850 G8
• ProBook 450 G8

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4 Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port and features Kensington-style security slots.

High-Performance Port Connectivity

The docking station utilizes the high throughput available to your computer's Thunderbolt 4 Thunderbolt 3 or USB4 port to provide a wide range of port connectivity to suit a variety of applications including daisy chaining up to five devices from the TB4/USB4 ports.

The dock features:

• 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4 Thunderbolt 3 and USB peripheral devices and display(s) with the added benefit of 15W (3A) device charging per each port.

• 3x USB 3.2 Gen 2 (10Gbps) Type-A portsto connect USB peripheral devices.

• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones or connecting USB Human Interface Device(s) (HID) such as a USB transceiver to minimize signal interference.

• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).

• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD SDHC and SDXC memory cards.

• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.

High-Resolution Display Connectivity

Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required each sold separately).

On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz or a single monitor with resolutions up to 8K/6K/5K/4K 60Hz.

On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K/5K/4K 60Hz.

On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz or a single monitor with resolutions up to 5K/4K 60Hz.

On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K/6K/5K/4K 60Hz.

96W USB Power Delivery Certified

The Thunderbolt 4 docking station includes a 135W power adapter and supports 96W USB power delivery. This enables the dock to charge your MacBooks and Thunderbolt 4 and USB4 Windows laptops. Plus the added power provides downstream TB4/USB4 ports with 15W (3A) for device charging and enables one of the USB-A ports to support BC 1.2 for charging tablets and smartphones.

• Docking Station
• Thunderbolt 4 Cable
• Universal Power Adapter (NA/JP)
• Quick-Start Guide
