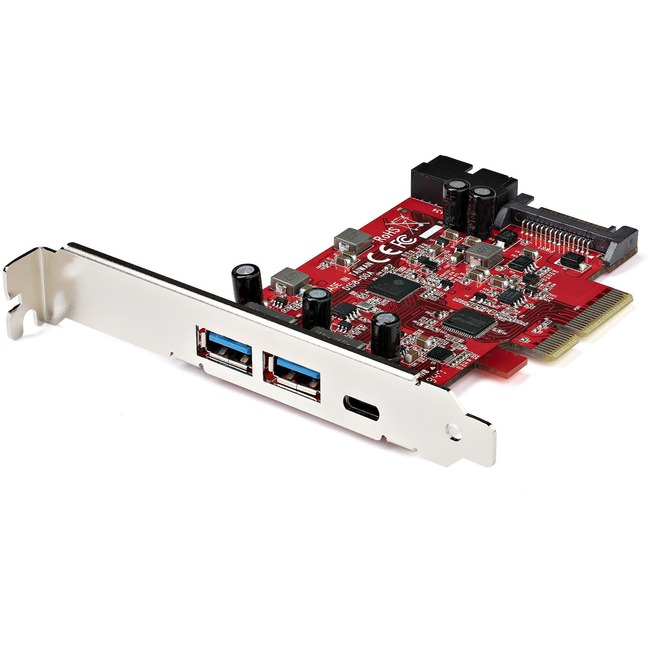

StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card, 1 USB-C/2 USB-A, Internal Header (2x 5Gbps USB), USB C PCI Express Card

StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card, 1 USB-C/2 USB-A, Internal Header (2x 5Gbps USB), USB C PCI Express Card - 5-Port USB PCIe Card (USB 3.1 Gen 2) - PCI Express expansion card; 10Gbps 2x USB Type-A/1x USB-C | Internal IDC header for 2x 5Gbps USB - Multiple INs - For USB devices and SSD/NVMe - Optional SATA power - PCI-e 3.0 x4 slot; Full/low profile brackets
$68.22Retail $70.99
  • HIGH PERFORMANCE: 5-Port USB PCIe card with ASMedia 3142 IC; 10Gbps Hub w/ 3 External Ports (2x USB-A & 1x USB-C) & two internal ports USB 5Gbps (1x Internal IDC header); Supports up to USB 3.2/3.1 Gen 2; Upgraded version to our popular card PEXUSB312EIC
  • TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices and UASP optimizing USB performance with external storage devices like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0
  • OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W via the USB Type-C port & 5V 0.9A/4.5W via each USB port
  • COMPATIBILITY: USB C add-on card installs in full or low-profile PCIe 3.0 (x4 slot) desktop/server (full-profile bracket installed, low profile bracket incl.); lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver inst
Manufacturer:
StarTech.com
Product ID:
67919
Item:
PEXUSB312A1C1H
UPC Code:
065030888325
Our Part #
9GK694
Condition
New
$68.22EA
$70.99
Availability Only 2197 Left In Stock
Great Deals Everyday

You may be also interested

Product description

StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card, 1 USB-C/2 USB-A, Internal Header (2x 5Gbps USB), USB C PCI Express Card - 5-Port USB PCIe Card (USB 3.1 Gen 2) - PCI Express expansion card; 10Gbps 2x USB Type-A/1x USB-C | Internal IDC header for 2x 5Gbps USB - Multiple INs - For USB devices and SSD/NVMe - Optional SATA power - PCI-e 3.0 x4 slot; Full/low profile brackets
5-Port USB PCIe Card (USB 3.1 Gen 2) - PCI Express expansion card; 10Gbps 2x USB Type-A/1x USB-C | Internal IDC header for 2x 5Gbps USB - Multiple INs - For USB devices and SSD/NVMe - Optional SATA power - PCI-e 3.0 x4 slot; Full/low profile brackets

Specifications

UASP Support
Yes
UPC Alternates
065030888325
Additional Information

OS Compatibility:

  • Windows® 7 8 8.1 10 11
  • Windows Server® 2008 R2 2012 R2 2016 2019
  • Linux® 3.5 and up - LTS Versions only
  • macOS Catalina (10.15)
  • macOS Mojave (10.14)
  • macOS High Sierra (10.13)
  • macOS Big Sur (11.0)
  • macOS Monterey (12.0)
  • macOS Ventura (13.0)
Country of origin
Taiwan
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Plug-in Card
Height
4.7"
Height
0.6"
Host interface
PCI Express x4
Length
4"
Length
4.5"
Limited Warranty
2 Year
Manufacturer
StarTech.com
Manufacturer Part Number
PEXUSB312A1C1H
Manufacturer Website Address
http://www.startech.com
Marketing Information

This 5-port USB 3.2 Gen 2x1 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers a USB Type-C™ port (10Gbps) two traditional USB Type-A ports (10Gbps) and a motherboard header (USB 5Gbps).

By offering a range of USB port types you can easily connect a variety of modern and legacy USB devices both inside and outside your computer.

Because the card offers a 10Gbps USB ports you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.

USB 3.2 Gen 2x1 (USB 10Gbps) is also known as USB 3.1 Gen 2 (10Gbps). USB 3.2 Gen 1x1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).

Work faster and prepare for the future

This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2x1 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps so you can spend less time waiting for file transfers to complete or for access to your external peripherals.

Connect different types of USB devices

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server using a single adapter card. The card features:

  • One external USB-C port (10Gbps)
  • Two external USB-A ports (10Gbps)
  • One internal 20-pin IDC motherboard header port that can provide two internal USB-A ports (5Gbps)

With a range of port types the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices while using only a single PCI Express expansion slot.

By adding three types of USB ports in one combo card you can free up space in your PC case and eliminate the nuisance of having different cards for different USB devices.

Ideal for building or upgrading your computer

With two internal motherboard-style headers this dynamic USB 3.1 card is perfect for upgrading or building your own computer. If your existing headers are occupied or if you don't have any motherboard headers you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades.

Connect your older USB devices

Connecting your older peripherals isn't a problem. This 5-port USB 3.2 card is backward compatible with legacy USB 3.0 2.0 and 1.1 devices so you can eliminate the added expense and aggravation of purchasing new devices.

PEXUSB312A1C1H is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: The card does not support DP alt mode or USB Power Delivery.

Marketing Information

This 5-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers a USB Type-C port (10Gbps) two traditional USB Type-A ports (10Gbps) and a motherboard header (USB 5Gbps).

By offering a range of USB port types you can easily connect a variety of modern and legacy USB devices both inside and outside your computer.

Because the card offers a 10Gbps USB ports you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.

USB 3.2 Gen 2 (USB 10Gbps) is also known as USB 3.1 (10Gbps). USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0 (5Gbps).

This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps so you can spend less time waiting for file transfers to complete or for access to your external peripherals.

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server using a single adapter card. The card features:

  • One external USB-C port (10Gbps)
  • Two external USB-A ports (10Gbps)
  • One internal 20-pin IDC motherboard header port that can provide two internal USB-A ports (5Gbps)

With a range of port types the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices while using only a single PCI Express expansion slot.

By adding three types of USB ports in one combo card you can free up space in your PC case and eliminate the nuisance of having different cards for different USB devices.

With two internal motherboard-style headers this dynamic USB 3.2 card is perfect for upgrading or building your own computer. If your existing headers are occupied or if you don't have any motherboard headers you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades.

Connecting your older peripherals isn't a problem. This 5-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1 2.0 and 1.1 devices so you can eliminate the added expense and aggravation of purchasing new devices.

PEXUSB312A1C1H is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: The card does not support DP alt mode or USB Power Delivery.

Operating System Supported
Windows 7
Operating System Supported
Windows 8
Operating System Supported
Windows Server 2008 R2
Operating System Supported
Windows 11
Operating System Supported
Mac OS X 11.0 Big Sur
Operating System Supported
Windows Server 2019
Operating System Supported
Windows 8.1
Operating System Supported
Mac OS X 10.14 Mojave
Operating System Supported
Mac OS X 13.0 Ventura
Operating System Supported
Mac OS X 10.13 High Sierra
Operating System Supported
Windows 10
Operating System Supported
Windows Server 2012
Operating System Supported
Windows Server 2016
Operating System Supported
Mac OS X 10.15 Catalina
Operating System Supported
Mac OS X 12.0 Monterey
Package Contents
  • USB 3.2 (10 Gbps) PCIe Card
  • Full-Profile Bracket (Installed)
  • Low-Profile Bracket
  • Quick-Start Guide
Package Contents
  • USB 3.2 (10 Gbps) PCIe Card
  • 1x Full-Profile Bracket (Installed)
  • 1x Low-Profile Bracket
  • 1x Quick-Start Guide
Packaged Quantity
1
Platform Supported
PC
Platform Supported
Mac
Platform Supported
Linux
Product color
Red
Product Name
USB 3.2 (10 Gbps) PCIe Card
Product Type
USB Adapter
Total Number of USB Ports
5
Weight (Approximate)
2.10 oz
Width
2.7"
Width
0.7"
