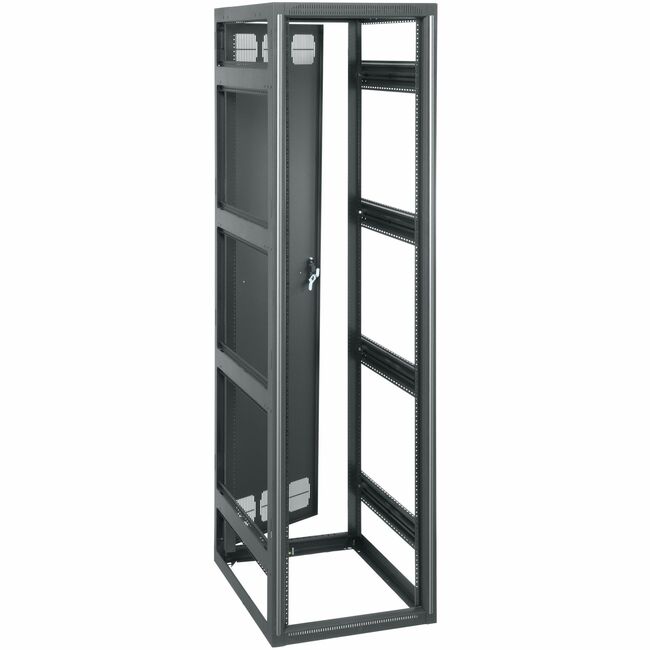

Middle Atlantic BGR Series Enclosure
Middle Atlantic BGR Series Enclosure - 45U Rack Height x 19" Rack Width x 29.40" Rack Depth - Floor Standing - Black - Steel - 12000 lb Static/Stationary Weight Capacity
| $1,318.00 | Retail $2,110.00 |
By:
Middle Atlantic
Manufacturer:
Legrand Group
Product ID:
68716
Item:
BGR-4532
UPC Code:
656747140082
Our Part #
24102001
Condition
New
$1,318.00EA
$2,110.00
$2,110.00
Availability
Currently out of stock
Product description
Middle Atlantic BGR Series Enclosure - 45U Rack Height x 19" Rack Width x 29.40" Rack Depth - Floor Standing - Black - Steel - 12000 lb Static/Stationary Weight Capacity
45U Rack Height x 19" Rack Width x 29.40" Rack Depth - Floor Standing - Black - Steel - 12000 lb Static/Stationary Weight Capacity
Specifications
Product Material
Steel
Rack Depth
29.40"
Rack Width
19"
Rail Material Gauge
11
Static/Stationary Weight Capacity
12000 lb
UPC Alternates
656747140082
Brand Name
Middle Atlantic
Certifications & Standards
- cUL
- EIA/TIA Compliant
- UL Listed
- 2007 & 2010 CBC
- 2006 2009 & 2012 IBC
- ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000
Depth
32"
Environmental Certification
RoHS
Environmental Certification
GREENGUARD
Environmentally Friendly
Yes
Features
Adjustable Mounting Rails
Features
Cable Management
Form factor
Floor Standing
Height
82.9"
Limited Warranty
Lifetime
Manufacturer
Legrand Group
Manufacturer Part Number
BGR-4532
Manufacturer Website Address
http://www.legrand.us
Marketing Information
BGR = Breakthrough Next-Generation Rack
This is the "Next Generation" Rack you have been wanting ! BGR-SA series racks have higher weight capacities provide more useable rackspace and incorporate more functionality than any other rack system on the market. Features the revolutionary patent-pending LeverLock™ system for tool free installation of cable management accessories. New options include brush grommet rear doors and problem-solving extender bays. Choose a BGR enclosure for the highest level of space efficiency and strength available and to enable the use of the latest options for installation flexibility. This stand-alone version includes fixed vented side panels.
This is the "Next Generation" Rack you have been wanting ! BGR-SA series racks have higher weight capacities provide more useable rackspace and incorporate more functionality than any other rack system on the market. Features the revolutionary patent-pending LeverLock™ system for tool free installation of cable management accessories. New options include brush grommet rear doors and problem-solving extender bays. Choose a BGR enclosure for the highest level of space efficiency and strength available and to enable the use of the latest options for installation flexibility. This stand-alone version includes fixed vented side panels.
Structural Features
- Breakthrough design provides more useable rack height - for example the 45 space version is shorter than 44 space alternative models
- Accepts patent-pending LeverLock™ system accessories for fast flexible cable management and mounting of small devices such as interface boxes power supplies and relay modules
- Unique new extender bay adds 3" of useable depth to the front or rear of the enclosure at any time. Extender bays allow the use of existing doors and can even be stacked for greater depth
- Standard front and rear adjustable wide heavy-gauge 10-32 threaded rackrail with numbered rackspace increments speeds equipment mounting
- Wide open bottom accepts multiple base options
- Finished in a durable black textured powder coat
Thermal Management
- Top options include solid vented and thermostatically controlled fan tops
- Standard vented door accepts optional doors
Cable Management
- Accepts LeverLock™ system tool free cable management accessories
- Cable entry choices include generous laser knockouts and choice of trade openings and/or grommetted pass-throughs
- The generous 21" wide top opening provides for full-width cable and conduit entry and includes vertical cable entry tie points on both sides
- Optional brush grommet rear door kit can be mounted top or bottom to provide a large cable passage with easy access to the cables without fishing
Product color
Black
Product Name
BGR Series Enclosure
Product Series
BGR
Product Type
Rack Cabinet
Rack Height
45U
Width
23"
