IOGEAR 16-Port USB PS/2 Combo KVM Switch with Cables
IOGEAR 16-Port USB PS/2 Combo KVM Switch with Cables - 16 Computer(s) - 1 Local User(s) - 2048 x 1536 - 1 x USB - Rack-mountable - 1U
| $627.08 | Retail $729.95 |
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Auto Scan Mode to monitor connected computers
- Broadcast Mode to send commands to all connected computers
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
- *Cascade up to 2 levels - control up to 256 computers from a single console
- Security - 2 level password protection for OSD
- Maximum video resolution: up to 2048 x 1536
- Supports both USB and PS/2, VGA computers
- Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals
- Rack mountable in a 19" (1U) system rack
By:
IOGEAR
Manufacturer:
IOGEAR, Inc
Product ID:
69055
Item:
GCS1716KITTAA
UPC Code:
881317509475
Our Part #
43211601
Condition
New
$627.08EA
$729.95
$729.95
Availability
Only 2 Left In Stock
Product description
IOGEAR 16-Port USB PS/2 Combo KVM Switch with Cables - 16 Computer(s) - 1 Local User(s) - 2048 x 1536 - 1 x USB - Rack-mountable - 1U
16 Computer(s) - 1 Local User(s) - 2048 x 1536 - 1 x USB - Rack-mountable - 1U
Specifications
UPC Alternates
881317509475
Brand Name
IOGEAR
Country of origin
Taiwan
Depth
6.3"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphic Mode
VGA
Graphic Mode
SVGA
Graphic Mode
QXGA
Height
1.8"
Input voltage
5.3 V DC
Limited Warranty
3 Year
Manufacturer
IOGEAR Inc
Manufacturer Part Number
GCS1716KITTAA
Manufacturer Website Address
http://www.iogear.com
Marketing Information
The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard mouse and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation eliminating the need to manually set the position with DIP switches. Additionally the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs entering hotkey combinations from the keyboard or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
Maximum Video Resolution
2048 x 1536
Minimum Scan Interval
1 Second
Number of Computers Supported
16

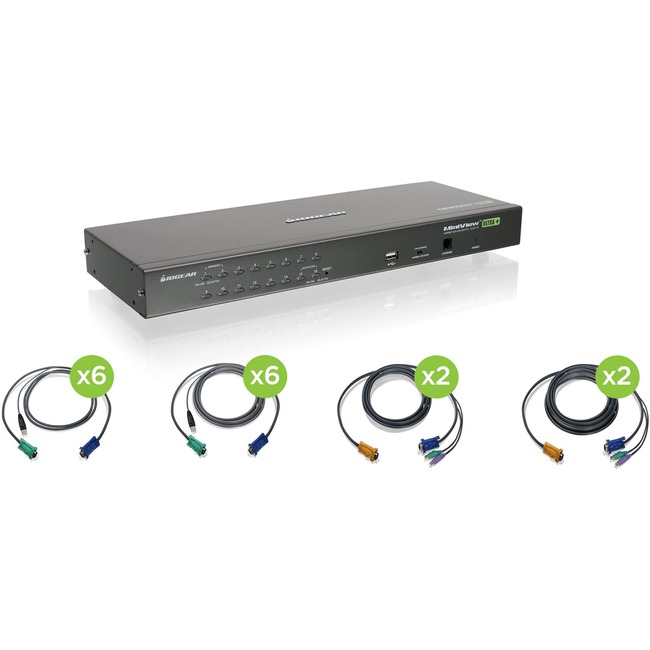

Package Contents
- 1 x GCS1716 16-Port Combo KVM w/ Standard Rack Mounting Kit
- 6 x 2M USB KVM Cable
- 6 x 3M USB KVM Cable
- 2 x 2M PS/2 KVM Cable
- 2 x 3M PS/2 KVM Cable
- 1 x Console Cable
- 1 x Cascade Cable
- 1 x Firmware Upgrade Cable
- 1 x Grounding Wire
- 1 x Foot Pad Set (4 pads)
- 1 x Power Adapter
- 1 x Installation Guide
- 1 x Warranty Card
Packaged Quantity
1
Platform Supported
Mac
Platform Supported
Linux
Platform Supported
Sun
Platform Supported
PC
Product Name
16-Port USB PS/2 Combo KVM Switch with Cables
Product Type
KVM Switchbox
Rack Height
1U
Weight (Approximate)
6.02 lb
Width
17"
