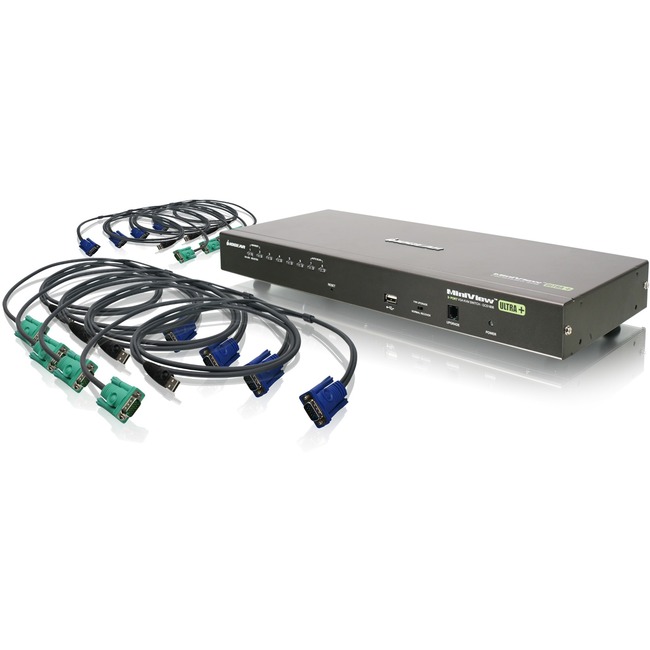

IOGEAR GCS1808KITU Combo KVM Switch
IOGEAR GCS1808KITU Combo KVM Switch - 8 x 1 - 8 x SPDB-15 Keyboard/Mouse/Video - 1U - Rack-mountable
| $344.92 | Retail $429.95 |
- Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
- Supports both USB and PS/2, VGA computers
- Auto Scan Mode to monitor connected computers
- Broadcast Mode to send commands to all connected computers
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Cascade up to 2 levels* - control up to 128 computers from a single console
- Security - 2 level password protection for OSD
- Maximum video resolution: up to 2048 x 1536
- Front USB Port - for system upgrades and shared peripherals (fully compliant with USB 1.1)
- Rack mountable in a 19" (1U) system rack
By:
IOGEAR
Manufacturer:
IOGEAR, Inc
Product ID:
69119
Item:
GCS1808KITU
UPC Code:
008813175052
Our Part #
BH3329
Condition
New
$344.92EA
$429.95
$429.95
Availability
Only 46 Left In Stock
Product description
IOGEAR GCS1808KITU Combo KVM Switch - 8 x 1 - 8 x SPDB-15 Keyboard/Mouse/Video - 1U - Rack-mountable
8 x 1 - 8 x SPDB-15 Keyboard/Mouse/Video - 1U - Rack-mountable
Specifications
UPC Alternates
008813175052 172302707908 807030489566 881317505217
Brand Name
IOGEAR
Country of origin
China
Depth
6.3"
Environmental Certification
RoHS
Environmentally Friendly
Yes
Form factor
Rack-mountable
Graphic Mode
QXGA
Height
1.8"
Input voltage
5.3 V DC
Limited Warranty
3 Year
Manufacturer
IOGEAR Inc
Manufacturer Part Number
GCS1808KITU
Manufacturer Website Address
http://www.iogear.com
Marketing Information
The GCS1808KITU KVM is a combo VGA switch that includes 8 USB KVM cables (4 x 6ft and 4 x 10ft). Access and control of up to 64 computers from a single console (keyboard mouse and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation eliminating the need to manually set the position with DIP switches. Additionally the GCS1808KITU features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
Maximum Video Resolution
2048 x 1536
Number of Computers Supported
8
Number of USB Ports
1
Package Contents
- GCS1808KITU Combo KVM Switch
- 4 x USB KVM Cables (6ft - G2L5202U)
- 4 x USB KVM Cables (10ft - G2L5203U)
- 1 x PS/2 KVM Cable (6ft - G2L5202P)
- 1 x Console Cable
- 1 x Cascade Cable
- 1 x Firmware Upgrade Cable
- 1 x Grounding Wire
- 1 x Foot Pad Set (4 Pads)
- 1 x Power Adapter
- 1 x Standard Rack Mounting Kit
- 1 x Installation Guide
- 1 x Warranty Card
Product Name
GCS1808KITU Combo KVM Switch
Product Type
KVM Switchbox
Rack Height
1U
Weight (Approximate)
5.58 lb
Width
17"
