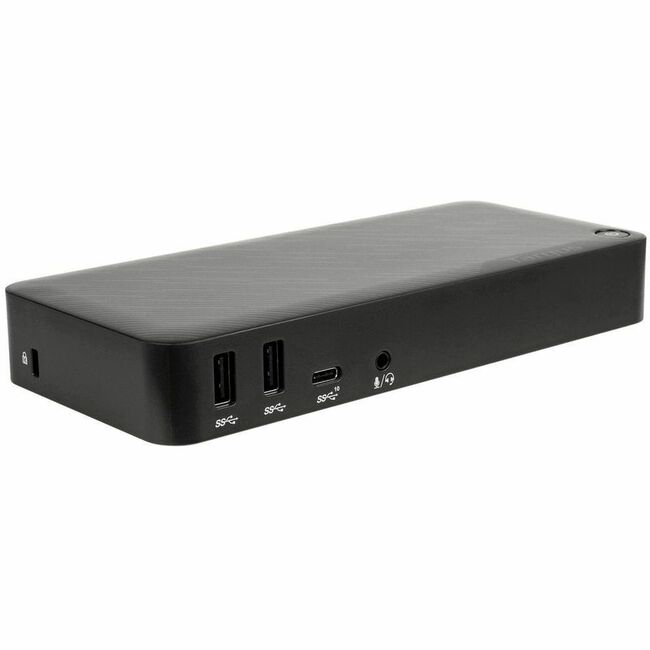

Targus DOCK430USZ Docking Station
Targus DOCK430USZ Docking Station - for Notebook/Tablet PC/Desktop PC/Smartphone/Monitor - 85 W - USB Type C - 5 x USB Ports - USB Type-C - Network (RJ-45) - HDMI - DisplayPort - Thunderbolt - Wired - TAA Compliant
| $117.88 | Retail $249.99 |
- Supports single 4K, dual 2K, or triple HD video via two DisplayPort™ 1.4 and one HDMI 2.0 monitor ports
- 5, 9, 12, 15, 20 VDC Power Delivery up to 85W
- 1 USB-C™ 3.2 Gen2 port (10Gbps)
- 1 USB 3.2 Gen1 Type-A fast-charging port
- 3 USB 3.2 Gen1 Type-A ports
- 1 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out port for mics, speakers, and earphones
- Integrated lock slot accommodates standard security locks to safeguard equipment
- Compatible with Targus VESA Mounting Bracket (ACX003GLZ, sold separately)
By:
Targus
Manufacturer:
Targus Group International
Product ID:
73599
Item:
DOCK430USZ
UPC Code:
092636336127
Our Part #
6QK532
Condition
New
$117.88EA
$249.99
$249.99
Availability
Only 16 Left In Stock
Product description
Targus DOCK430USZ Docking Station - for Notebook/Tablet PC/Desktop PC/Smartphone/Monitor - 85 W - USB Type C - 3 Displays Supported - 4K, Full HD - 3840 x 2160, 2560 x 1440, 1920 x 1080 - 5 x USB Ports - 4 x USB Type-A Ports - USB Type-A - USB Type-C - Network (RJ-45) - HDMI - DisplayPort - 0 x Mini DisplayPort - Wired - Gigabit Ethernet - Windows, ChromeOS, macOS - TAA Compliant
for Notebook/Tablet PC/Desktop PC/Smartphone/Monitor - 85 W - USB Type C - 3 Displays Supported - 4K, Full HD - 3840 x 2160, 2560 x 1440, 1920 x 1080 - 5 x USB Ports - 4 x USB Type-A Ports - USB Type-A - USB Type-C - Network (RJ-45) - HDMI - DisplayPort - 0 x Mini DisplayPort - Wired - Gigabit Ethernet - Windows, ChromeOS, macOS - TAA Compliant
Specifications
DisplayPort Version
1.4
HDMI Version
2.0
Maximum Power Supply Wattage
85 W
Number of DisplayPort Outputs
2
Number of Mini DisplayPort
0
Number of USB Type-A Ports
4
Screen Mode Supported
4K
Screen Mode Supported
Full HD
Supported Resolutions
3840 x 2160
Supported Resolutions
2560 x 1440
Supported Resolutions
1920 x 1080
UPC Alternates
092636336127 818275482076 999557093958
USB Type-C Detail
1x USB-C / 3.2 Gen 2 Port
Brand Name
Targus
Connectivity technology
Wired
Country of origin
Taiwan
Depth
1.10"
Device Supported
Notebook/Tablet PC/Desktop PC/Smartphone/Monitor
Ethernet Technology
Gigabit Ethernet
HDMI
Yes
Height
3.25"
Host interface
USB Type C
Limited Warranty
3 Year
Manufacturer
Targus Group International
Manufacturer Part Number
DOCK430USZ
Manufacturer Website Address
http://www.targus.com
Marketing Information
Create a more powerful productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems DOCK430 offers broad compatibility for a range of hosts devices and peripherals.
Enjoy crisp clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port you're able to support three monitors (1920x1080 p60) two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports 1 fast-charging) and USB-C (1x 3.2 Gen2) plus Ethernet and audio ports.
Designed for the modern workstation the dock comes equipped with a VESA bracket mounting provision which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two DisplayPort™ and One HDMI Monitor
Access the latest display technology with two DisplayPort™ and HDMI ports that creates a rich high-definition viewing experience. The USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode - and even 1920x1080 p60 with three monitors.
Enhanced Power Delivery
The USB-C™ DisplayPort™ Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5 9 12 15 and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC MacBook Chromebook and even popular Android phones.
Onboard USB 3.0 for Advanced Peripherals and Charging
Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards external drives and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone tablet or other devices powered up and ready to go.
What's in the Box
- User Guide (part #410-3897-001A)
- Dock
- Cable Input US AC cable cord set 3pins 1.8M C5 connector (part #511-0518-001A)
- USB C/M (screwed) to C/M (normal) Cable Black; 1M 5A 10Gbps (part #ACC1121GLX)
- Adapter AC to DC output: 20V 6.75A 135W (part #800-0485-001A)
Marketing Information
Create a more powerful productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems DOCK430 offers broad compatibility for a range of hosts devices and peripherals.
Enjoy crisp clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port you're able to support three monitors (1920x1080 p60) two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports 1 fast-charging) and USB-C (1x 3.2 Gen2) plus Ethernet and audio ports.
Designed for the modern workstation the dock comes equipped with a VESA bracket mounting provision which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two DisplayPort™ and One HDMI Monitor
Access the latest display technology with two DisplayPort™ and HDMI ports that creates a rich high-definition viewing experience. The USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode - and even 1920x1080 p60 with three monitors.
Enhanced Power Delivery
The USB-C™ DisplayPort™ Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5 9 12 15 and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC MacBook Chromebook and even popular Android phones.
Onboard USB 3.0 for Advanced Peripherals and Charging
Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards external drives and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone tablet or other devices powered up and ready to go.
What's in the Box
- User Guide (part #410-3897-001A)
- Dock
- Cable Input US AC cable cord set 3pins 1.8M C5 connector (part #511-0518-001A)
- USB C/M (screwed) to C/M (normal) Cable Black; 1M 5A 10Gbps (part #ACC1121GLX)
- Adapter AC to DC output: 20V 6.75A 135W (part #800-0485-001A)
Marketing Information
Create a more powerful productive workstation with the Targus USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power. Sleek and powerful this Alternate Mode hosts packs all of the ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems DOCK430 offers broad compatibility for a range of hosts devices and peripherals.
Enjoy crisp clear native video while supporting a connection up to three monitors. With two DisplayPort™ 1.4 ports and one HDMI 2.0 port you're able to support three monitors (1920x1080 p60) two monitors (2560x1440 p60) or one monitor (3840x2160 p60) and various lower resolutions. Plus connect all your favorite accessories with a combination of USB-A (4 USB 3.2 Gen1 ports 1 fast-charging) and USB-C (1x 3.2 Gen2) plus Ethernet and audio ports.
Designed for the modern workstation the dock comes equipped with a VESA bracket mounting provision which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two DisplayPort™ and One HDMI Monitor
Access the latest display technology with two DisplayPort™ and HDMI ports that creates a rich high-definition viewing experience. The USB-C™ DisplayPort™ Alt. Mode Docking Station with 85W Power supports full UHD (3840x2160 p60) resolution in single display and resolutions of up to 2560x1440 p60 in dual video mode - and even 1920x1080 p60 with three monitors.
Enhanced Power Delivery
The USB-C™ DisplayPort™ Alt. Mode Docking Station provides up to 85W of USB Type-C Power Delivery at all popular voltages including 5 9 12 15 and 20Vdc. DOCK430 will negotiate a Type-C Power Delivery contract with multiple platforms including PC MacBook Chromebook and even popular Android phones.
Onboard USB 3.0 for Advanced Peripherals and Charging
Multiple onboard USB ports make it easy to customize workspaces with the latest keyboards external drives and other essential peripherals. Efficient charging is close at hand with one powered USB 3.2 Gen1 port for keeping smartphone tablet or other devices powered up and ready to go.
What's in the Box
- User Guide (part #410-3897-001A)
- Dock
- Cable Input US AC cable cord set 3pins 1.8M C5 connector (part #511-0518-001A)
- USB C/M (screwed) to C/M (normal) Cable Black; 1M 5A 10Gbps (part #ACC1121GLX)
- Adapter AC to DC output: 20V 6.75A 135W (part #800-0485-001A)
Number of Displays Supported
3
Number of HDMI Outputs
1
Operating System Supported
Chrome OS
Operating System Supported
ChromeOS
Operating System Supported
macOS
Operating System Supported
Windows
Package Contents
- DOCK430USZ Docking Station
- User Guide
- Cable Input US AC Cable Cord Set 3pins 1.8M C5 Connector
- USB C/M (screwed) to C/M (normal) Cable Black; 1M 5A 10Gbps
- Adapter AC to DC Output: 20V 6.75A 135W
Product Name
DOCK430USZ Docking Station
Product Type
Docking Station
Total Number of USB Ports
5
Weight (Approximate)
10.08 oz
Width
7.10"
