Black Box USB 1.1 Extender - CATx, 2-Port
Black Box USB 1.1 Extender - CATx, 2-Port - Network (RJ-45) - 2 x USB
| $115.46 | Retail $131.95 |
- Reliably extend USB 1.1 signaling over CAT5 cable to remote USB devices.
- Bus powered. No external AC adapter needed at either end.
- Industrial rated for ESD immunity.
- Supports both Full-Speed (12-Mbps) and Low-Speed (1.5-Mbps) throughput.
- Works with all major operating systems (Windows®, Mac OS X®, and Linux®).
By:
Black Box
Manufacturer:
Black Box Corporation
Product ID:
73959
Item:
IC282A
UPC Code:
818215755109
Our Part #
UP7758
Condition
New
$115.46EA
$131.95
$131.95
Availability
Only 11 Left In Stock
You may be also interested
Product description
Black Box USB 1.1 Extender - CATx, 2-Port - Network (RJ-45) - 2 x USB
Network (RJ-45) - 2 x USB
Specifications
UPC Alternates
818215755109 822088068532
Additional Information

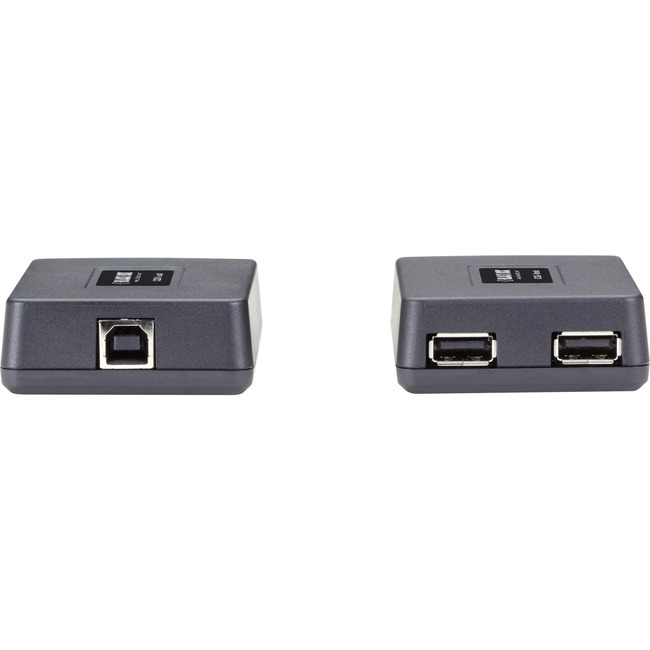

- Connectors Transmitter: (1) USB Type B F; (1) RJ-45 (CAT5 interconnect); Receiver: (2) USB Type A F (1) RJ-45 (CAT5 interconnect)
- Distance Full-Speed and Low-Speed: 130 ft. (40 m) maximum; Low-Speed: 278 ft. (85 m) maximum
- Power Transmitter: From the host device's USB interface; Receiver: From the transmitter; Available power: 400 mA shared between USB ports when transmitter is supplied with 800 mA of bus power
Brand Name
Black Box
Certifications & Standards
CE
Country of origin
China
Depth
3.3"
Environmental Certification
RoHS
Environmental Certification
WEEE
Environmentally Friendly
Yes
Height
0.9"
Limited Warranty
1 Year
Manufacturer
Black Box Corporation
Manufacturer Part Number
IC282A
Manufacturer Website Address
http://www.blackbox.com
Marketing Information
Extend two USB 1.1 peripherals beyond the 16-ft (5-m) limitation up to 328 ft (100 m) over CATx. Extend a USB connection beyond the desktop to two USB peripherals such as USB keyboards mice printers webcams interactive whiteboards and other devices. The extender can be used in in industrial control factory floor classroom or meeting room applications The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 devices.
Maximum Data Transfer Rate
1.50 MB/s
Number of USB Ports
2
Product Name
USB 1.1 Extender - CATx 2-Port
Product Type
USB Extender
Width
2.2"
