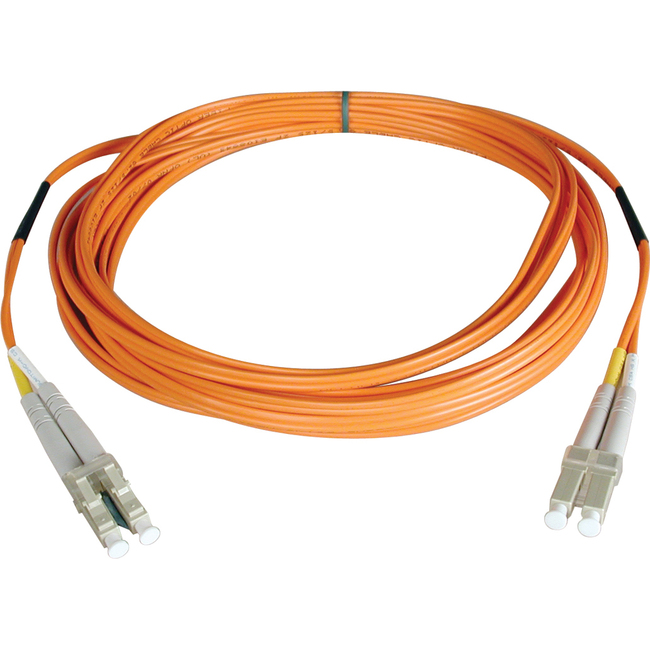

Tripp Lite 30M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 100' 100ft 30 Meter
Tripp Lite 30M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 100' 100ft 30 Meter - LC Male - LC Male - 98.43ft
| $37.21 | Retail $54.08 |
- Premium PVC multimode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Higher bandwidth optimized for Gigabit and 10Gbps networks
- Backward compatible with 62.5 micron fiber
- Built-in headroom for future applications
By:
Tripp Lite
Manufacturer:
Tripp Lite by Eaton
Product ID:
75082
Item:
N520-30M
UPC Code:
037332119483
Our Part #
C18302
Condition
New
$37.21EA
$54.08
$54.08
Availability
Only 190 Left In Stock
Product description
Tripp Lite 30M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 100' 100ft 30 Meter - LC Male - LC Male - 98.43ft
LC Male - LC Male - 98.43ft
Specifications
UPC Alternates
037332119483 373321194834 807320190202
Additional Information
- Fiber type: all glass graded index
- Core diameter: two 50+/-3 microns
- CLAD diameter: 125+/-2 microns
- Primary coating diameter: 245+/-15 microns
- Primary coating material: acrylate
- Secondary coating diameter: 900+/-50 microns
- Attenuation @850NM: 3.5DB/KM maximum @1300NM: 1.0DB/KM maximum
- Bandwidth @850NM: 220 MHz-KM minimum @1300NM: 600 MHz-KM minimum
- Numeric apeture: .275 nominal
- Proof test level: 100000 PSI
- Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Brand Name
Tripp Lite
Cable Characteristic
Patch Cable
Cable length
98.40 ft
Cable type
Fiber Optic
Certifications & Standards
- FDDI
Connector on First End
LC Male
Connector on First End
2 x LC Male
Country of origin
China
Jacket Type
Plenum
Limited Warranty
Lifetime
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N520-30M
Manufacturer Website Address
http://www.tripplite.com
Marketing Information
Tripp Lite's 30-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1 2 3 5 10 15 20 25 and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables search "N516-" and for SC-SC search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Package Contents
- Duplex Fiber Optic Patch Cable
- 30M duplex MMF cable LC/LC 50/125 fiber
Product Name
Duplex Fiber Optic Patch Cable
Product Type
Network Cable
